FRIDEN STW - Page 158

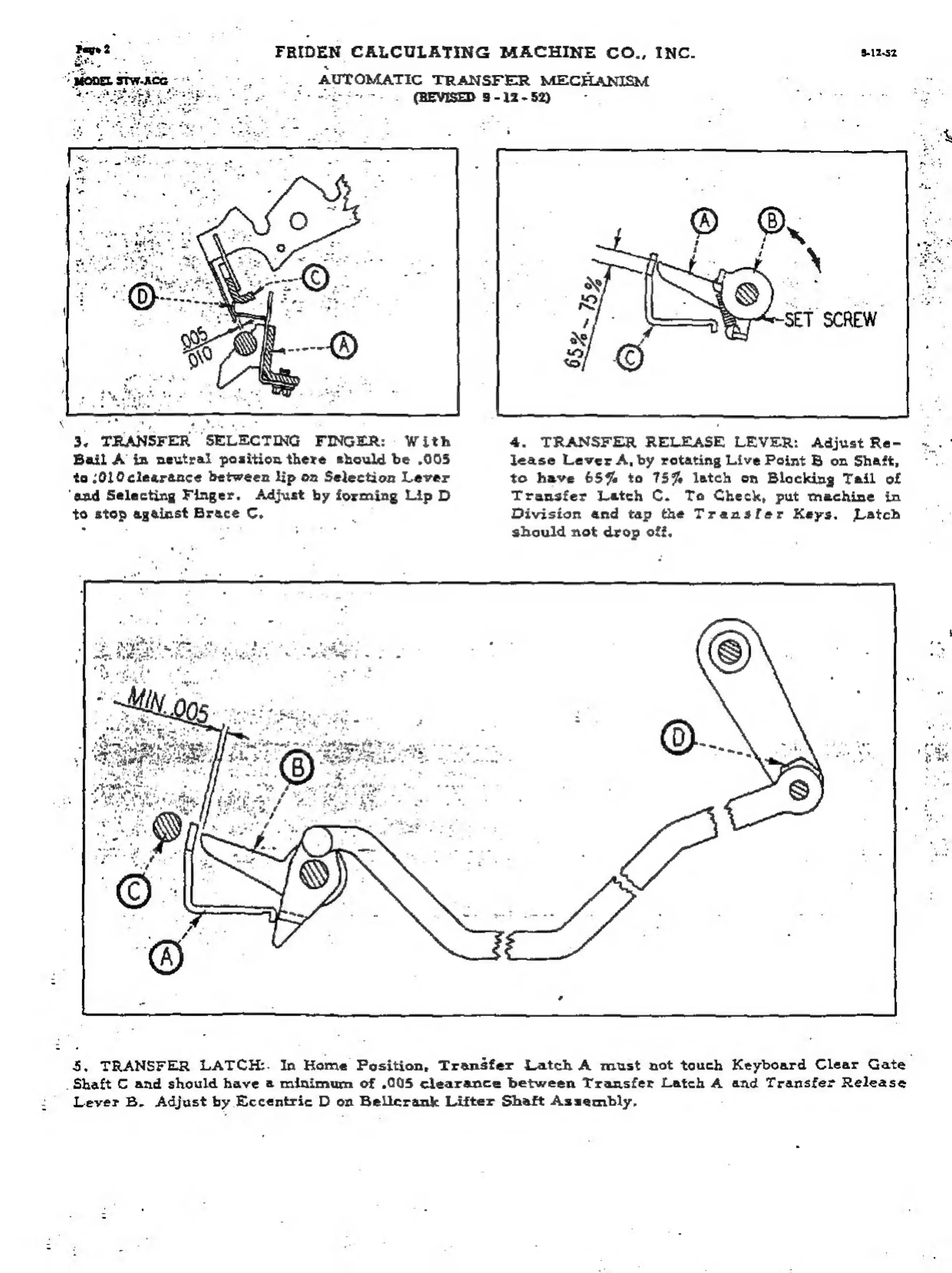

3. TRANSFER SELECTING FINGER: With
Bail A in neutral position there should be .005
to /0L0 clearance between lip on Selection Lever
‘and Selecting Finger. Adjust by forming Lip D
to stop against Brace C,
FRIDEN CALCULATING MACHINE Co., INC. e12sz
_
AUTOMATIC
TRANSFER
MECHANISM
ee uca cae (REVISED 3-12-52)
4.
TRANSFER
RELEASE
LEVER:
Adjust
Re-
lease
Lever
A, by
rotating
Live
Point
B
on
Shaft,
to have
65% to 75% latch
on Blocking
Tail of
Transfer
Latch
C. To Check,
put machine
in
Division
and tap the Transfer
Keys.
Latch
should
not drop off.
3,
TRANSFER
LATCH:.
In
Home
Fosition,
TranSfer
Latch
A
must
not
touch
Keyboard
Clear
Gate
Shaft
C
and
should
have
a
minimum
of
.005
clearance
between
Transfer
Latch
A
and
Transfer
Release
Lever B. Adjust by Eccentric D on Bellerank Lifter Shaft Assembly,
