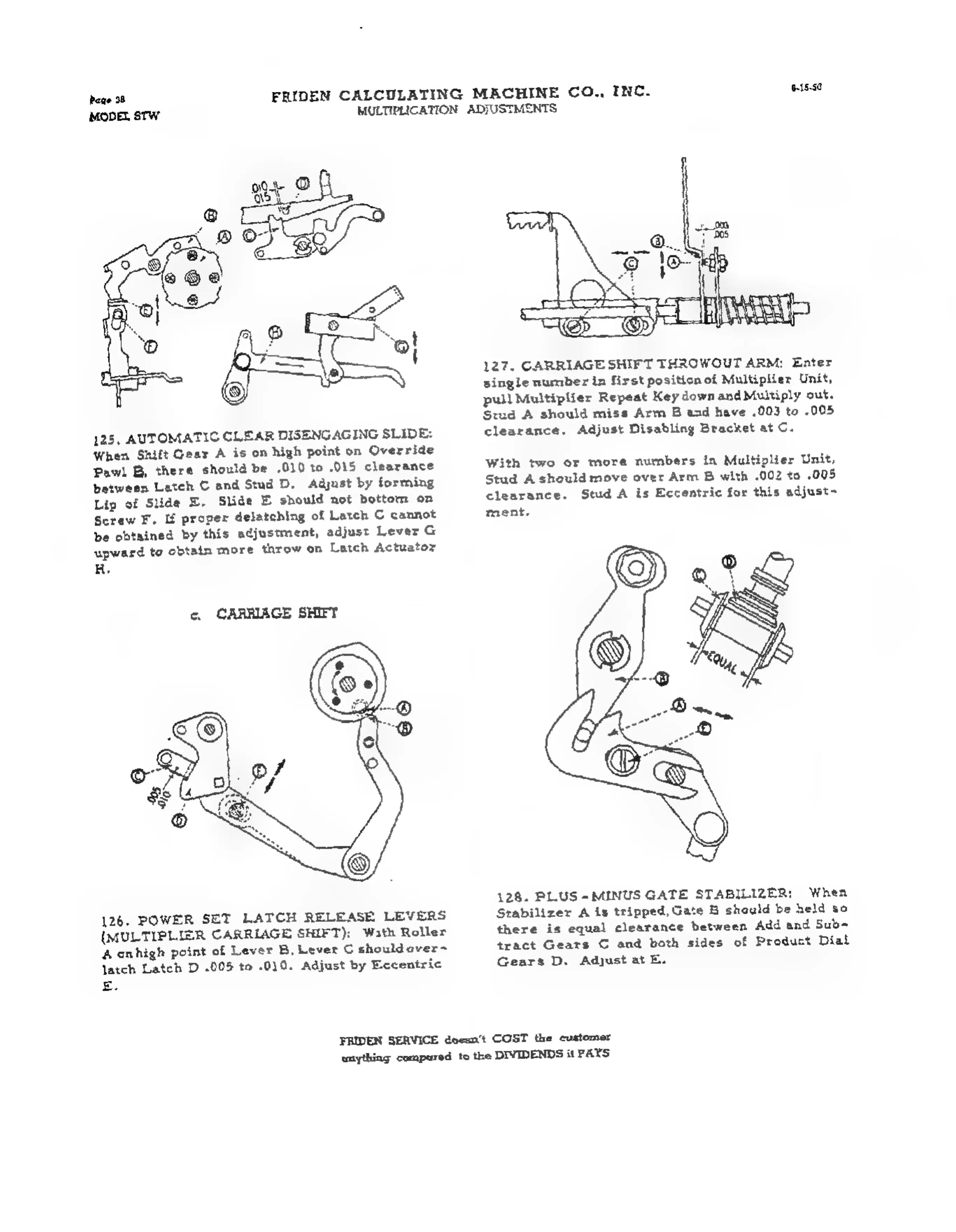

FRIDEN
CALCULATING
MACHINE
CO.,
INC.
1580
MODEL
STW
125,
AUTOMATIC
CLEAR
DISENGAGING
SLIDE:
When
Shift
Gear
A
is
on
high
point
on
Override
Pawl
B
there
should
be
.010
to
.015
clearance
between
Latch
©
and
Stud
D.
Adjust
by
forming
Lip
of
Slide
E.
Slide
E
should
not
bottom
on
Screw
F.
lf
proper
delatching
of
Latch
C
cannot
be
obtained
by
this
adjustment,
adjust
Lever
G
upward
to
obtain
more
throw
on
Latch
Actuator
H.
c.
CARRIAGE
SHIFT
126.
POWER
SET
LATCH
RELEASE
LEVERS
(MULTIPLIER
CARRIAGE
SHIFT):
With
Roller
A
onhigh
point
of
Lever
B,
Lever
©
shouldover=
latch
Latch
D
.005
to
.010.
Adjust
by
Eccentric
Ez.
MULTIPLICATION
ADJUSTMENTS
127.
CARRIAGE
SHIFT
THROWOUT
ARM:
Enter
single
number
in
first
positicn
of
Multiplier
Unit,
pull
Multiplier
Repeat
Key
down
and
Multiply
out.
Stud
A
should
miss
Arm
B
and
have
.003
to
.005
clearance.
Adjust
Disabling
Bracket
at
C.
With
two
or
more
numbers
in
Multiplier
Unit,
Stud
A
should
move
over
Arm
B
with
.002
to
005
clearance.
Stud
A
is
Eccentric
for
this
adjust~
ment.
128.
PLUS
-MINUS
GATE
STABILIZER:
When
Stabilizer
A
is
tripped,
Gate
5
should
be
held
so
there
is
equal
clearance
between
Add
and
Sub-
tract
Gears
©
and
both
sides
of
Product
Dial
Gears
D.
Adjust
at
E.
