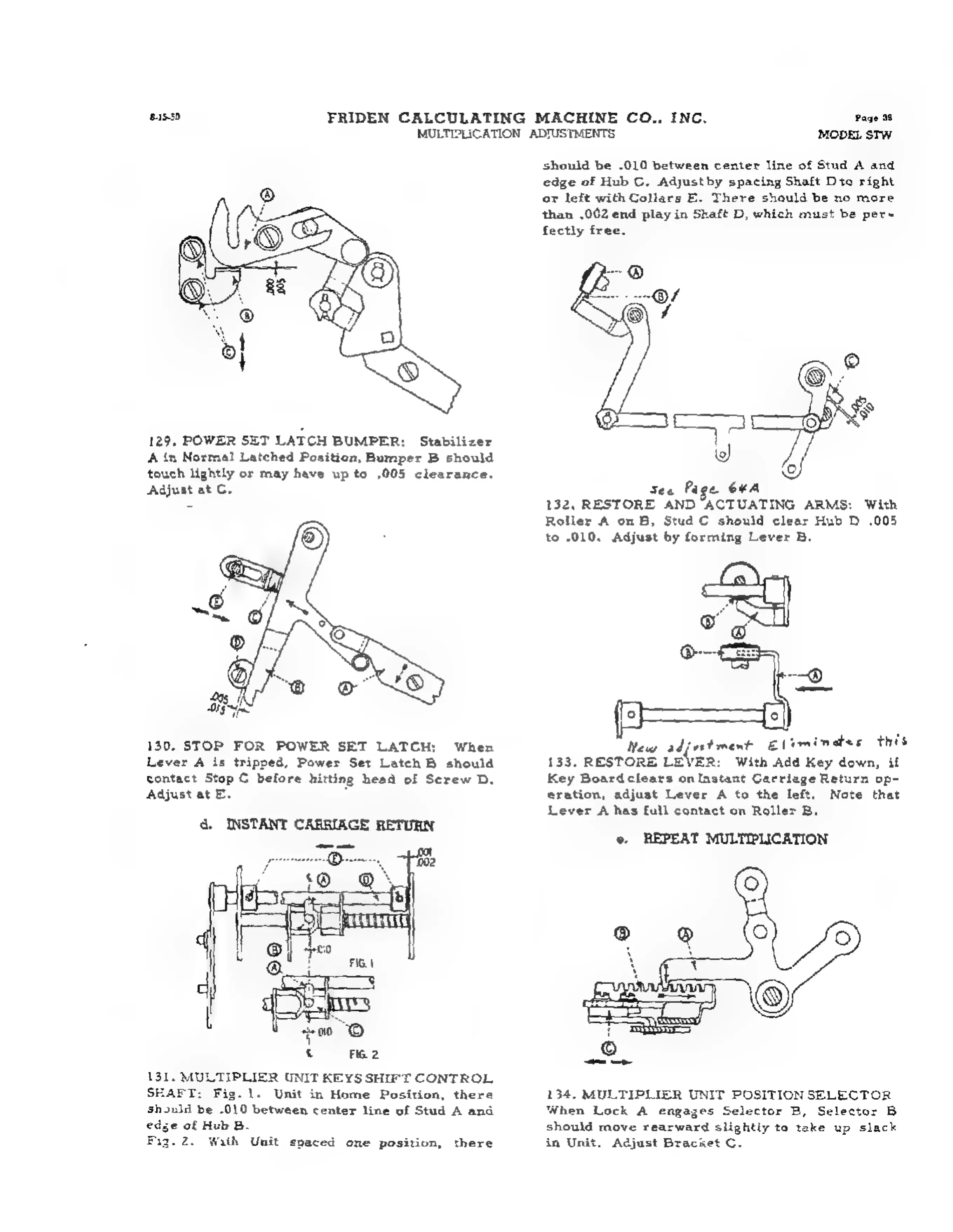

MULTIPLICATION
ADIUSTMENTS
MODEL
STW
should
be
.010
between
center
line
of
Stud
A
and
edge
of
Hub
C.
Adjust
by
spacing
Shaft
Dto
right
or
left
with
Collars
E.
There
should
be
no
more
than
.062
end
play
in
Shaft
D,
which
must
be
per~
fectly
free.
129,
POWER
SET
LATCH
BUMPER:
Stabilizer
A
in
Normal
Latched
Position,
Bumper
B
should
touch
lightly
or
may
have
upto
.005
clearance.
Adjust
at
C.
Jee
Page
CHA
-
132,
RESTORE
AND
ACTUATING
ARMS:
With
Roller
A
on
B,
Stud
C
should
clear
Hub
D
.005
to
.010.
Adjust
by
forming
Lever
B.
130,
STOP
FOR
POWER
SET
LATCH:
When
New
adjortment
Eliminates
this
Lever
A
is
tripped,
Power
Set
Latch
B
should
133,
RESTORE
LEVER:
With
Add
Key
down,
if
contact
Stop
©
before
hitting
head
of
Serew
D.
Key
Board
clears
on
Instant
Carriage
Return
op-
Adjust
at
E.
:
eration,
adjust
Lever
A
to
the
left.
Note
that
Lever
A
has
full
contact
on
Roller
B.
e.
REPEAT
MULTIPLICATION
da.
INSTANT
CARRIAGE
RETURN
oo,
131.
MULTIPLIER
UNIT
KEYS
SHIFT
CONTROL
SHAFT:
Fig.
1.
Unit
in
Home
Position,
there
134,
MULTIPLIER
UNIT
POSITION
SELECTOR:
should
be
.010
between
center
line
of
Stud
A
and
When
Lock
A
engages
Selector
B,
Selector
B
edge
of
Hub
B.
should
move
rearward
slightly
to
take
up
slack
Fig.
2.
with
Unit
spaced
one
position,
there
in
Unit.
Adjust
Bracket
C.
