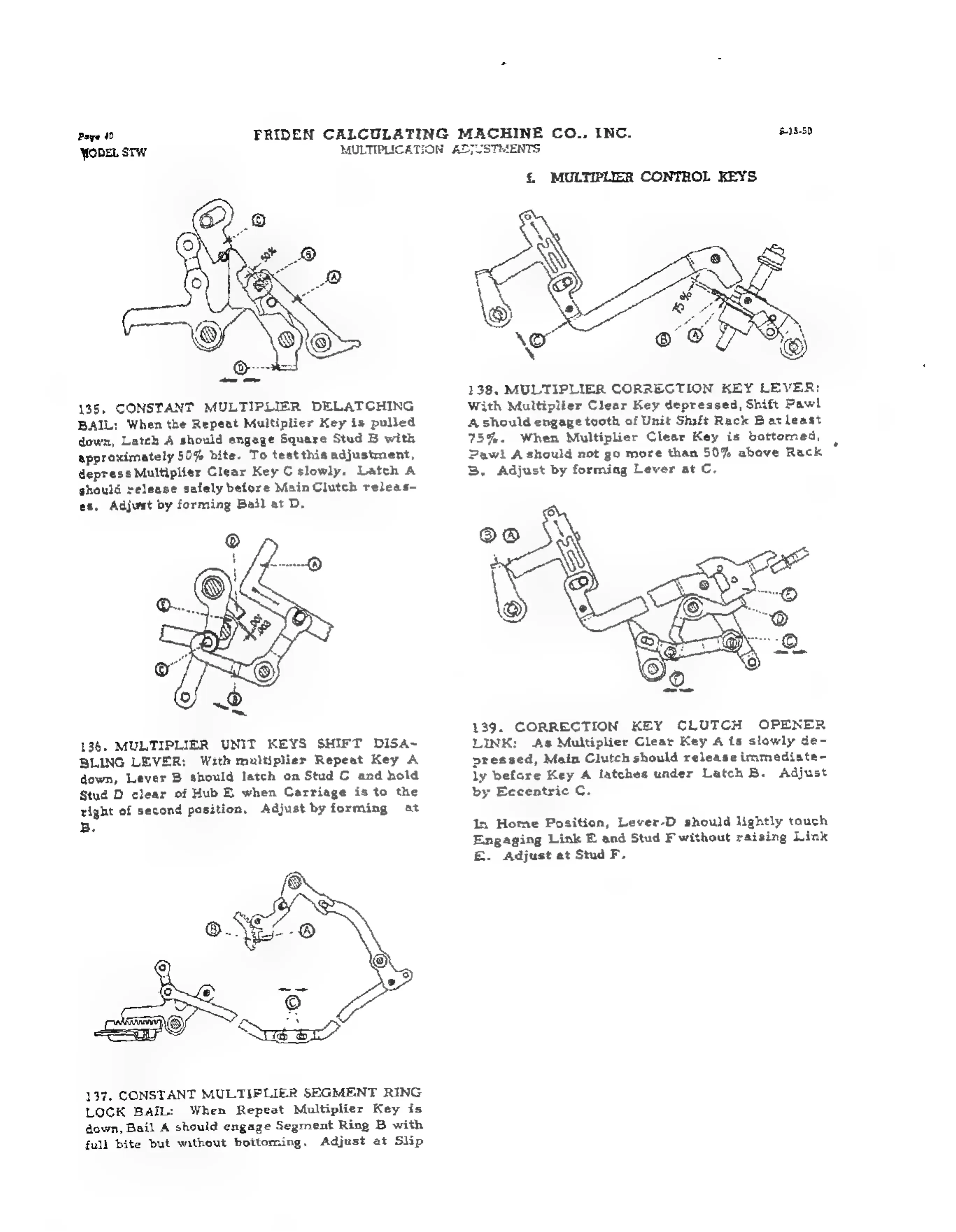

FRIDEN STW - Page 40

Paye
19
FRIDEN
CALCULATING
MACHINE
CO..
INC.
818-50
MULTIPLICATION
ADJUSTMENTS
£ MULTIPLIER CONTROL KEYS
135,
GONSTANT
MULTIPLIER
DELATCHING
BAIL:
When
the
Repeat
Multiplier
Key
is
pulled
down,
Latch
A
should
engage
Square
Stud
B
with
approximately
50%
bite.
To
test
this
adjustment,
depress
Multiplier
Clear
Key
C
slowly.
Latch
&
should
release
safely
before
Main
Clutch
releas-
es,
Adjust
by
forming
Bail
at
D.
136.
MULTIPLIER
UNIT
KEYS
SHIFT
DISA~
BLING
LEVER:
With
multiplier
Repeat
Key
A
down,
Lever
B
should
latch
on
Stud
C
and
hold
Stud
D
clear
of
Hub
BR
when
Carriage
is
to
the
right
of
second
pasition,
Adjust
by
forming
at
BR
137.
CONSTANT
MULTIPLIER
SEGMENT
RING
LOCK
BAIL:
When
Repeat
Multiplier
Key
is
down,
Bail
A
should
engage
Segment
Ring
B
with
full
bite
but
without
bottoming,
Adjust
at
Slip
138,
MULTIPLIER CORRECTION
KEY
LEVER:
With
Multiplier
Clear
Key
depressed,
Shift
Pawl
‘A
should
engage
tooth
of
Unit
Shift
Rack
Batleast
75%.
When
Multiplier
Clear
Key
is
battorned,
Pawl
A
should
not
go
more
than
50%
above
Rack
”
B,
Adjust
by
forming
Lever
at
C.
139.
CORRECTION
KEY
CLUTCH
OPEKER
LINK:
As
Multiplier
Clear
Key
A
is
slowly
de-
pressed,
Main
Clutch
should
release
immediate
ly
before
Key
A
latches
under
Latch
B.
Adjust
by
Eecentric
C.
In
Home
Position,
Lever-D
should
lightly
touch
Engaging
Link
B
and
Stud
F
without
raising
Link
E.
Adjust
at
Stud
F.
