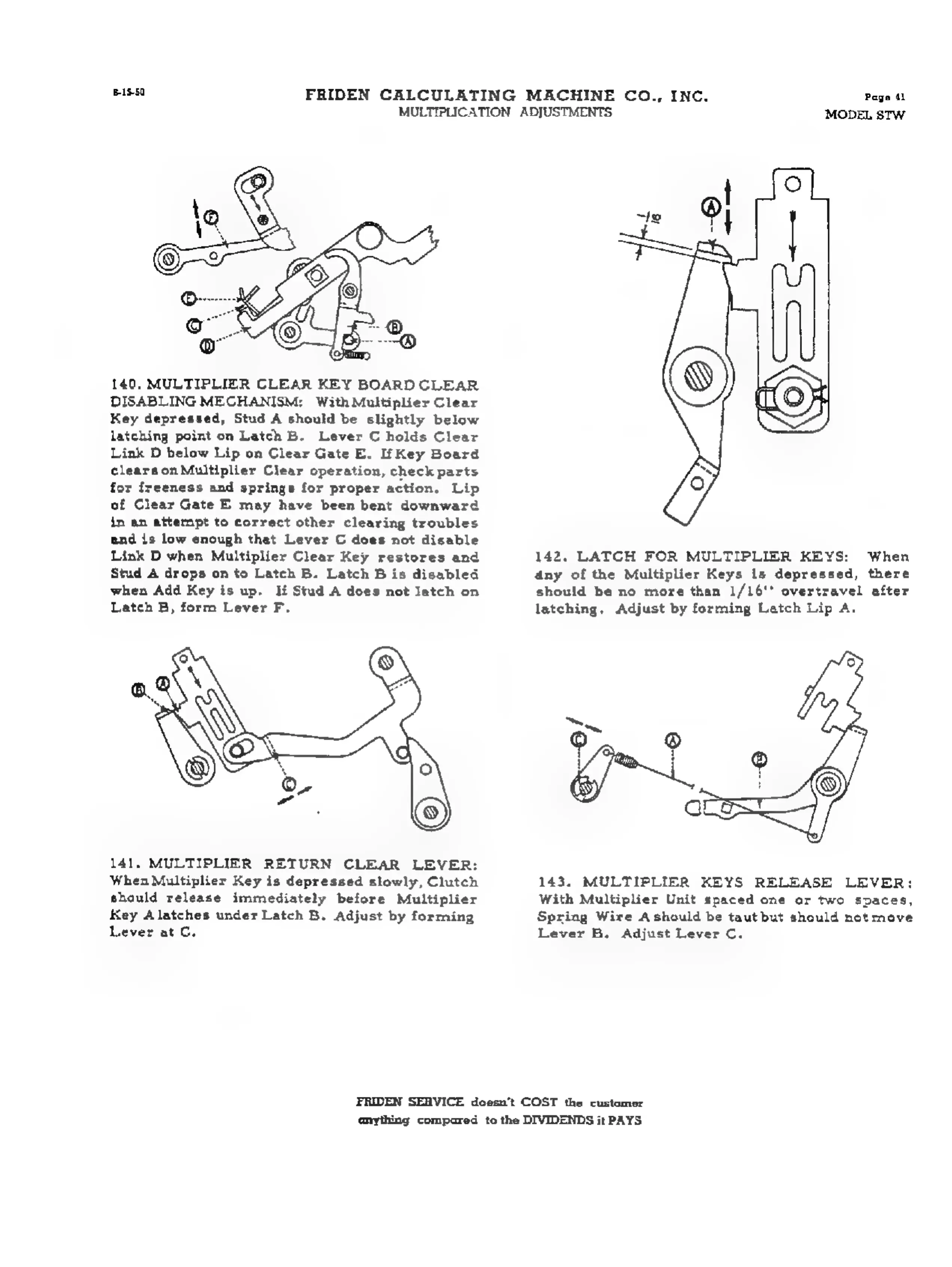

MULTIPLICATION ADJUSTMENTS
140,
MULTIPLIER
CLEAR
KEY
BOARD
CLEAR
DISABLING
MECHANISM:
With
Multiplier
Clear
Key
depressed,
Stud
A
should
be
slightly
below
latching
point
on
Latch
B.
Lever
C holds
Clear
Link
D below
Lip
on
Clear
Gate
E.
IfKey
Board
clearsonMultiplier
Clear
operation,
check
parts
for
freeness
and
springs
for
proper
action.
Lip
of
Clear
Gate
E may
have
been
bent
downward
in an
attempt
to correct
other
clearing
troubles
and
is low
enough
that
Lever
C does
not
disable
Link
D when
Multiplier
Clear
Key
restores
and
Stud
A drops
on
to
Latch
B.
Latch
B is disabled
when
Add
Key
is up.
If Stud
A does
not
latch
on
Latch
B,
form
Lever
F.
141,
MULTIPLIER
RETURN
CLEAR
LEVER:
When
Multiplier
Key
is depressed
slowly,
Clutch
should
release
immediately
before
Multiplier
Key
Alatches
under
Latch
B.
Adjust
by
forming
Lever
at C.
MODEL STW
142, LATCH FOR MULTIPLIER KEYS: When
any
of
the
Multiplier
Keys
is
depressed,
there
should be no more than 1/16'' overtravel after
latching.
Adjust
by
forming
Latch
Lip
A.
143. MULTIPLIER KEYS RELEASE LEVER:
With Multiplier Unit spaced one or two spaces,
Spring Wire A should be tautbut should not move
Lever B. Adjust Lever C.
