12-22-54 FRIDEN CALCULATING MACHINE CO., INC. Page 6¥A
MODEL STW
TABULATION ADJUSTMENTS

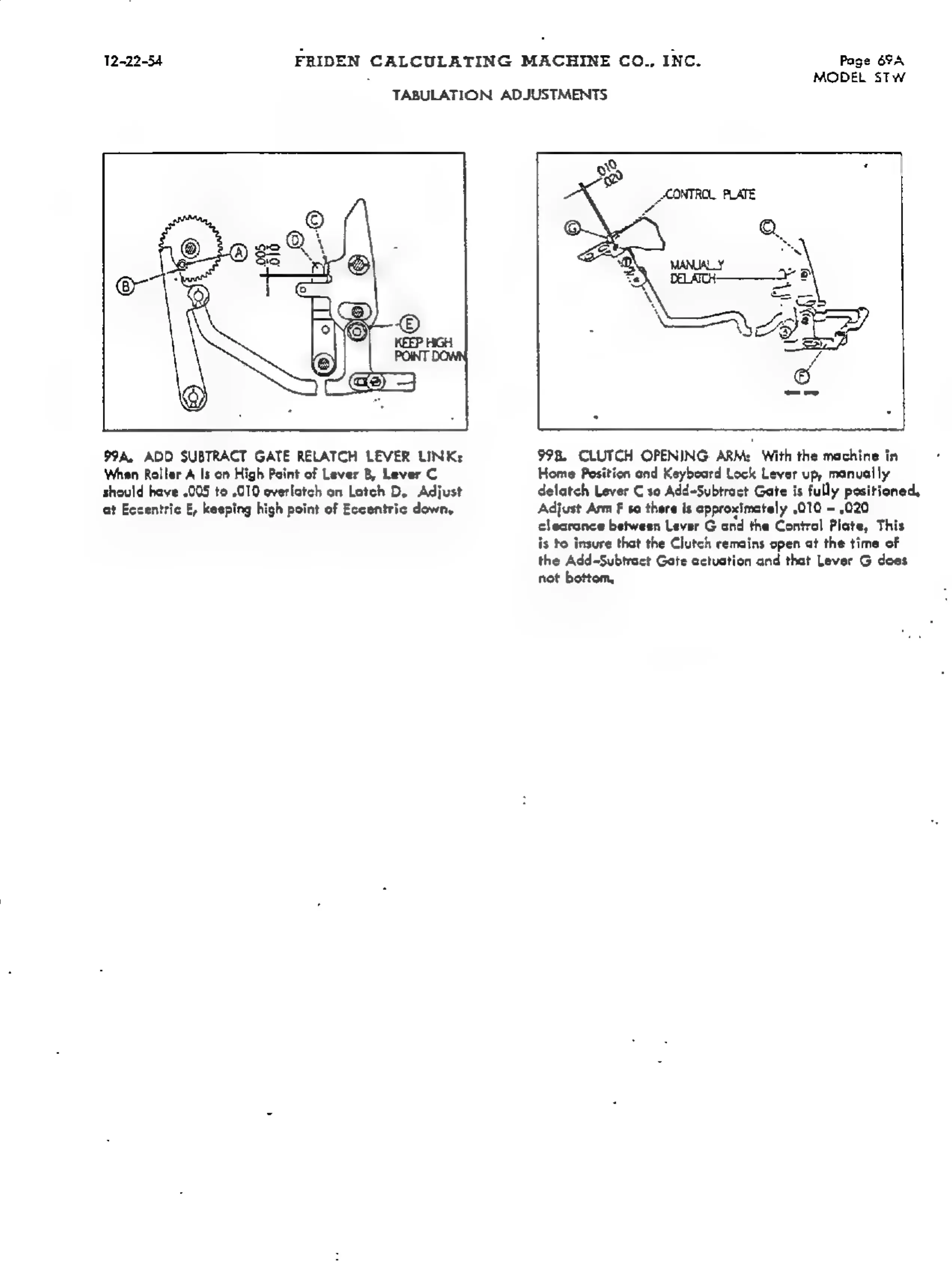

994, ADD SUBTRACT GATE RELATCH LEVER LINK:
When Roller A is on High Paint of Lever B, Lever C
should have .005 to .010 overlatch on Latch D. Adjust
at Eccentric E, keeping high point of Eccentric down,
998. CLUTCH OPENING: ARM: With the machine in
Home Position and Keyboard Lock Lever up, manually
delatch Lever C so Add=Subtract Gate is fully positioned,
Adjust Arm F so there is approximately .010 - .020
clearance between Lever G and the Control Plate, This
is to insure that the Clutch remains open at the time of
the Add-Subtract Gate actuation and that Lever G does
not bottom,
