Page 69A
“FRIDEN CALCULATING MACHINE CO.., INC. 32-22-34
MODEL STW

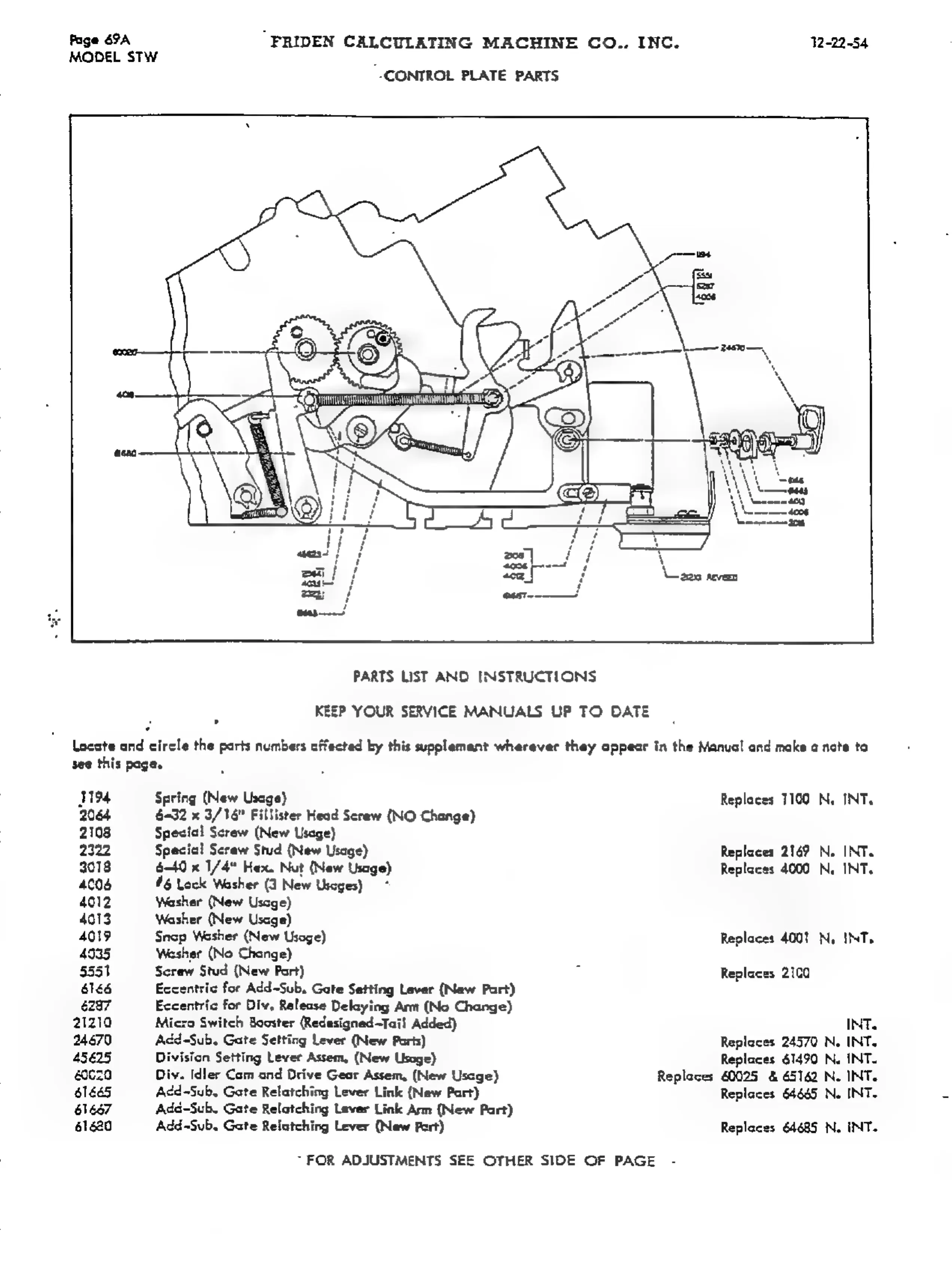

“CONTROL PLATE PARTS
Seo) MT LAN
4
PARTS LIST AND INSTRUCTIONS
KEEP YOUR SERVICE MANUALS UP TO DATE
Locate and circle the parts numbers affected by this supplemant wherever they appear in the Manual and make a note to
see this page,
94 Spring (New Usage)
2064 6-32 x 3/16" Fillister Head Screw (NO Change)
2108 Special Screw (New Usage)
2322 Special! Screw Stud (New Usage)
3018 5-40 x 1/4" Hex. Nut (New Usage)
4006 #6 Lock Washer (J New Usages)
4012 Washer (New Usage)
4013 Washer (New Usage)
4019 Snap Wesher (New Usage)
4935 Washer (No Change)
5551
Sereaw
Stud
(New
Part)
6166 Eccentric for Add-Sub, Gate Satting Laver (New Part)
6287 Eccentric for Div, Release Delaying Ann (No Change)
21210 Switch Booster Redesigned-Tai! Added)
24670 ub, Gate Setting Lever (New Parts)
45625 ivision Setting Lever Assem, (New Usoge)
e20 Div. Idler Cam and Drive Gear Assem, (New Uscge)
61665 Add-Sub, Gate Relatching Lever Link {New Part)
81667 Add-Sub, Gate Relatching Laver Link Arm (New Part)
61620 Add-~Sub, Gate Relatching Lever (New Pert)
* FOR ADJUSTMENTS SEE OTHER SIDE OF PAGE
Replaces 1100 N. INT.
Replaces 216? N. INT.
Replaces 4000 N. INT.
Replaces 4001 Ny INT.
Replaces 2100
INT.
Replaces 24570 N. INT.
Replaces 61490 N. INT.
Reploces 60025 & 65142 N. INT.
Replaces 64445 N. INT.
Replaces 64685 N. INT.
