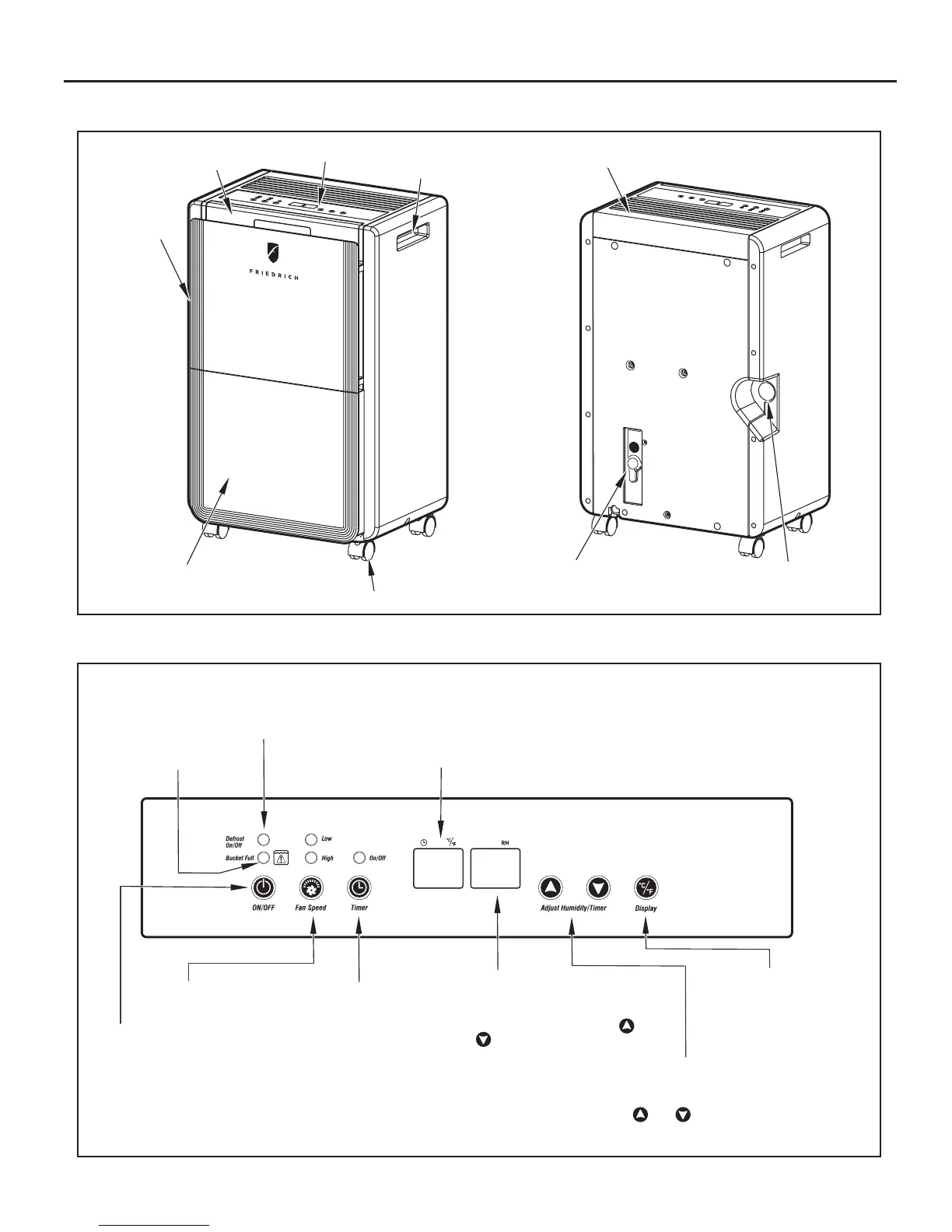

DESCRIPTION OF COMPONENTS
FRD001
DRAIN PUMP OUTLET
(ONLY ON 50 AND 70 PINT MODELS)
CONTINUOUS
DRAINAGE OUTLET
DEHUMIDIFIED
DRY AIR VENT
CONTROL PANEL
HANDLE
MOIST AIR
INTAKE
AIR FILTER
ROLL CASTERS
DRAIN BUCKET
FUNCTION EXPLANATION
FRD002
BUCKET FULL LAMP
LAMP LIGHTS WHEN
DRAIN BUCKET IS
FULL AND NEEDS TO
BE EMPTIED.
POWER
ON/OFF
FAN SPEED
HIGH/LOW
CURRENT HUMIDITY DISPLAY
DISPLAYS THE CURRENT
RELATIVE HUMIDITY (RH) IN
THE ROOM. WHEN THE OR
IS PRESSED THE HUMIDITY
SETTING IS DISPLAYED.
SET HUMIDITY
ADJUST THE HUMIDITY % FROM
30% TO 90% RH BY PRESSING THE
OR BUTTONS. HUMIDITY IS
ADJUSTED IN 5% INCREMENTS.
°C/°F SELECTOR
PRESS THE °C/°F
SWITCH BUTTONS
IT WILL SWITCH
BETWEEN °C AND °F.
TIMERS
WHEN THE UNIT IS ON PRESS THE
TIMER BUTTON TO DISPLAY THE
POWER OFF TIMER.
SELECT FROM 1-24 HOURS OF
RUNNING TIME UNTIL THE UNIT
SHUTS OFF AUTOMATICALLY.
WHEN THE UNIT IS OFF PRESS THE
TIMER BUTTON TO DISPLAY THE
POWER ON TIMER. SELECT FROM
1-24 HOURS UNTIL THE UNIT WILL
TURN ON AUTOMATICALLY.
DEFROST LAMP
LAMP LIGHTS WHEN UNIT IS
DEFROSTING (SEE PAGE 5).
CURRENT TEMP / TIMER SET DISPLAY
WHEN THE UNIT IS RUNNING THE CURRENT TEMP IS DISPLAYED.
WHEN THE TIMER BUTTON IS PRESSED THIS WINDOW DISPLAYS
THE TIMER SETTING THEN REVERTS BACK TO THE TEMPERATURE
AFTER 10 SECONDS.
