Friedrich D25D User Manual

9
920-198-10
Drain Hose Routings

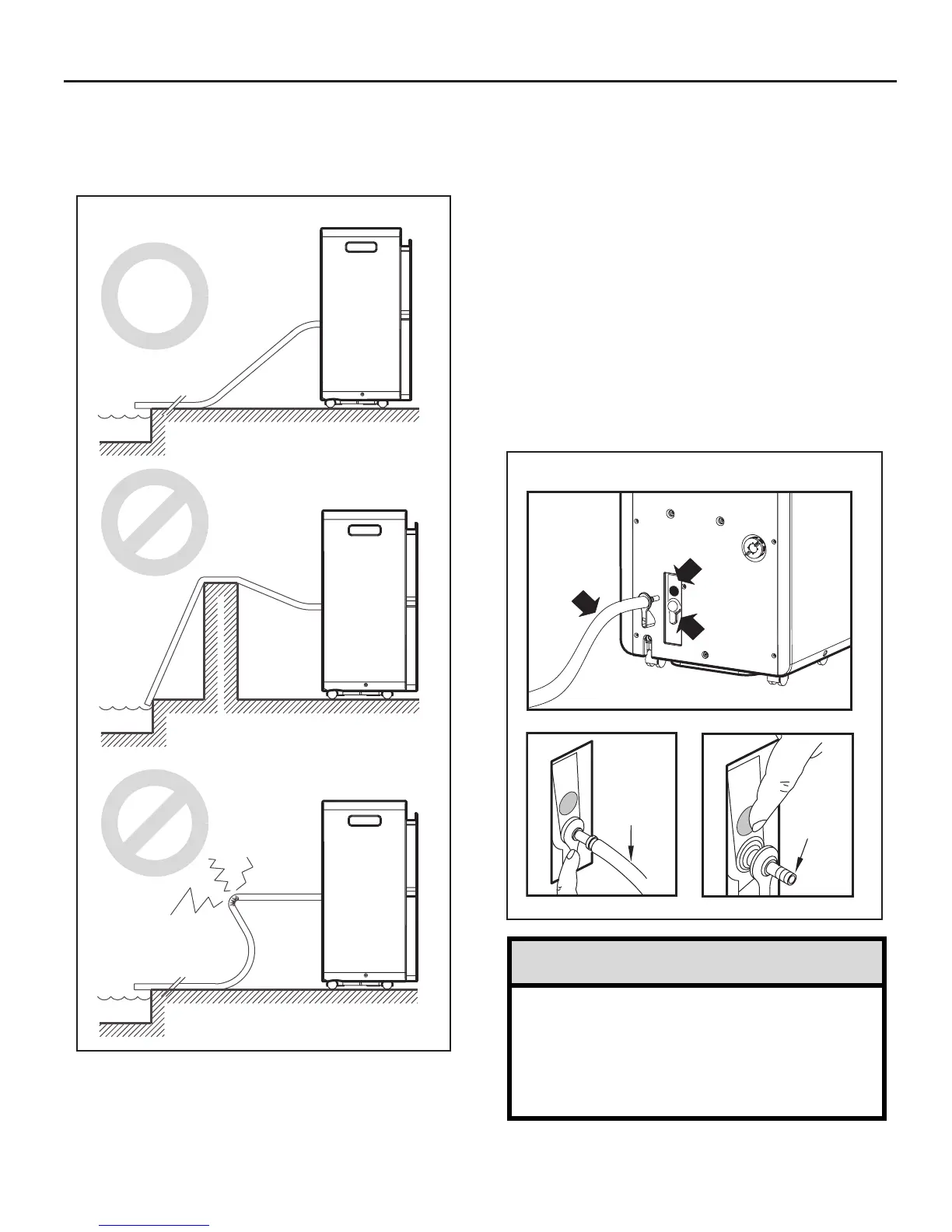

When using the function of continuous drainage, the drain hose must be
placed horizontally below the drainage hole (See Figure 23).
You must avoid uneven ground and folding the hose (See Figure 23).
FRD026
Continuous Draining using the Pump
(D50D/D70D models only)
STEP 1. Connect the attached continuous drainage adaptor (1) to the
drain hole on the rear panel (2).
STEP 2. Connect the supplied water hose to the plug that ts into the
drain hole.
STEP 3. Lead the other end to a suitable location for drainage, like a
drain or sink and insert the plug into the water drain.
The maximum distance and the rise may be 15 ft from the unit. Exceeding
this distance may damage the unit or cause leaks. When the unit’s drain
bucket capacity reaches a certain water level, it will drain automatically
(See Figure 24).
FRD027
SUPPLIED
WATER
HOSE
PLUG
1
2
3
NOTICE
In the automatic mode, the condensed moisture
is always removed through the air exhaust hose.
Removing the rubber plug from the water drain
will allow the water to drain out at this point. The
water drain can not be used.
Installation:
Dismantle:
Press the drain hole (3) on the unit rear panel. The automatic drainage
adaptor will pull out (See Figure 24).
Figure 23
Figure 24
