Friedrich ES15M33 - Page 19

19
FRR009
ITEM 2
ITEM 3
ITEM 4
ITEM 5 ITEM 6
ITEM 1
ITEM 9
ITEM 8
ITEM 11
ITEM 13
ITEM 12
ITEM 14
ITEM 10
ITEM 7
ITEMS NOT TO SCALE

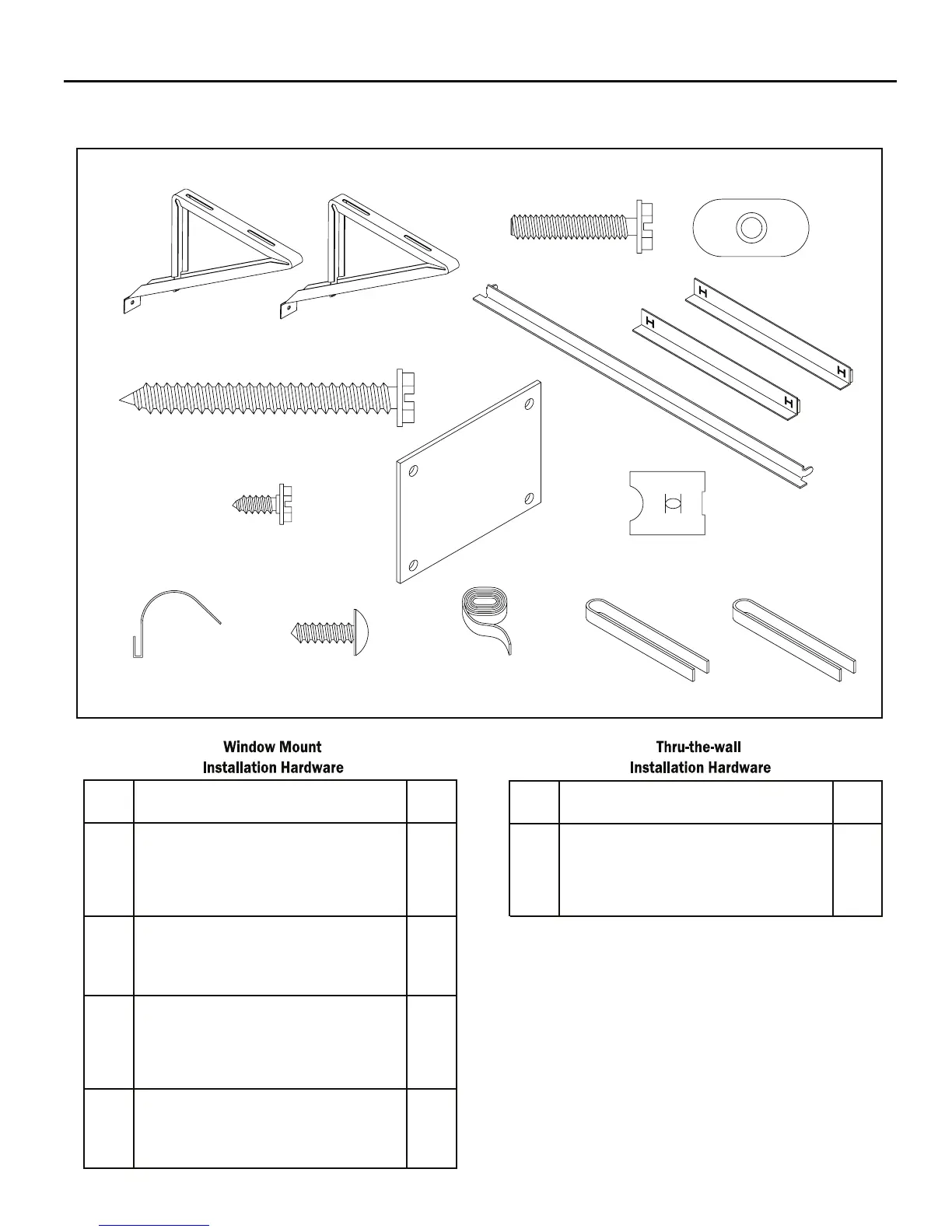

INSTALLATION HARDWARE AND ACCESSORY DETAIL
ITEM
NO
DESCRIPTION QTY.
SHELL MOUNTING PARTS
1 SUPPORT BRACKET 2
2 SCREW, 10-24 x 1" HEX HEAD 4
3 10-24 FLAT WELD NUT 4
4 SCREW, SHEET METAL #12 x 2" 7
WINGBOARD ANGLE MOUNTING
5 WINGBOARD ANGLE, TOP 1
6 WINGBOARD ANGLE, SIDE 2
7 SCREW, SHEET METAL #8 x
3
!
8
" 2
WINGBOARD MOUNTING PARTS
8 WINGBOARD (MASONITE) 1
ITEM
NO
DESCRIPTION QTY.
MOUNTING PARTS
SCREW, SHEET METAL #12A x 2”
CHASSIS SEAL GASKET (LIGHT FOAM)
4
14
7
1
9 "J" TYPE SPEED NUT 4
10 WINGBOARD CLIP (SPRING STEEL) 4
11 SCREW, #8 x ½" PHILLIPS TRUSS HD. 4
WINDOW SEALING
12 SEALING GASKET (VINYL) 1
13 WINDOW SEAL GASKET (DARK FOAM) 1
14 CHASSIS SEAL GASKET (LIGHT FOAM) 1
NOTE: Kühl + models do not come with window mounting
components. When mounting a cooling and heating model
a window installation kit must be purchased separately.
KWIKS – For all ES and YS models.
KWIKM – For all EM and YM models.
KWIKL – For all EL and YL models.
