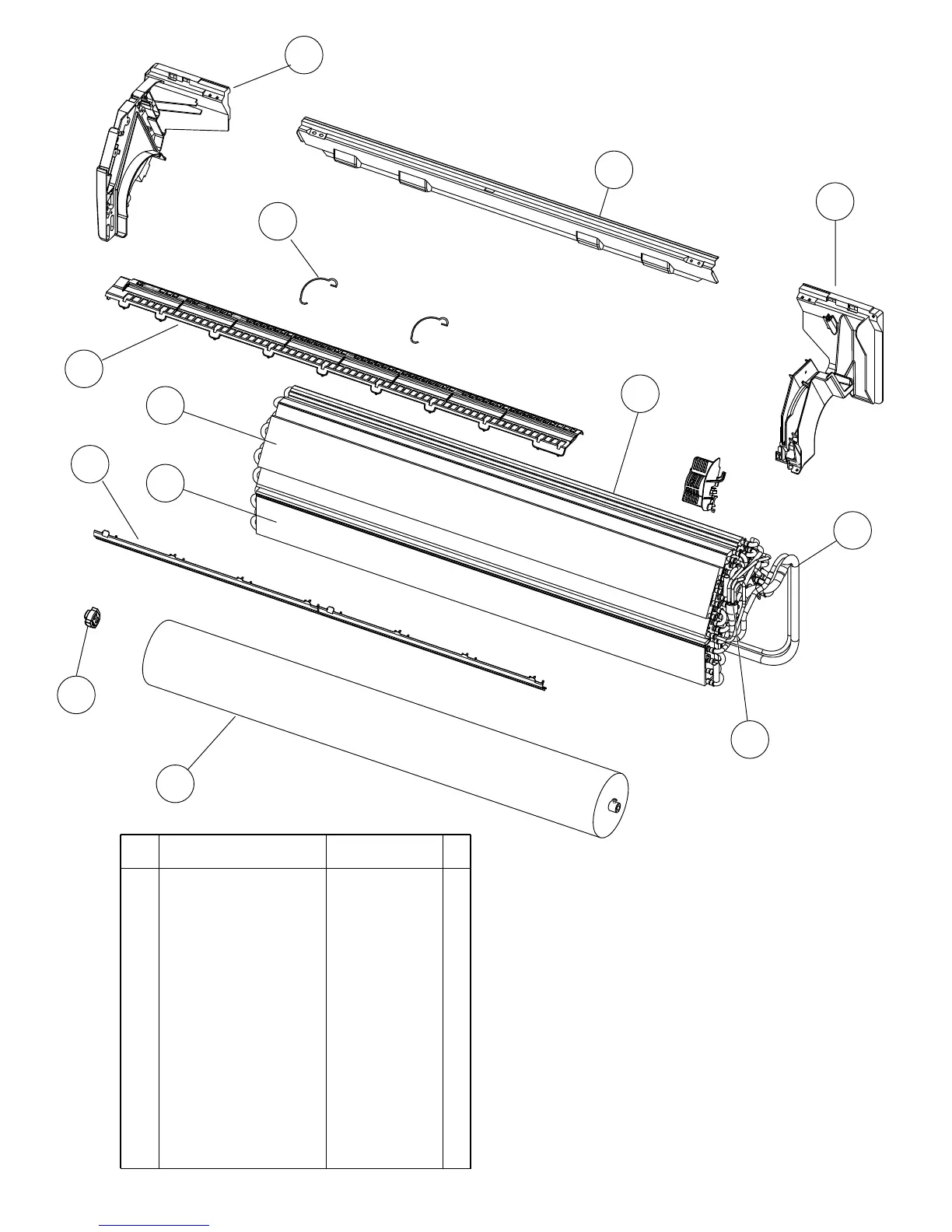

Friedrich MR36C3F - Evaporator Section

2008.01.09 15
INDOOR UNIT
Evaporator
8
31
35
36
34
29
30
27
25
28
32
33
9
8 Crossflow Fan Assy 9315024015
9 Bearing C Assy 9306628017
27 Evaporator Assy A 9315348012
28 Evaporator Assy B 9315349019
25 Evaporator Assy C 9315789013
29 Connection Pipe Assy 9315355010
30 Distributor Assy 9316988002
31 Water Seal 9315251015
32 Evaporator Holder R 9314994012
33 Evaporator Holder L 9314995019
34 Rear Bracket 9315022011
35 Filter Guide 9315013019
36 Filter Guard 9315411013
Ref. Description Part number
