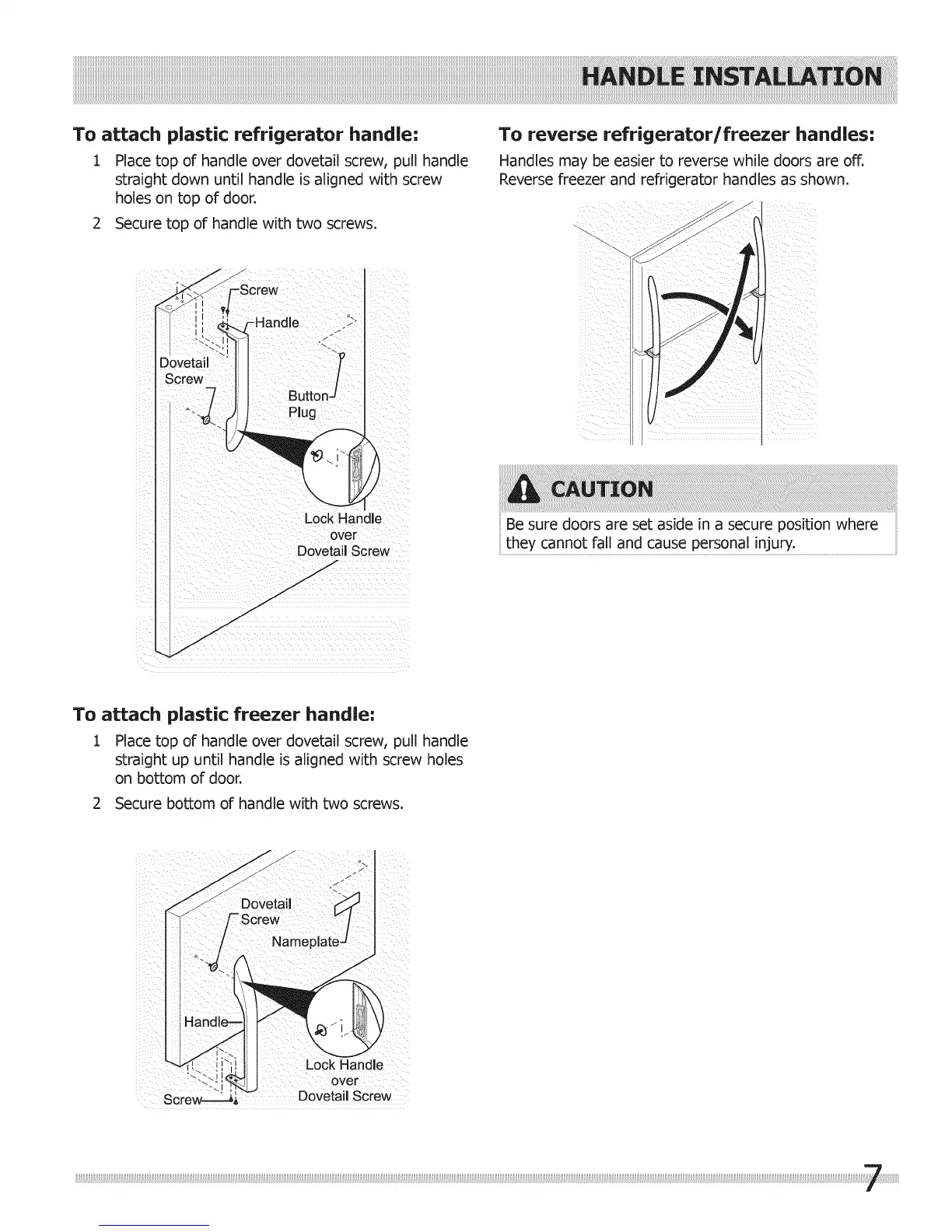

To attach plastic refrigerator handle:
1 Place top of handle over dovetail screw, pull handle
straight down until handle is aligned with screw
holes on top of door.
2 Secure top of handle with two screws.
To reverse refrigerator/freezer handles:
Handles may be easier to reverse while doors are off.
Reverse freezer and refrigerator handles as shown.
Lock Handle
over
Dovetail Screw
/.f/
To attach plastic freezer handle:
1 Place top of handle over dovetail screw, pull handle
straight up until handle is aligned with screw holes
on bottom of door.
2 Secure bottom of handle with two screws.
Lock Handle
over
Dovetail Screw
Be sure doors are set aside in a secure position where
they cannot fall and cause personal injury,
