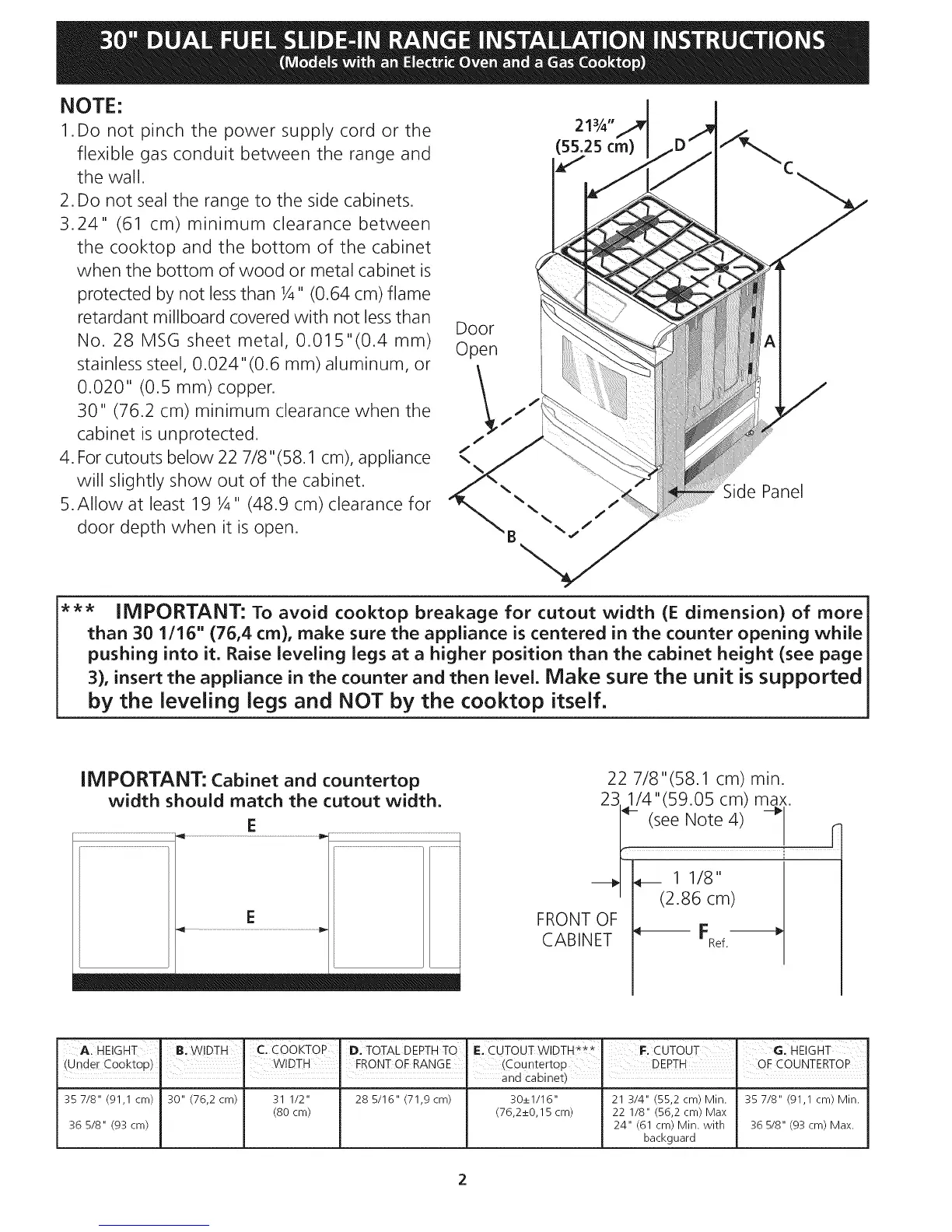

NOTE:
1. Do not pinch the power supply cord or the
flexible gas conduit between the range and
the wall.
2. Do not seal the range to the side cabinets.
3.24" (61 cm) minimum clearance between
the cooktop and the bottom of the cabinet
when the bottom of wood or metal cabinet is
protected by not lessthan ¼" (0.64 cm) flame
retardant millboard covered with not less than
No. 28 MSG sheet metal, 0.01 5"(0.4 ram)
stainless steel, 0.024"(0.6 ram) aluminum, or
0.020" (0.5 ram) copper.
30" (76.2 cm) minimum clearance when the
cabinet is unprotected.
4. For cutouts below 22 7/8"(58.1 cm), appliance
will slightly show out of the cabinet.
5.Allow at least 19 ¼" (48.9 cm) clearance for
door depth when it is open.
Door
Open
I
Panel
*** IMPORTANT: To avoid cooktop breakage for cutout width (E dimension) of more
than 30 1/16" (76,4 cm), make sure the appliance is centered in the counter opening while
pushing into it. Raise leveling legs at a higher position than the cabinet height (see page
3), insert the appliance in the counter and then level. Make sure the unit is supported
by the leveling legs and NOT by the cooktop itself.
IMPORTANT: Cabinet and countertop
width should match the cutout width.
E
E
_ immmmmmmmml gmmmmmmmg
22 7/8"(58.1 cm) min.
23. 1/4"(59.05 cm) max.
F (see Note 4)
-_1 _ 11/8" ,_
" (2.86 cm)
FRONT OF
CABINET ,4_ FRef
F
A HEIGHT ' B:WIDTH " C] CooKToP D. TOTAL DEPTH TO E. CUTOUTWIDTH***. F: CUTOUT I G: HEIGHT
(Under Cooktop) , WIDTH FRONTOF RANGE (Couotertop ] DEPTH OF COUNTERTOP
I ! ! I and cabinet) i i
35 7/8" (91,1 cm) 30"(76,2cm) 31 1/2" 28 5/16" (71,9cm) 30_+1/16" 21 3/4" (55,2cm) Min. 35 7/8" (91,1 cm) Min.
(80 cm) (76,2_+0,15 cm) 22 1/8" (56,2 cm) Max
36 5/8" (93 cm) 24" (61 cm) Min. with 36 5/8" (93 cm) Max.
backguard
