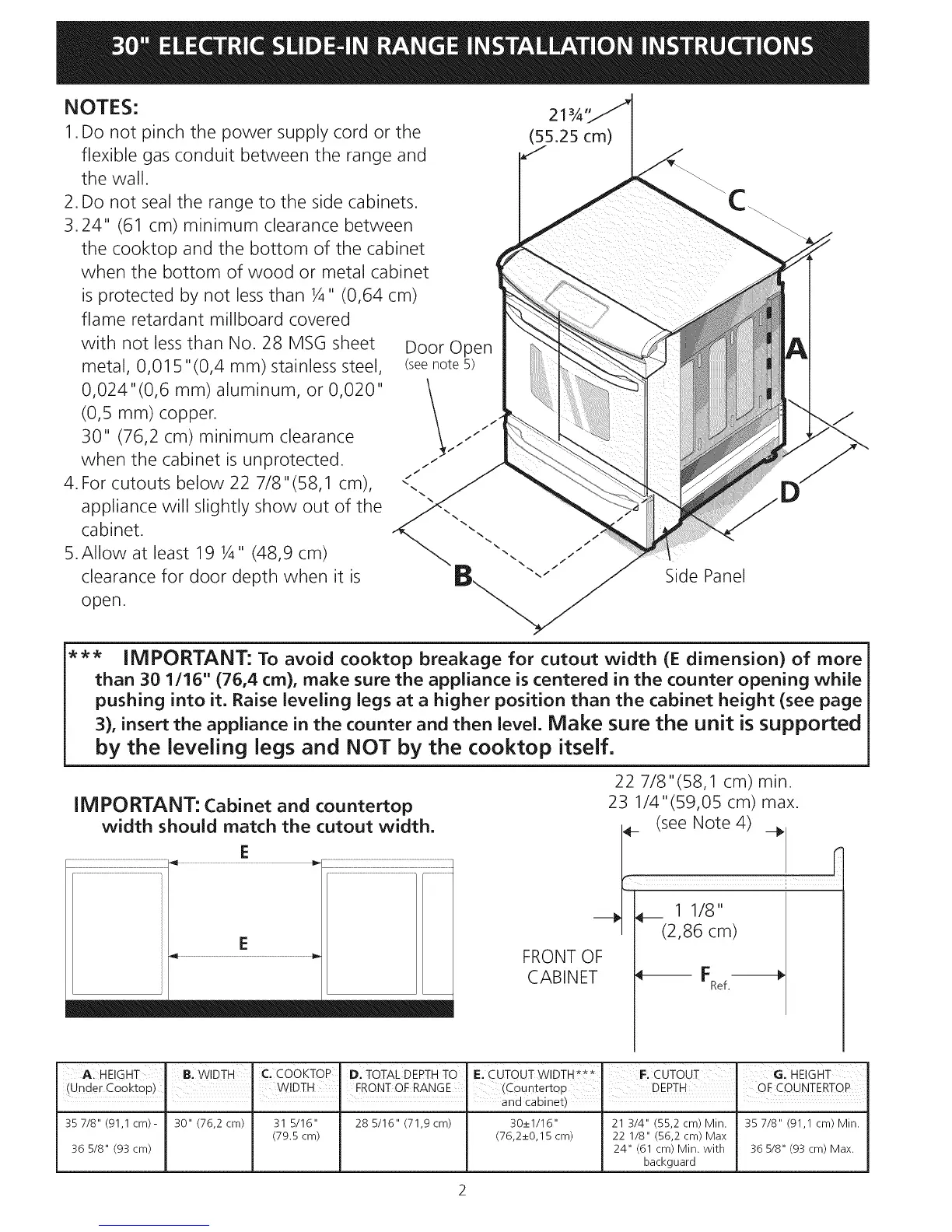

NOTES:
1. Do not pinch the power supply cord or the
flexible gas conduit between the range and
the wall.
2. Do not seal the range to the side cabinets.
3.24" (61 cm) minimum clearance between
the cooktop and the bottom of the cabinet
when the bottom of wood or metal cabinet
21¾"
(55.25 cm)
is protected by not less than 1A" (0,64 cm)
flame retardant millboard covered
with not less than No. 28 MSG sheet
metal, 0,015 "(0,4 mm) stainless steel,
0,024"(0,6 mm) aluminum, or 0,020"
(0,5 mm) copper.
30" (76,2 cm) minimum clearance
when the cabinet is unprotected.
4. For cutouts below 22 7/8"(58,1 cm),
appliance will slightly show out of the
cabinet.
5.Allow at least 19 1A" (48,9 cm)
clearance for door depth when it is
Side Panel
open.
*** IMPORTANT: To avoid cooktop breakage for cutout width (E dimension) of more
than 30 1/16" (76,4 cm), make sure the appliance is centered in the counter opening while
pushing into it. Raise leveling legs at a higher position than the cabinet height (see page
3), insert the appliance in the counter and then level. Make sure the unit is supported
by the leveling legs and NOT by the cooktop itself.
IM PO RTANT: Cabinet and countertop
width should match the cutout width.
E
E
22 7/8"(58,1 cm) min.
23 1/4"(59,05 cm) max.
_ (see Note 4) __ !
_ _
,,
__ 1 1/8
/ (2,86 cm)
FRONT OF
CABINET 4-- FRef.--
AHEIGHT ' 131WIDTH J C. cOOKTOP D. TOTAL DEPTHTO E. CUTOUTWIDTH*** F; CuTOuT I GI HEIGHT
(Under Cooktop) I I WIDTH FRONTOF RANGE (Countertop I DEPTH _ OF COUNTERTOP
I II and cabinet) I I
35 7/8" (91,1 cm)- 30" (76,2 cm) 31 5/16" 28 5/16" (71,9 cm) 30_+1/16" 21 3/4" (55,2 cm) Min. 35 7/8" (91,1 cm) Min.
(79.5 crn) (76,2_+0,15 crn) 22 1/8" (56,2 cm) Max
36 5/8" (93 cm) 24" (61 cm) Min. with 36 5/8" (93 cm) Max.
backguard
To Next Page
