6
INSTALLATION
NOTE
The refrigerator doors are designed to shut by
themselves within a 20 degree opening.
Door Opening
Your refrigerator should be positioned to allow easy
access to a counter or table when removing food. For
best use of drawers and freezer baskets, the refrigerator
should be in a position where both the refrigerator and
freezer doors can be fully opened.
Guidelines for nal positioning of your
refrigerator:
• Allfourcornersofthecabinetmustrestrmlyon
theoor.
• Thecabinetshouldbelevelatthefrontandrear.
• Thesidesshouldtilt¼inch(6mm)fromfrontto
back (to ensure that doors close and seal properly).
• Doorsshouldalignwitheachotherandbelevel.
All of these conditions can be met by
raising or lowering the adjustable front
rollers.

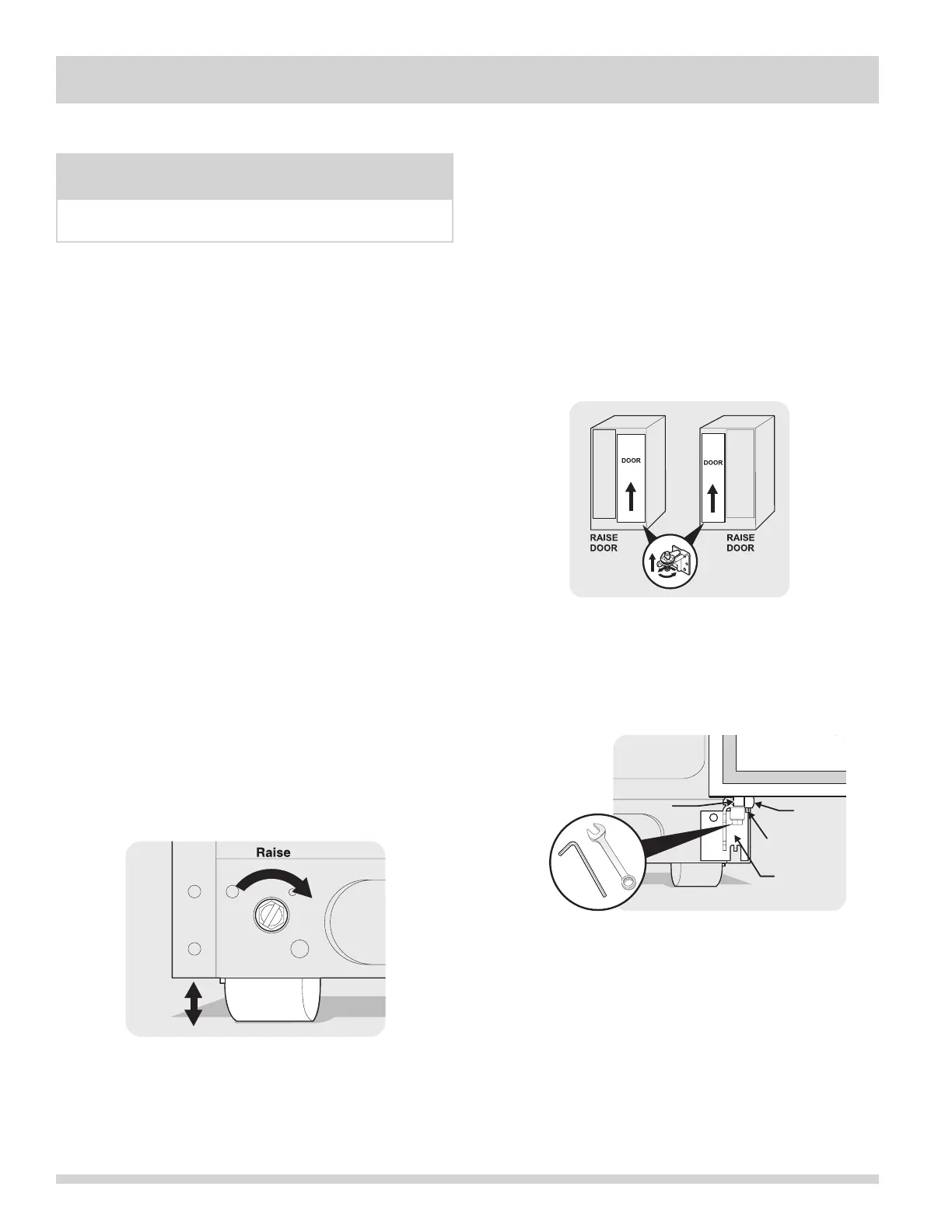

To level the cabinet using the front rollers:
1 Open both doors and remove the toe grille (see
Toe Grille Installation and Removal” in the
Installation” section).
2 Closethedoorsanduseaat-bladescrewdriveror
3
/
8
inch socket wrench to raise or lower the front
rollers.
3 Ensure both doors are bind-free with their seals
touching the cabinet on all four sides.
Hinge
Flange
Set Screw
(some models)
Door Stop
Flange
Hinge
Open Door
7/16”Wrench
and 3/32” Hex Key
(some models)
6 Replacethetoegrillebyttingitintoplace
(see “Toe Grille Installation and Removal” in the
“Installation” section).
To level the doors using the adjustable lower
hinge (some models):
1 Before leveling either door, remove set screw that
locks door height into position. (The door cannot
be adjusted without set screw removed).
2 If the refrigerator door is lower than the freezer
door, raise the refrigerator door by turning the
adjustment screw clockwise using a
7
/
16
inch
wrench. (See illustration.)
3 If the freezer door is lower than the refrigerator
door, raise the freezer door by turning the
adjustment screw clockwise using a
7
/
16
inch
wrench. (See illustration.)
4 After leveling, verify door stop contacts lower hinge
and top of door does not contact upper hinge
through full movement of door (from fully closed to
fully open).
5 Reinstall set screw, locking the door height.
