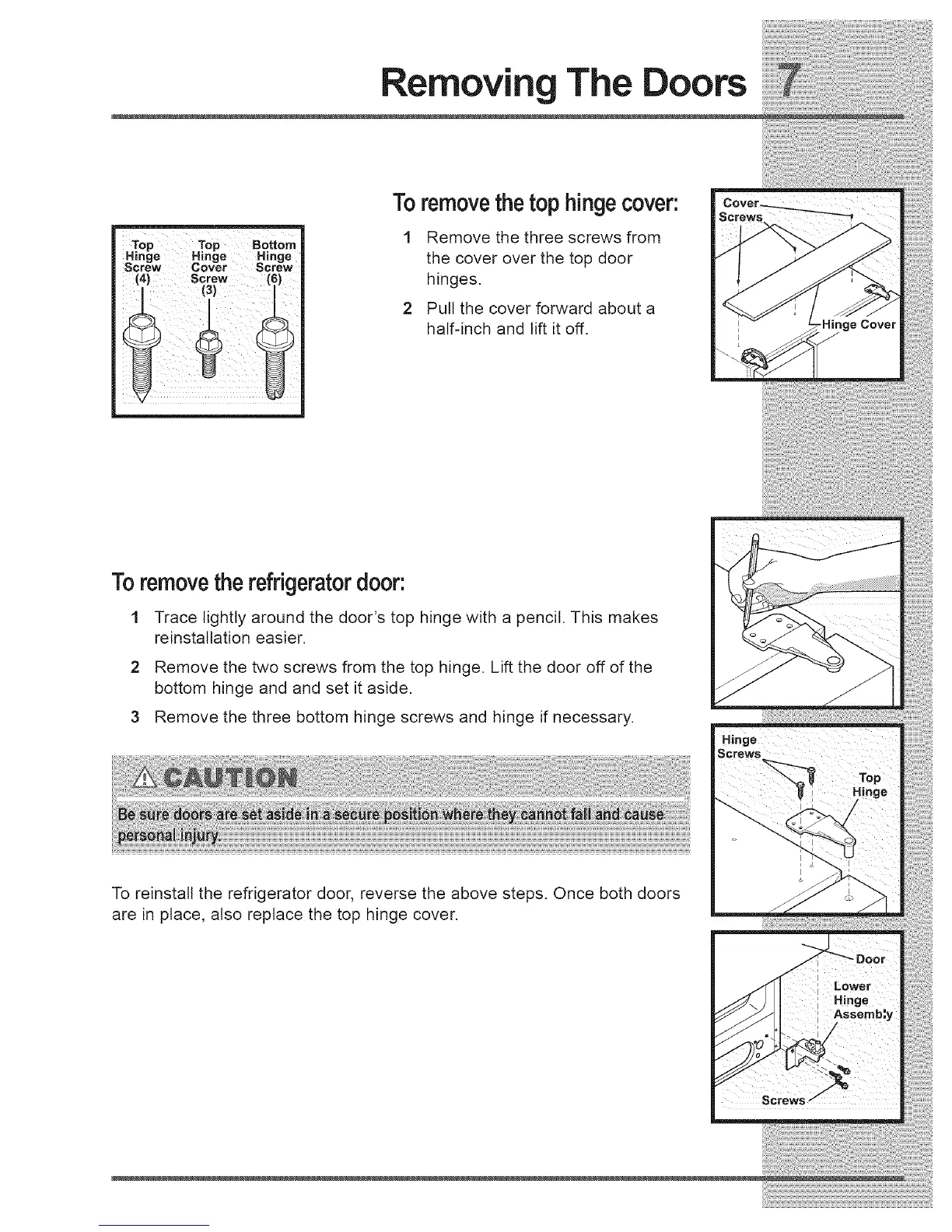

Removing The Doors
Toremovethetop hingecover:
1 Remove the three screws from
the cover over the top door
hinges.
2 Pull the cover forward about a
half-inch and lift it off.
Toremovetherefrigeratordoor:
1 Trace lightly around the door's top hinge with a pencil. This makes
reinstallation easier.
2 Remove the two screws from the top hinge. Lift the door off of the
bottom hinge and and set it aside.
3 Remove the three bottom hinge screws and hinge if necessary.
To reinstall the refrigerator door, reverse the above steps. Once both doors
are in place, also replace the top hinge cover.
