If the air filter becomes clogged with dust, air flow is obstructed and reduces cooling
efficiency. The air filter should be cleaned every two weeks.

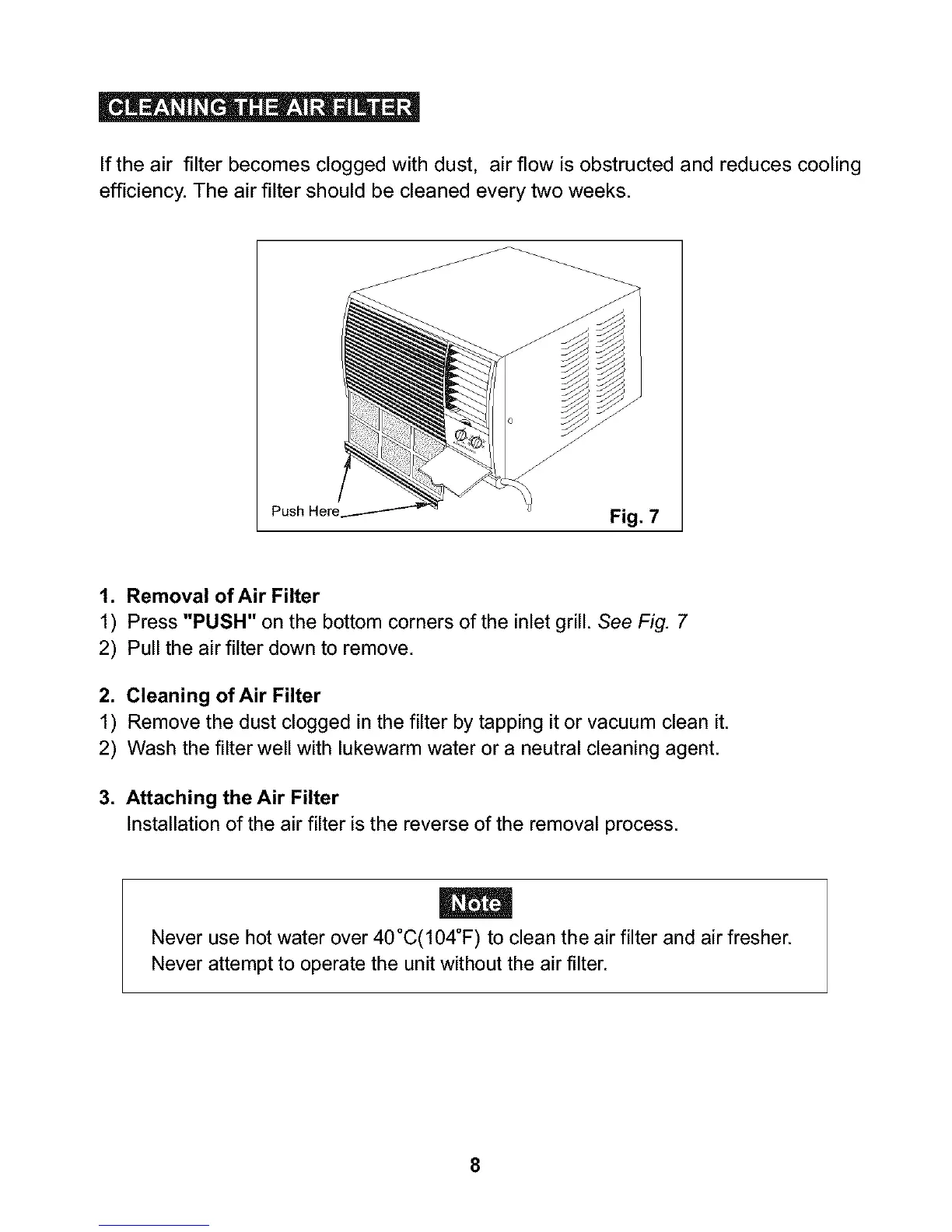

Fig. 7
1. Removal of Air Filter
1) Press "PUSH" on the bottom corners of the inlet grill. See Fig. 7
2) Pull the air filter down to remove.
2, Cleaning of Air Filter
1) Remove the dust clogged in the filter by tapping it or vacuum clean it.
2) Wash the filter well with lukewarm water or a neutral cleaning agent.
3. Attaching the Air Filter
Installation of the air filter is the reverse of the removal process.
Never use hot water over 40°C(104°F) to clean the air filter and air fresher.
Never attempt to operate the unit without the air filter.
8
