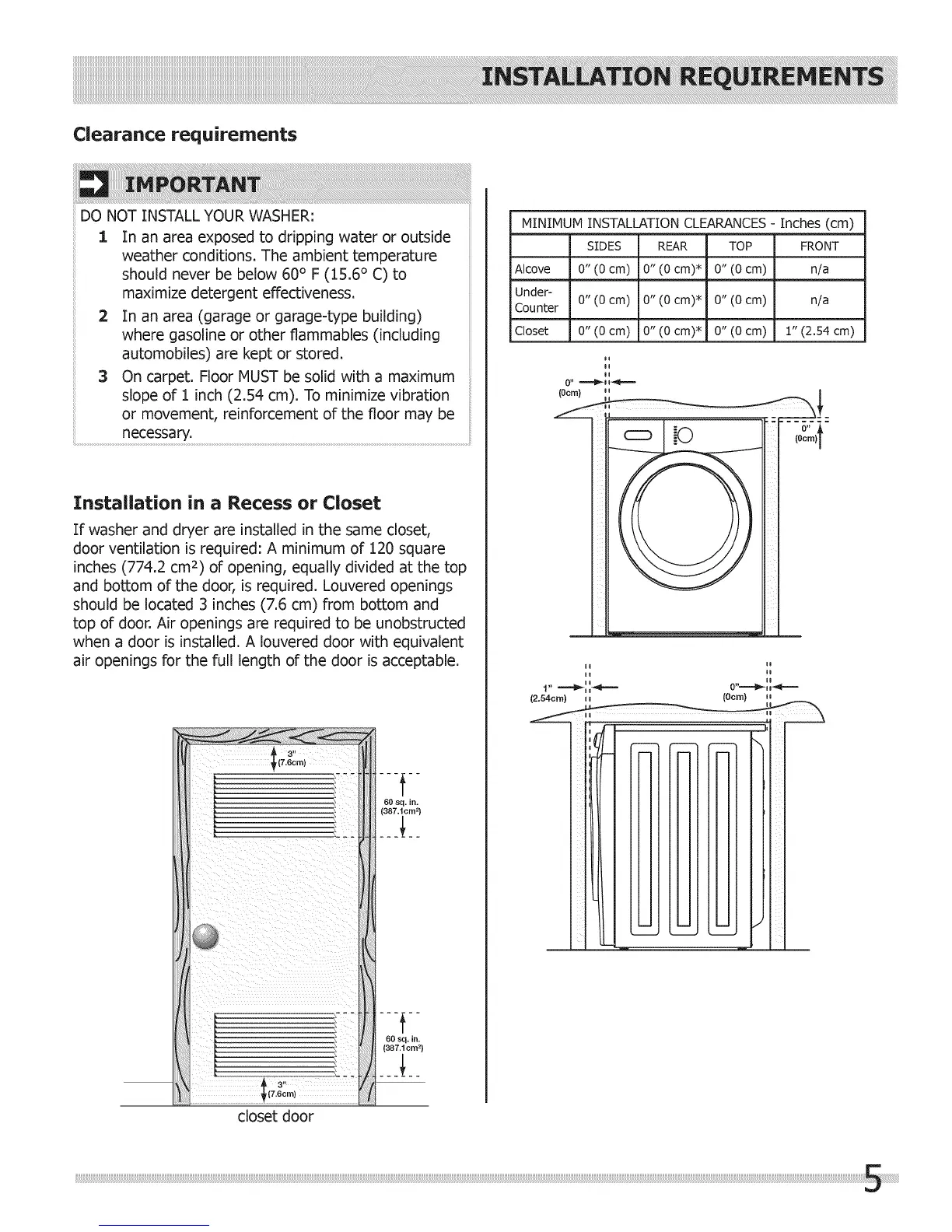

Clearance requirements
DO NOT INSTALL YOUR WASHER:
1 In an area exposed to dripping water or outside
weather conditions. The ambient temperature
should never be below 60° F (15.6 ° C) to
maximize detergent effectiveness.
2 In an area (garage or garage-type building)
where gasoline or other flammables (including
automobiles) are kept or stored.
3 On carpet. Floor MUST be solid with a maximum
slope of 1 inch (2.54 cm). To minimize vibration
or movement, reinforcement of the floor may be
necessary.
Installation in a Recess or Closet
If washer and dryer are installed in the same closet,
door ventilation is required: A minimum of 120 square
inches (774.2 cm 2) of opening, equally divided at the top
and bottom of the door, is required. Louvered openings
should be located 3 inches (7.6 cm) from bottom and
top of door. Air openings are required to be unobstructed
when a door is installed. A Iouvered door with equivalent
air openings for the full length of the door is acceptable.
3'
i(7.6crn)
closet door
60 sq. in.
(387.1cm 2)
60 sq. in.
(387.1cm 2)
MINIMUM INSTALLATION CLEARANCES - Inches (cm)
SIDES REAR TOP FRONT
Alcove 0" (0 cm) 0" (0 cm) _ 0" (0 cm) n/a
Under-
Counter O" (0 cm) O" (0 cm) _ O" (0 cm) n/a
Closet O" (0 cm) O" (0 cm) _ O" (0 cm) 1" (2.54 cm)
II
II
10
(oom) ]]
(Ocm
