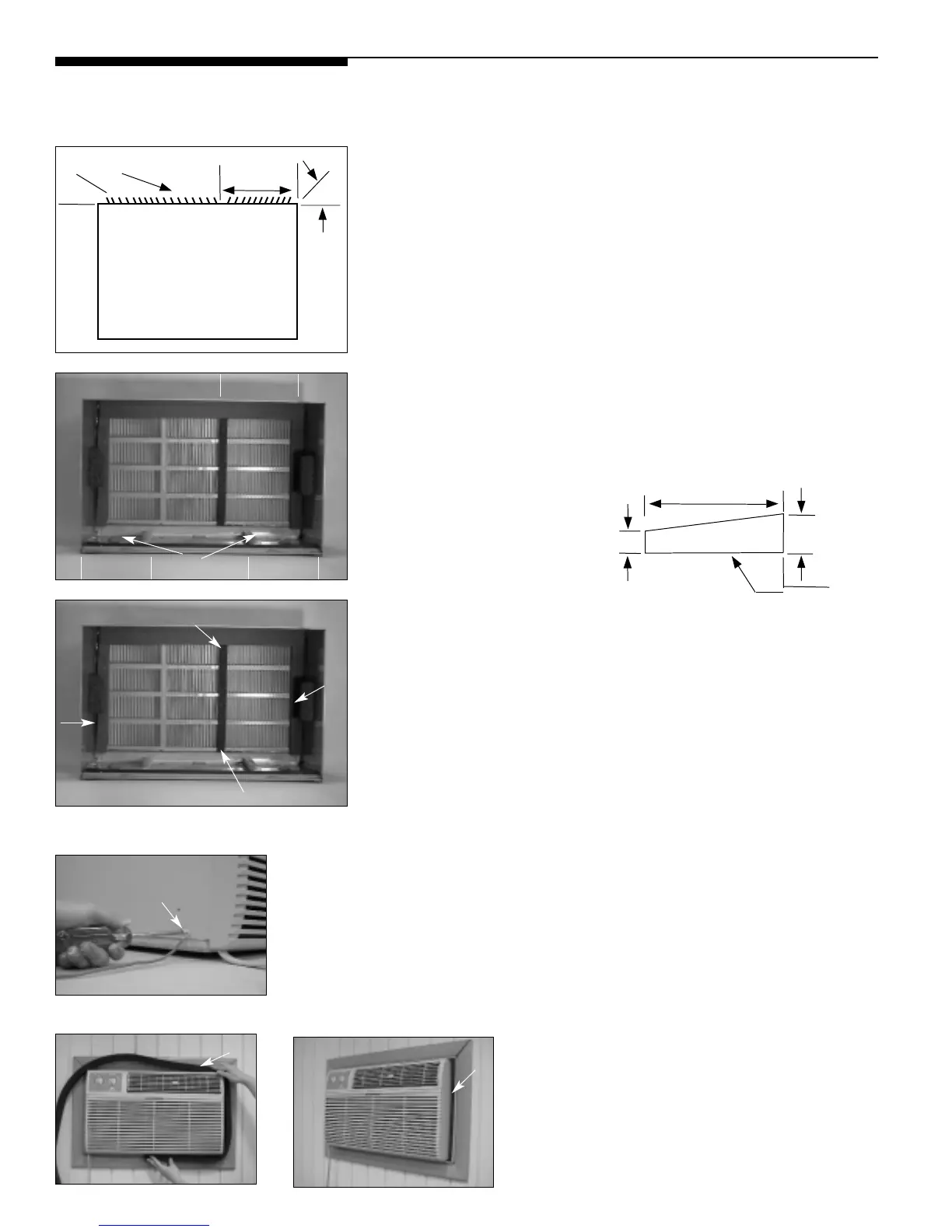

Wall Sleeve Brands:
#5 Sears or Carrier (51S Series) 18
5
⁄
8
"Deep
6
Rear Louvers
60°
10"
60°
Top View
9-1/2"
1. Redirect the louvers at the back of the wall sleeve as shown in the
illustration. The use of pliers is recommended.
2. Attach (2) Tapered Spacer Blocks to the inside of the wall sleeve as
shown in the illustration.
DO NOTCUTTHESE BLOCKS.
3. Attach the (1) 1
1
⁄
2
"x 3/8"x 26
1
⁄
2
"long seals and the
(2) 1
1
⁄
2
"x 3/8"x 14'long seals as shown in the illustration.
4. Attach the 1'x 3/4"x 14"long seal to inside of the louvered panel as
shown in the illustration. Install the new unit into the wall sleeve.
6. Install the 1"x 1
1
⁄
2
"x 84"long stuffer seal between the wall sleeve and the unit. A
flat bladed screwdriver or putty knife is recommended.
5. Attach the ground wire to the unit as shown.
7. Assemble and install the Trim Frame.
(see Trim Frame)
3/4"
17"
13"
1"
Protection Paper Backing
Tapered Spacer Block
2
3
3
3
4
6
6
5
← 10"‹→
←6
1
⁄
2
"‹→ ←6
1
⁄
2
"‹→
To Next Page
