IMPORTANT
DO NOT INSTALL YOUR WASHER:
1 In an area exposed to dripping water or outside
weather conditions. The ambient temperature
should never be below 60° F (15.6° C) to
maximize detergent effectiveness.
2 In an area (garage or garage-type building)
where gasoline or other fl ammables (including
automobiles) are kept or stored.
3 On carpet. Floor MUST be solid with a maximum
slope of 1 inch (2.5 cm). To minimize vibration
or movement, reinforcement of the fl oor may be
necessary.
INSTALLATION REQUIREMENTS
27” (68.5 cm) 29” (73.5 cm)
37”
(94 cm)
12”
(30.5 cm)
43”
(109 cm)
60” (152.5 cm)
to clear open lid

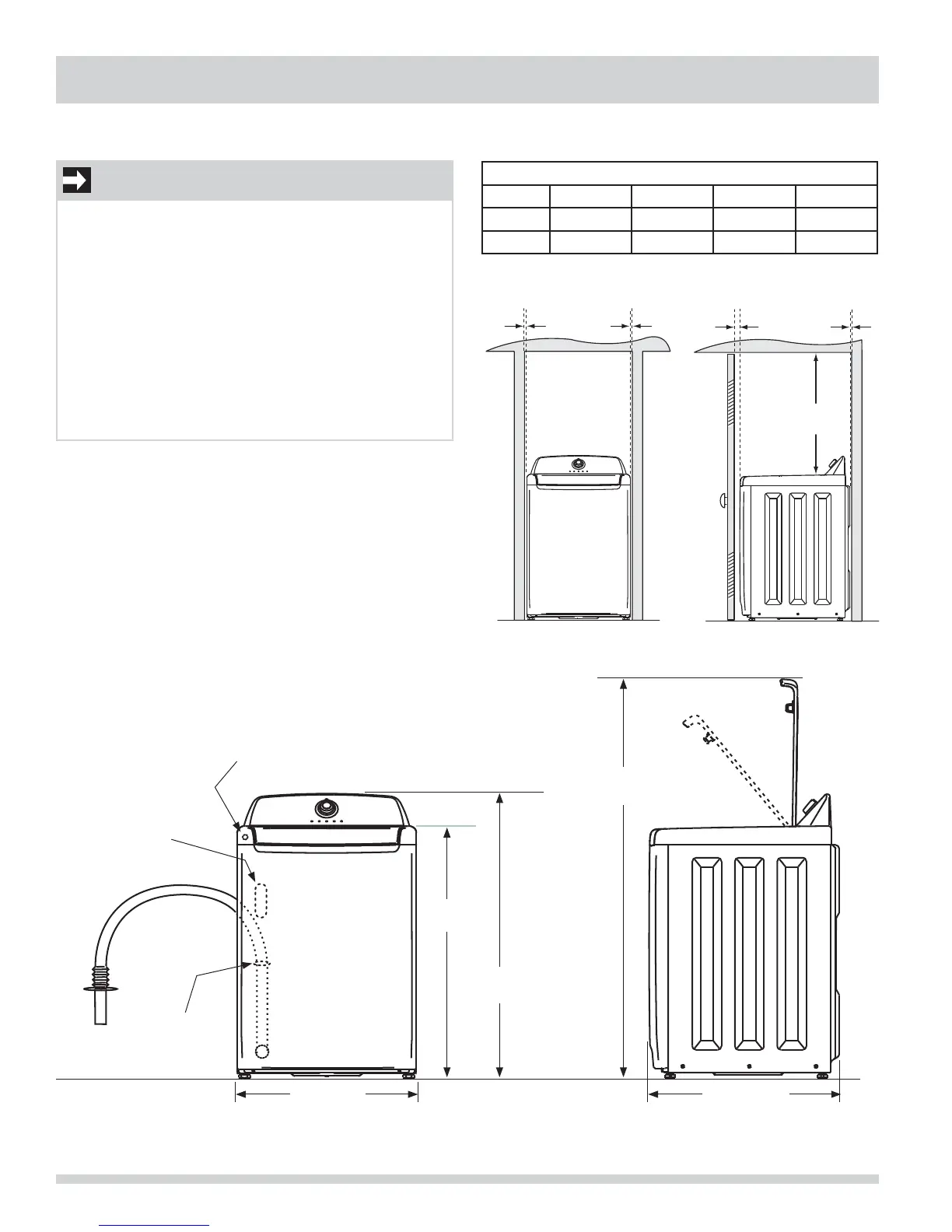

MINIMUM INSTALLATION CLEARANCES - Inches (cm)
SIDES REAR TOP FRONT
Alcove 0” (0 cm) 0” (0 cm)* 23” (58.5 cm) n/a
Closet 0” (0 cm) 0” (0 cm)* 23” (58.5 cm) 1” (2.5 cm)
0”
(0 cm)
0”
(0 cm)
1”
(2.5 cm)
0”
(0 cm)
23”
(58.5 cm)
Washer Dimensions
drain hose reten-
tion clamp on rear
of washer
2
water supply
connection on
rear of washer
power cord attachment
location on rear of unit
1
1
Power supply cord length on gas unit approximately 60 inches (152.5 cm).
2
Loose drain hose length beyond clamp approximately 52 inches (132 cm).
Clearance requirements
