Frigidaire FAHE1011MW0 Installation

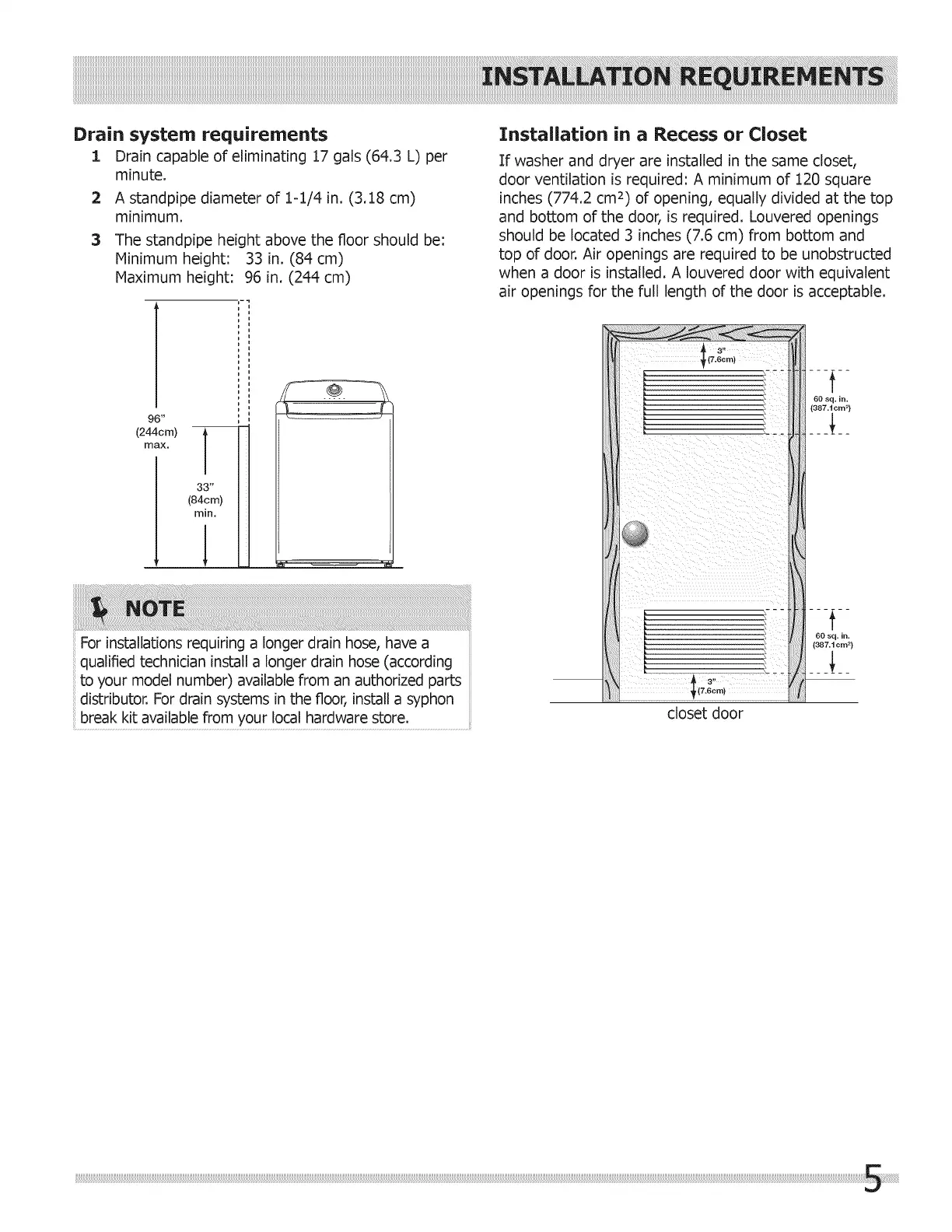

Drain system requirements
1 Drain capable of eliminating 17 gals (64.3 L) per
minute.
2 Astandpipe diameter of 1-1/4 in. (3.18 cm)
minimum.
3 The standpipe height above the floor should be:
Minimum height: 33 in. (84 cm)
Maximum height: 96 in. (244 cm)
96"
(244cm) |
max.
33”
(84cm)
min.
|
& NOTE
For installations requiring a longer drain hose, have a
qualified technician install a longer drain hose (according
to your model number) available from an authorized parts
distributor. For drain systems in the floor, install a syphon
break kit available from your local hardware store.
INSTALLATION REQUIREMENTS
Installation in a Recess or Closet
If washer and dryer are installed in the same closet,
door ventilation is required: A minimum of 120 square
inches (774.2 cm) of opening, equally divided at the top
and bottom of the door, is required. Louvered openings
should be located 3 inches (7.6 cm) from bottom and
top of door. Air openings are required to be unobstructed
when a door is installed. A louvered door with equivalent
air openings for the full length of the door is acceptable.
3°
(7.6em)
60 sq. in.
(887.1cm2}
Qe |p QR =
(7.6cem}
closet door
