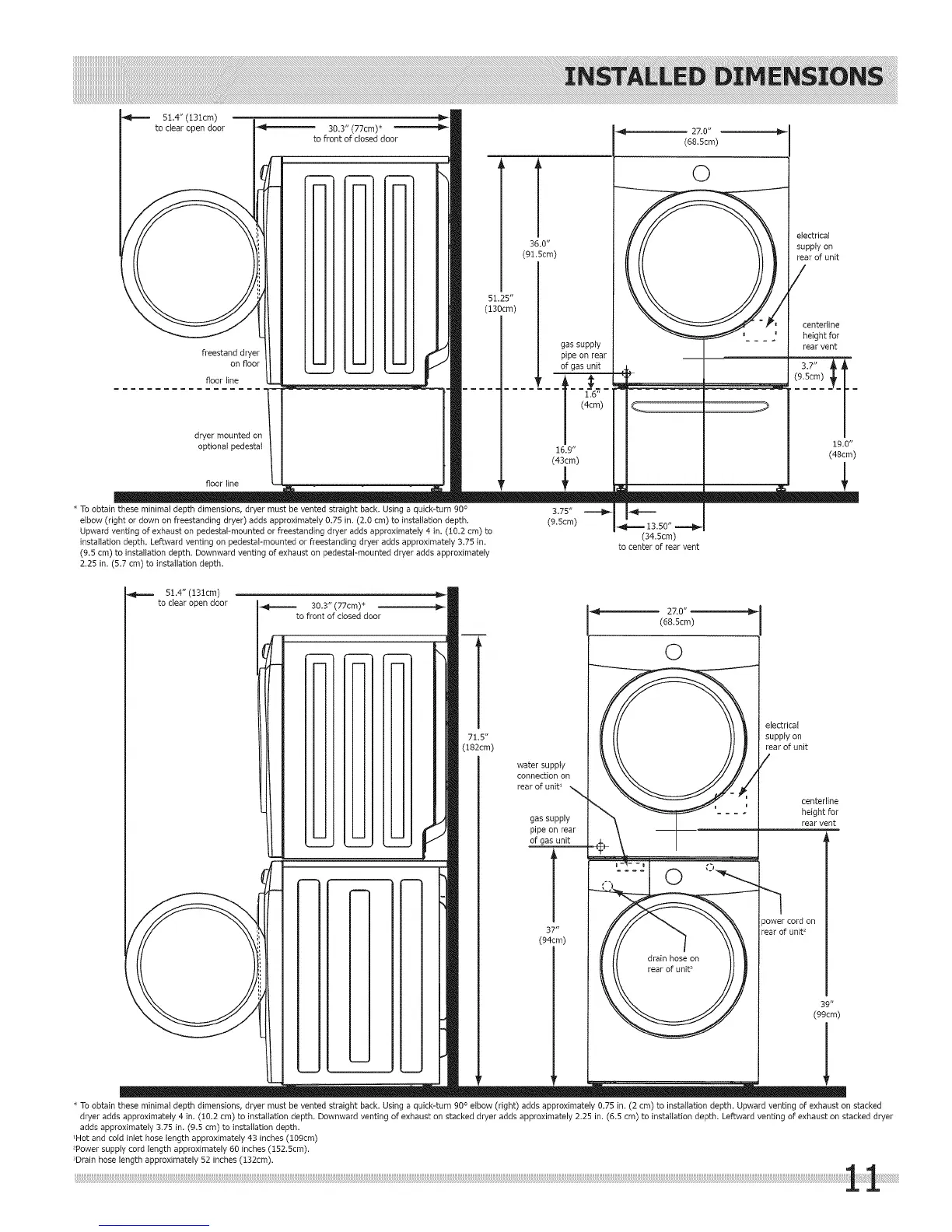

51.4" (131cm)
freestanddryer
on floor
floorline
dryer mounted on
op_onalpedes_l
floorline
30.3"(77cm)*
to front of closed door
* To obtain these minimal depth dimensions, dryer must be vented straight back. Using a quick-turn 90°
elbow (right or down on freestanding dryer) adds approximately 0.75 in. (2.0 cm) to installation depth.
Upward venting of exhaust on pedestal-mounted or freestanding dryer adds approximately 4 in. (10.2 cm) to
installation depth. Leftward venting on pedestaFmounted or freestanding dryer adds approximately 3.75 in.
(9.5 cm) to installation depth. Downward venting of exhaust on pedestal-mounted dryer adds approximately
2.25 in. (5.7 cm) to installation depth.
gas supply
pipe on rear
of gas unit
51.25"
(130cm)
[
36.0"
(91.5cm)
16.9"
(43cm)
3.75"
(9.5cm)
27.0"
(68.5cm)
©
electrical
supply on
rear of unit
centerline
height for
rear vent
(34.5cm)
to center of rear vent
51,4" (131cm)
to clear open door
30.3" (77cm)*
to front of closed door
71.5"
(182cm)
water supply
connection on
rear of unit 1
gas supply
pipe on rear
of gas unit
37"
(94cm)
27.0"
(68.5cm)
0
0
drain hose on
rear of unit 3
electrical
supply on
rear of unit
power cord on
rear of unit 2
centerline
height for
rear vent
39"
(99cm)
19.0"
(48cm)
* To obtain these minimal depth dimensions, dryer must be vented straight back. Using a quick-turn 90° elbow (right) adds approximately 0.75 in. (2 cm) to installation depth. Upward venting of exhaust on stacked
dryer adds approximately 4 in. (t0.2 cm) to installation depth. Downward venting of exhaust on stacked dryer adds approximately 2.25 in. (6.5 cm) to installation depth. Leftward venting of exhaust on stacked dryer
adds approximately 3.75 in. (9.5 cm) to installation depth.
1Hot and cold inlet hose length approximately 43 inches (t09cm)
2Power supply cord length approximately 60 inches (t52.5cm).
3Drain hose length approximately 52 inches (t32cm).
