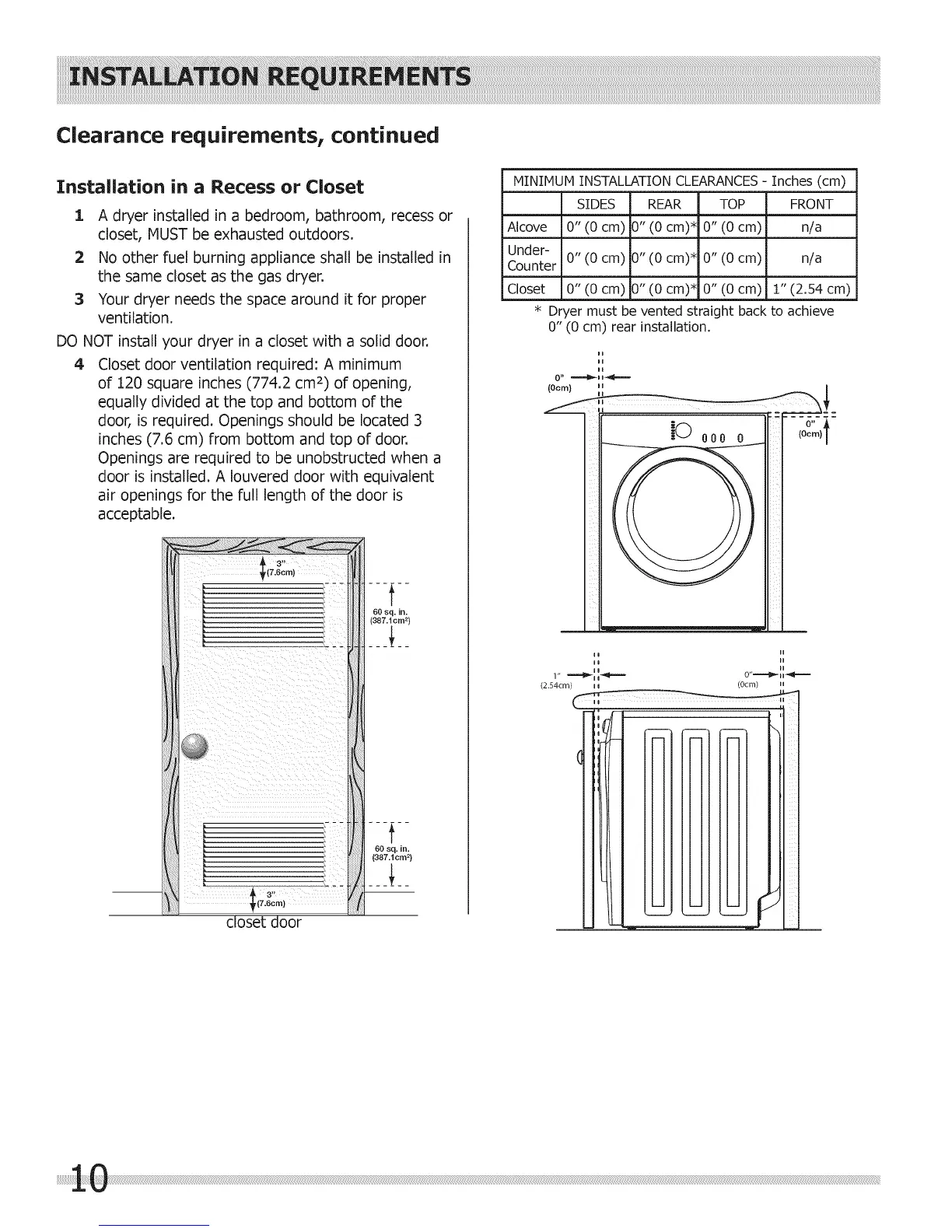

Clearance requirements, continued
Installation in a Recess or Closet
:[ A dryer installed in a bedroom, bathroom, recess or
closet, MUST be exhausted outdoors.
2 No other fuel burning appliance shall be installed in
the same closet as the gas dryer.
3 Your dryer needs the space around it for proper
ventilation.
DO NOT install your dryer in a closet with a solid door.
4 Closet door ventilation required: A minimum
of 120 square inches (774.2 cm 2) of opening,
equally divided at the top and bottom of the
door, is required. Openings should be located 3
inches (7.6 cm) from bottom and top of door.
Openings are required to be unobstructed when a
door is installed. A Iouvered door with equivalent
air openings for the full length of the door is
acceptable.
3"
(7.6c m]
closet door
-1--
60 sq. in.
(387.1cm =)
f
60 sq. in.
(387.1cm _)
MINIMUM INSTALLATION CLEARANCES- Inches (cm)
SIDES REAR TOP FRONT
Alcove _ " )" 0"
_0 (0 cm) (0 cm) _ (0 cm) n/a
Under- 0" (0 cm) :)" (0 cm) _ 0" (0 cm) n/a
Counter
Closet _ " :)" 0" 1"
!0 (0 cm) (0 cm)* (0 cm) (2.54 cm)
Dryer must be vented straight back to achieve
0" (0 cm) rear installation.
0" t
(Ocm)
To Next Page
