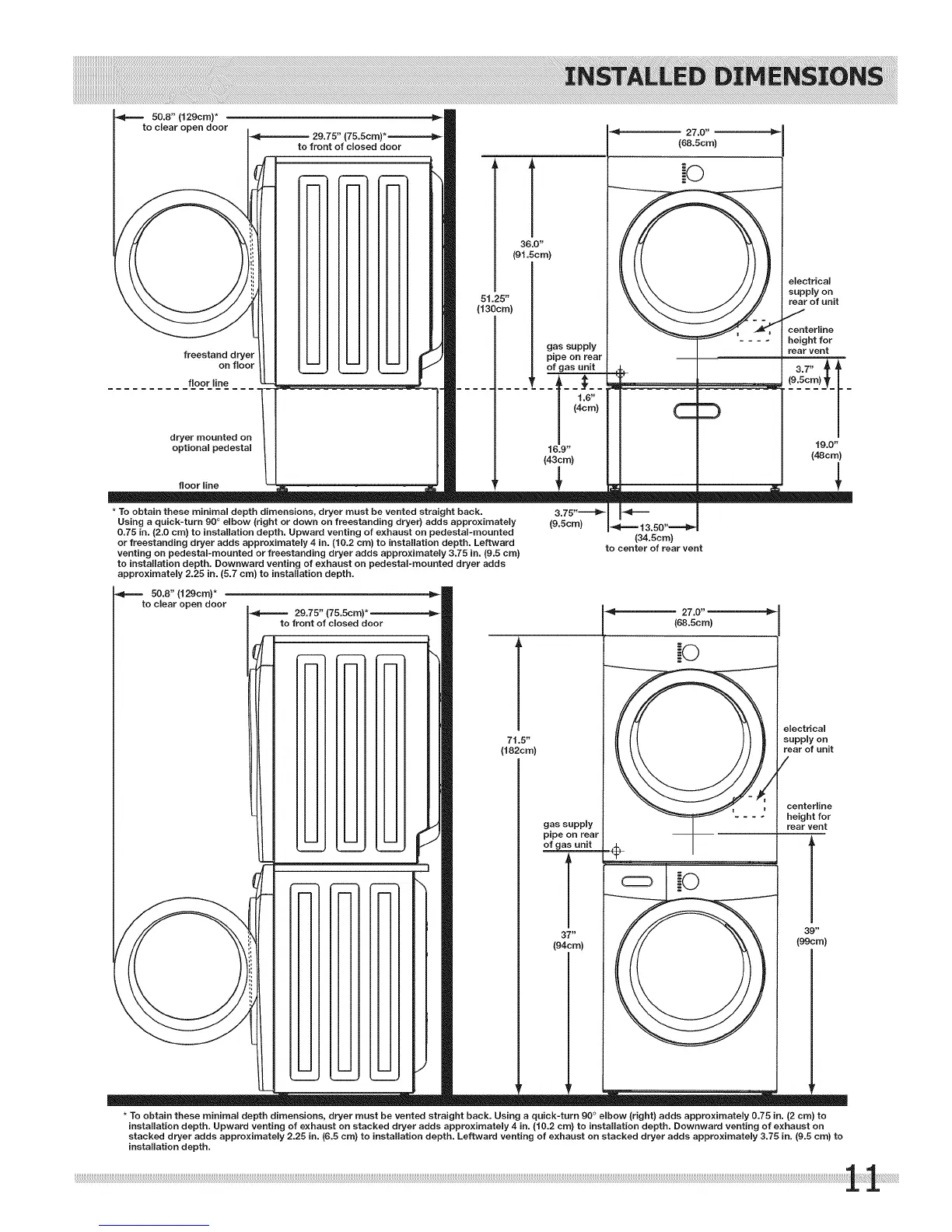

50.8"(129cm)*
toclearopendoor
freeatanddryer
onfloor
dryermountedon
optionalpedestal
(75.5cm)*========_
tofrontofcloseddoor
51.25"
(130cm)
35.0"
(91.5cm)
* To obtain these minimal depth dimensions, dryer must be vented straight back.
Using a quick-turn 90 ° elbow (right or down on freestanding dryer} adds approximately
0.75 in. (2.0 cm} to installation depth. Upward venting of exhaust on pedestal-mounted
or freestanding dryer adds approximately 4 in. (10.2 cm) to installation depth. Leftward
venting on pedestal-mounted or freestanding dryer adds approximately 3.75 in. (9.5 cm}
to installation depth. Downward venting of exhaust on pedestal-mounted dryer adds
approximately 2.25 in. (5.7 cm) to installation depth.
50.8" (129cm} *
to clear open door
_q_===== 29.75" (75.5cm)*_
to front of closed door
F
71.5"
(182cm)
27.0"
(68.5cm)
gas supply
pipe on rear
of gas unit
'==i ='
16,9"
(43cm)
3.75"_ _l====
(9.5cm}
(34.5cm)
to center of rear vent
electrical
supply on
rear of unit
height for
rear vent
19.0"
(48cm)
gas supply
pipe on
of gas unit
37"
(g4cm)
27.0'
(Sa.5cm)
e_ectrical
supply on
rear of unit
centerline
.... height for
rear vent
(99cm)
* To obtain these minimal depth dimensions, dryer must be vented straight back. Using a quick-turn 90 ° elbow (right) adds approximately 0.75 in. (2 cm) to
installation depth. Upward venting of exhaust on stacked dryer adds approximately 4 in. (10.2 cm} to installation depth. Downward venting of exhaust on
stacked dryer adds approximately 2.25 in. (6.5 cm} to installation depth. Leftward venting of exhaust on stacked dryer adds approximately 3.75 in. (9.5 cm) to
installation depth.
