INSTALLATION REQUIREMENTS
* Dryer must be vented straight back to achieve
0” (0 cm) rear installation.
centerline height
for rear vent
MINIMUM INSTALLATION CLEARANCES - Inches (cm)
SIDES REAR TOP FRONT
Alcove 0” (0 cm) 0” (0 cm)* 23” (58.5 cm) n/a
Closet 0” (0 cm) 0” (0 cm)* 23” (58.5 cm) 1” (2.5 cm)
1”
(2.5 cm)
0”
(0 cm)
23”
(58.5 cm)
Clearance requirements
IMPORTANT
DO NOT INSTALL YOUR DRYER:
1 In an area exposed to dripping water or outside
weather conditions.
2 In an area where it will come in contact with
curtains, drapes, or anything that will obstruct
the fl ow of combustion and ventilation air.
3 On carpet. Floor MUST be solid with a maximum
slope of 1 inch (2.54 cm).
0”
(0 cm)
0”
(0 cm)
27” (68.5 cm)
29” (73.5 cm)
to front of closed door
50” (127 cm)
to clear open door
fl oor line
1.6”
(4 cm)
3.75”
(9.5 cm)
3.7”
(9.5 cm)
43”
(109 cm)
37”
(94 cm)
gas supply
pipe on rear
of gas unit
electrical
supply on
rear of unit
1

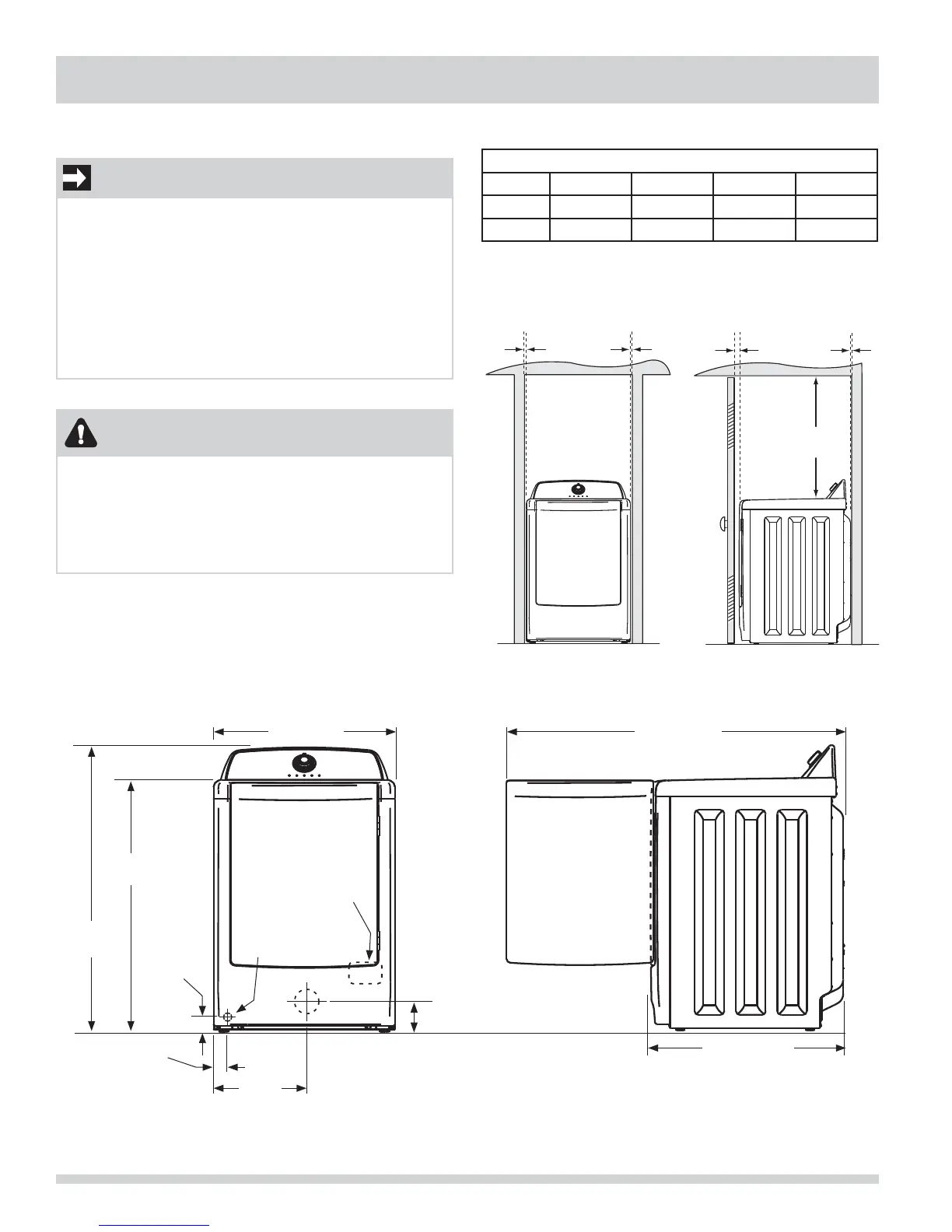

Dryer Dimensions
1
Power supply cord length on gas unit approximately 60 inches (152.5 cm).
WARNING
EXPLOSION HAZARD
Do not install the dryer where gasoline or other
fl ammables are kept or stored. If the dryer is installed
in a garage, it must be a minimum of 18 inches (45.7
cm) above the fl oor. Failure to do so can result in
death, explosion, fi re or burns.
