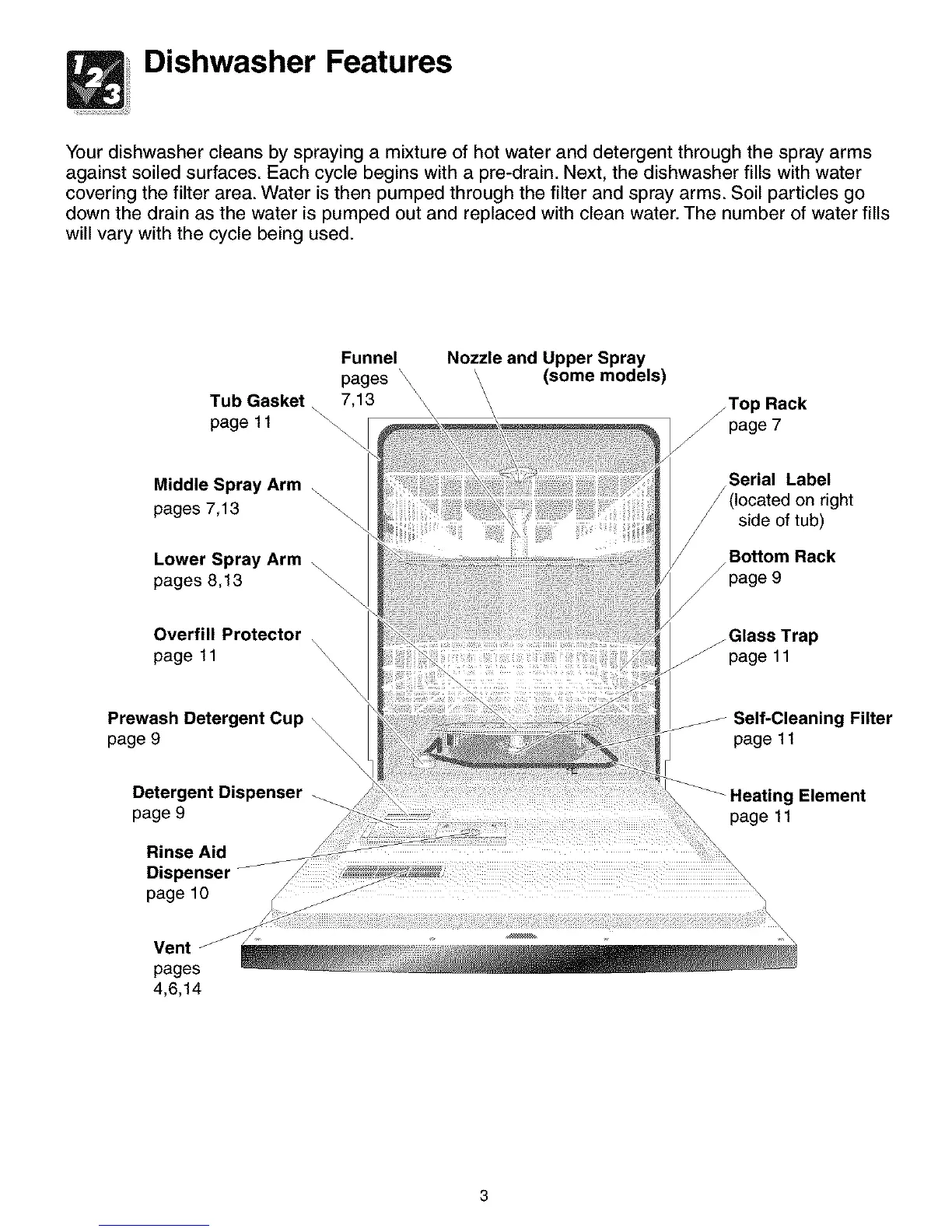

Dishwasher Features
Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms
against soiled surfaces. Each cycle begins with a pre-drain. Next, the dishwasher fills with water
covering the filter area. Water is then pumped through the filter and spray arms. Soil particles go
down the drain as the water is pumped out and replaced with clean water. The number of water fills
will vary with the cycle being used.
Tub Gasket ,_
page 11
Middle Spray Arm
pages 7,13
Lower Spray Arm
pages 8,13
Overfill Protector
page 11
Prewash Detergent Cup \
page 9
Funnel
pages \
7,13
Nozzle and Upper Spray
(some models)
_Top Rack
page 7
Serial Label
(located on right
/ side of tub)
Bottom
_page 9 Rack
jGlass Trap
page 11
_Self-Cleaning Filter
page 11
Detergent Dispenser
page 9
Rinse Aid
Dispenser _
page 10
_Heating Element
page 11
Vent
pages
4,6,14
3
