OVEN ELEMENT - OPERATION
ELECTRONIC OVEN CONTROL (continued)
Baking mode -First rise: Bake element is on 40 seconds per minute.
Broil element is on 19 seconds per minute.
-Normal baking: Bake element is on between 40 and 42 seconds per minute.
Broil element is on between 5 and 8 seconds per minute.
Broiling mode Broil element is on for 60 seconds per minute.
Convection mode -First rise: Bake element is on 40 seconds per minute.
Broil element is on 19 seconds per minute.
-Convection baking: Convection element is on for 60 seconds per minute.
Convection Roast -First rise: Bake element is on 40 seconds per minute.
Broil element is on 19 seconds per minute.
-Convection roast: Bake element is on for 50 seconds per minute.
Broil element is on for 9 seconds per minute.
Clean mode: Bake element is on for 60 seconds per minute
and broil element is off.
-Models with hidden Bake element is on for 20 seconds per minute.
bake: Broil element is on for 40 seconds per minute.
NOTE: SELF-CLEANING CYCLE CANNOT BE STARTED IF THE OTHER OVEN IS IN OPERATION, AND
YOU CANNOT OPERATE THE SECOND OVEN IF THE OTHER OVEN IS ON A SELF-CLEANING
CYCLE.
P4
P2
P1
P3
P8

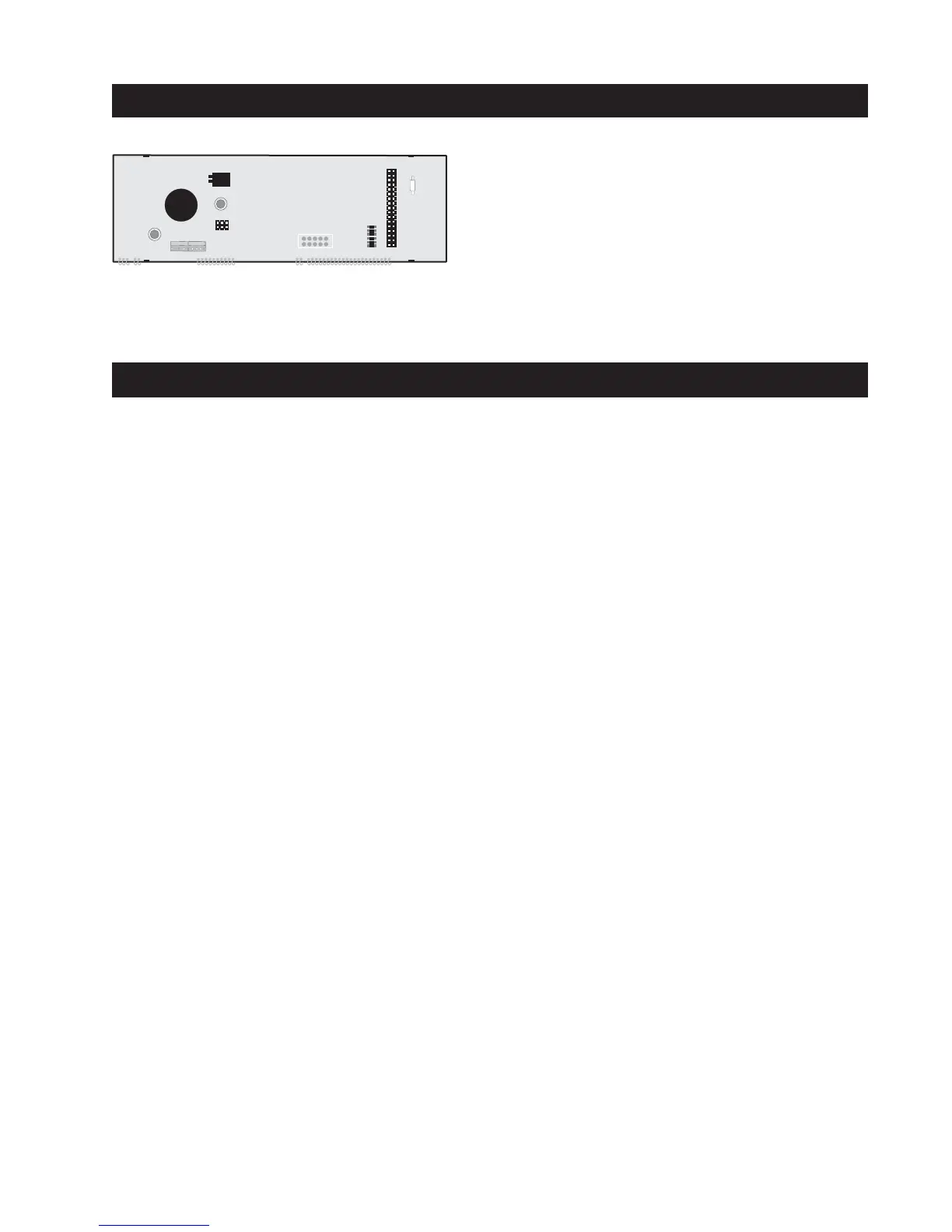

Electronic oven control display board
P1 connector: This 9 pin connector is connected to the relay board.
P3 connector: This 1 or 2 X 17 pin connector is connected to the keyboard.
P4 connector: This 6 pin connector is used for Micro programming.
