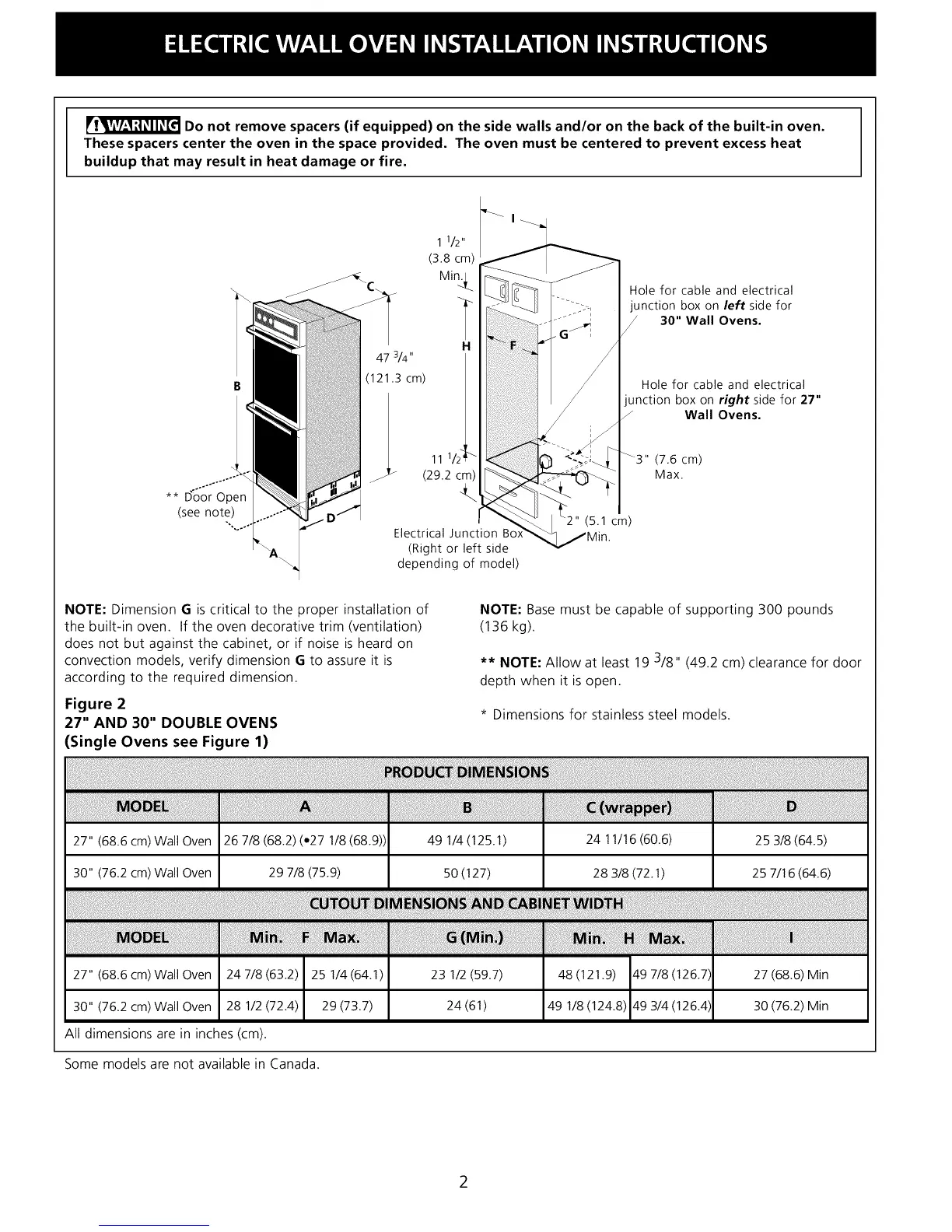

Do not remove spacers (if equipped) on the side walls and/or on the back of the built-in oven.
These spacers center the oven in the space provided. The oven must be centered to prevent excess heat
buildup that may result in heat damage or fire.
\
** E)o'or 0
(see note)
1 1/2"
(3.8 cm)
Minj_
H
47 3/4" I
(121.3 cm)
11 1/
z (29.2 cm)
-t.
Electrical Junction
(Right or left side
depending of model)
Hole for cable and electrical
junction box on left side for
/ 30" Wall Ovens.
/
Hole for cable and electrical
junction box on right side for 27"
/ Wall Ovens.
(5.1 cm)
NOTE: Dimension G is critical to the proper installation of
the built-in oven. If the oven decorative trim (ventilation)
does not but against the cabinet, or if noise is heard on
convection models, verify dimension G to assure it is
according to the required dimension.
Figure 2
27" AND 30" DOUBLE OVENS
(Single Ovens see Figure 1)
NOTE: Base must be capable of supporting 300 pounds
(136 kg).
** NOTE: Allow at least 19 3/8" (49.2 cm) clearance for door
depth when it is open.
* Dimensions for stainless steel models.
27" (68.6 cm) Wall Oven 26 7/8 (68.2) (,27 1/8 (68.9))
30" (76.2 cm) Wall Oven 29 7/8 (75.9)
49 1/4 (125.1) 24 11/16 (60.6) 25 3/8 (64.5)
50 (127) 28 3/8 (72.1) 25 7/16 (64.6)
All dimensions are in inches (cm).
Some models are not available in Canada.
