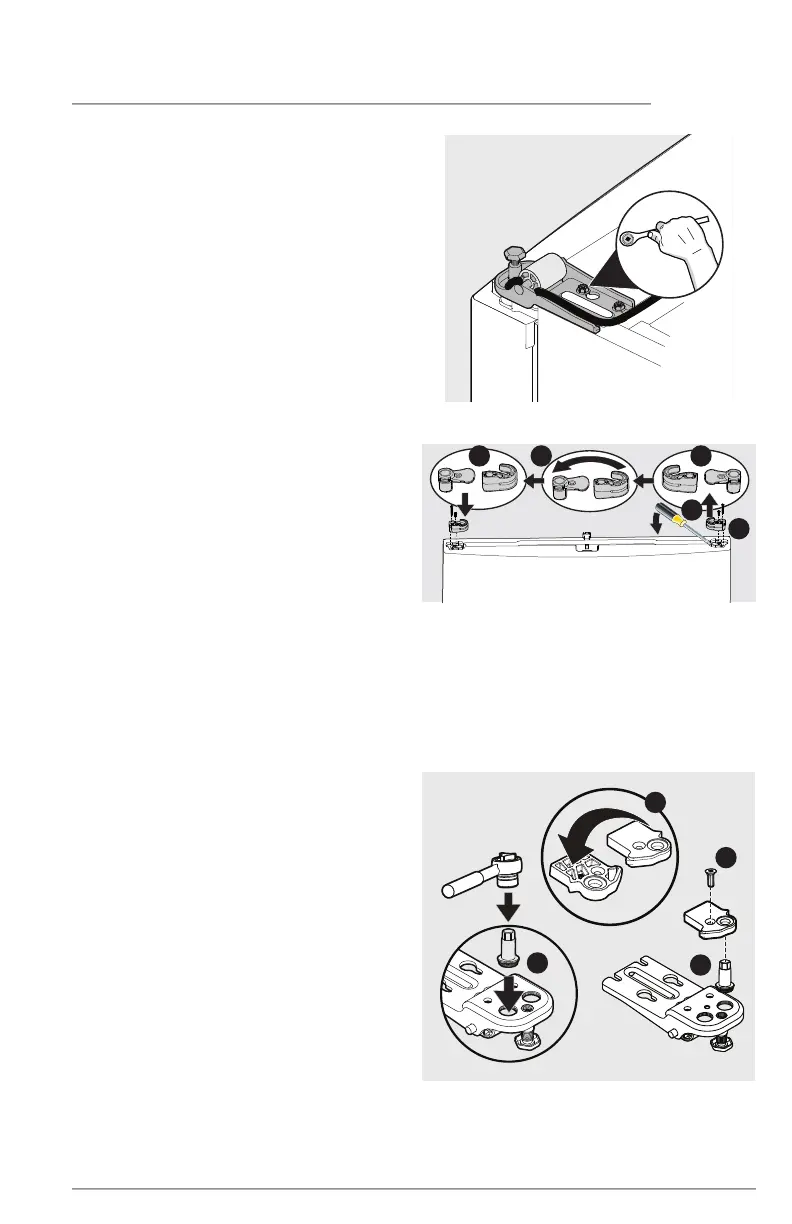

DOOR REMOVAL/REVERSAL
(UNITS WITH TEMPERATURE CONTROL OUTSIDE)
7. Remove the bottom hinge using
5/16" (8mm) wrench (see Figure 4).
8. Using a Phillips™ screwdriver,
remove the screws from the hinge
bearing and the door closer (see
Figure 5A).
9. Using a flathead screwdriver, gently
pry the door closer/hinge bearing
assembly out of the door (see Fig-
ure 5B).
10. Separate the door closer and hinge
bearing (see Figure 5C).
11. Flip the door closer over 180° and
reinstall the door closer onto the
hinge bearing (see Figure 5D).
12. Using a Phillips™ screwdriver, attach
the door closer/hinge bearing as-
sembly to the opposite side of the
door (see Figure 5E).
13. Remove the screw from the door
stop located on the bottom hinge,
using a Phillips™ screwdriver (see
Figure 6A).
14. Using a flathead screwdriver, gently
pry the door stop o the bottom
hinge pin (see Figure 6B)
15. Using a ratchet with a 12 mm socket,
remove the bottom hinge pin and in-
stall into the left hole (see Figure 6C) .
16. Flip the door stop over 180° and
reinstall onto the bottom hinge pin.
Secure the door stop with the screw
(see Figure 6D).
Figure 5
Bottom
C
B
A
DE
Figure 4
Figure 6
A
B
C
D
