Frigidaire FFGC3026SW - Typical Under Counter Installation with Oven

GAS COOKTOP INSTALLATION INSTRUCTIONS
(For 30" & 36" Models)
4

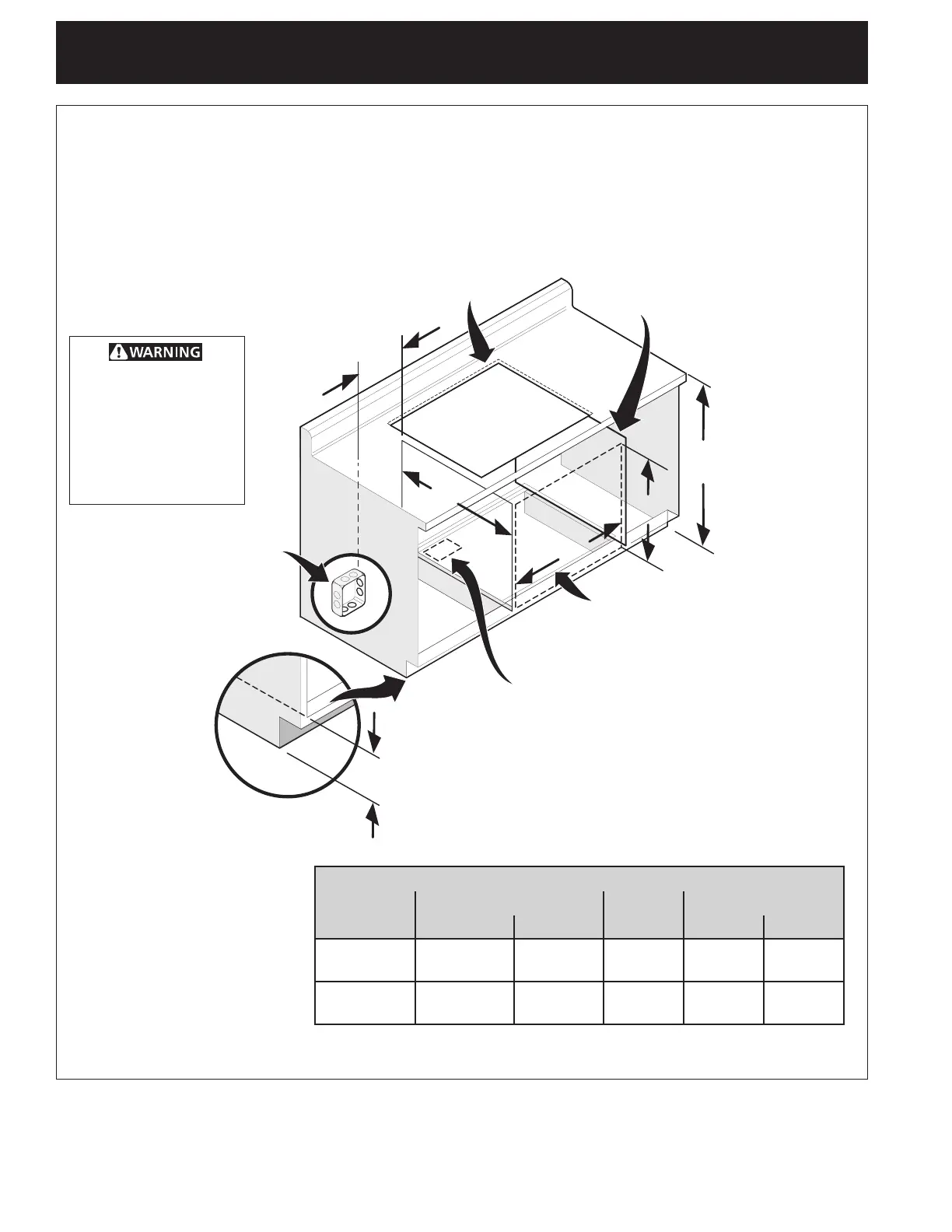

Typical Under Counter Installation of an Electric Built-in Oven
with a Cooktop Mounted Above
Figure 3
CUTOUT DIMENSIONS (INCHES (CM))
OVEN SIZE F. WIDTH G. DEPTH H. HEIGHT
Min. Max. Min. Min. Max.
27" (68.6) 24
7
/
8
" (63.1) 25¼" (64.1) 23½"
(59.7)
27¼"
(69.2)
28½"
(72.4)
30" (76.2) 28½" (72.4) 29" (73.7) 23½"
(59.7)
27¼"
(69.2)
28½"
(72.4)
Only certain cooktop models may be installed over
certain built-in electric oven models. Approved
cooktops and built-in ovens are listed by the MFG
ID number and product code (see the insert sheet
included in the literature package and cooktop
installation instructions for the dimensions).
G
F
H
36” Min.
(91.4 cm) Min.
Use 3/4” (1.9 cm) plywood, installed
on two runners, ush with toe plate.
Base must be capable of supporting
150 pounds (68 kg) for 27" models
and 200 pounds (90 kg) for 30"
models.
Cut an opening in wood base minimum 9” x
9” (23 X 23 cm), 2” (5 cm) from left side ller
panel, to route armoured cable to junction box.
* If no cooktop is installed
directly over the oven unit,
5” (12.7 cm) maximum is
allowed above the oor.
208/240 Volt junction box
for built-in oven.
Approx. 3”
(7.5 cm)
Cabinet side ller panels
are necessary to isolate the
unit from adjoining cabinets.
Cabinet side ller height
should allow for installation of
approved cooktop models
To reduce the risk of
personal injury and
tipping of the wall
oven, the wall oven
must be secured to
the cabinet (s) by
mounting brackets.
4 1/2” (11.5 cm) Max.*
