Frigidaire FFHB2740PP - Adjusting Door Height and Flipper Mullion

8
Flipper
Mullion
Screw
Flipper
Mullion
Hinge
Adjusting Flipper Mullion Screw
To adjust the ipper mullion:
1 Loosenthescrewlocatedontheippermullion
hinge.
2 Adjustippermullionheight.Forproperconnection
withtheippermullionguide,thereshouldbea
separation about the thickness of a coin (0.060 inches,
or1.5mm)betweentheguideandippermullion.
3 Re-tighten screw.
4 Lift the door while adjusting the washer. To raise
the door, rotate washer clockwise (when viewed
from the bottom). To lower door, rotate washer
counter-clockwise (when viewed from the bottom).
Flipper
Mullion
Mullion
Guide
Thickness
of a Coin

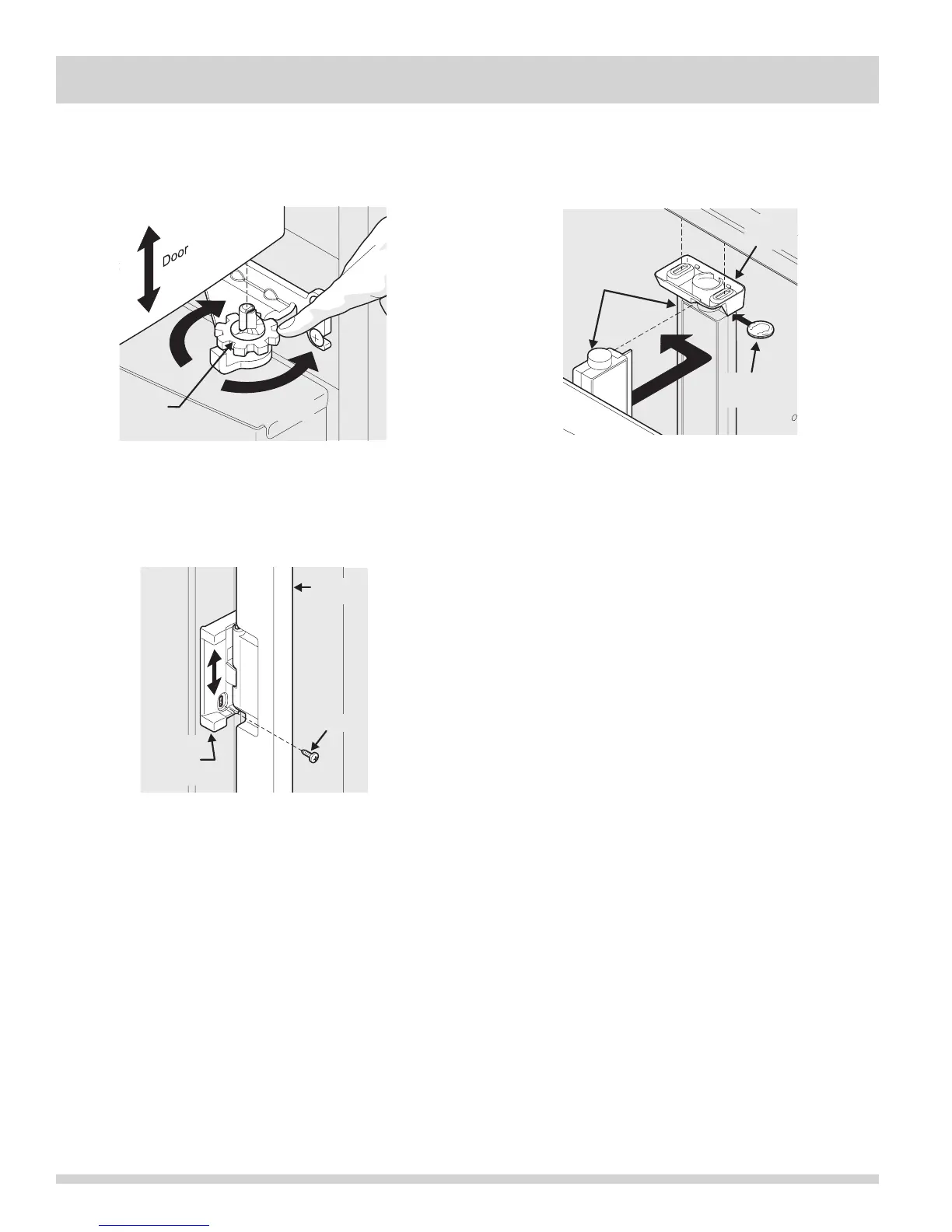

Adjusting Flipper Mullion Height
Lower
Door
Hinge
Washer
Raise
Door
Raising/Lowering Door
