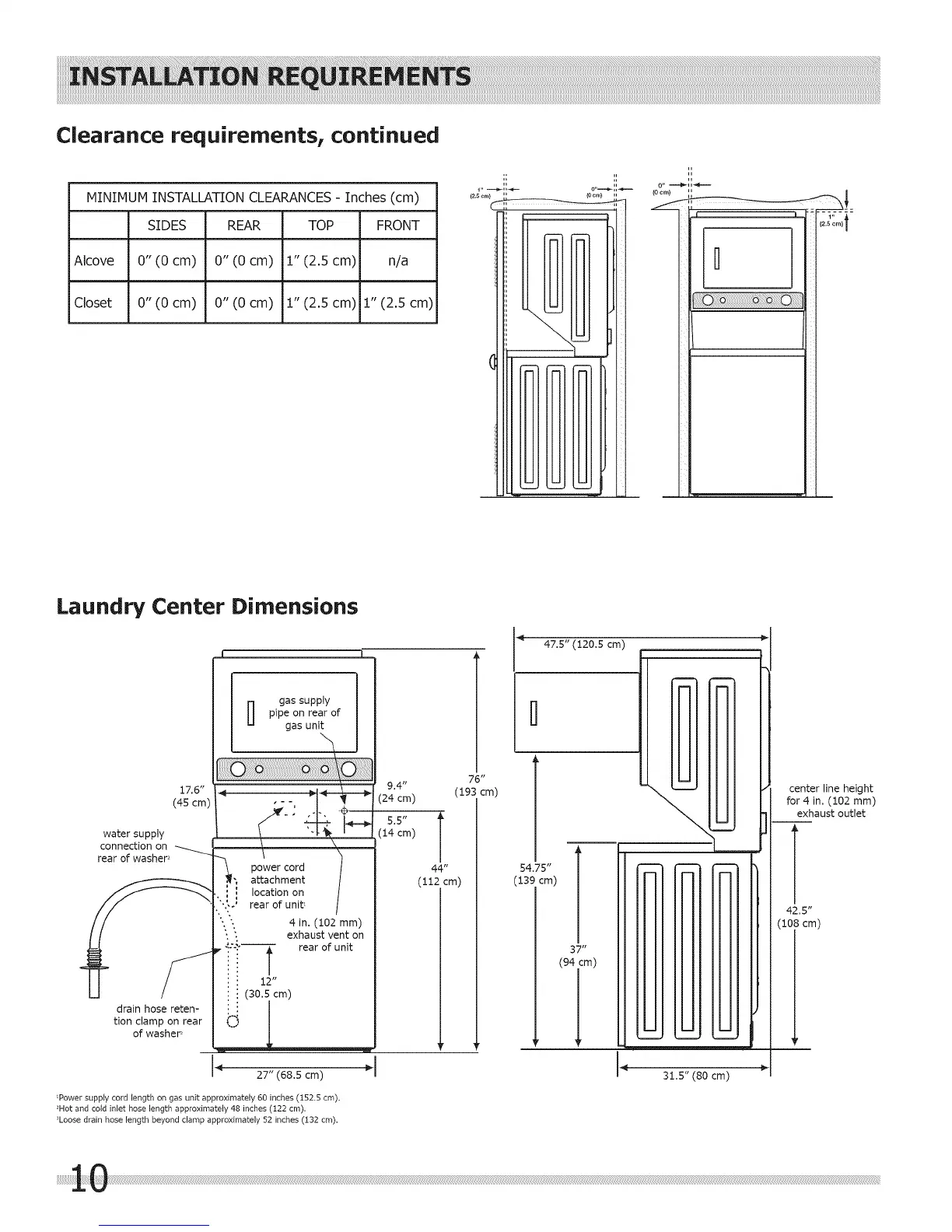

Clearance requirements, continued
MINIMUM INSTALLATION CLEARANCES- Inches (cm)
Alco_ve SIDES REAR TOP FRONT
0"(0 cm) 0"(0 cm) 1" (2.5 cm) n/a
Closet _ O"(Ocm) O"(Ocm) 1" (2.5cm) 1" (2.5cm)
1" ----_, ,-_-- o"--_II-_--=
io¢,T,) ,,,, i
- %T - m-
Laundry Center Dimensions
17.6"
(4S cm)
water supply
connection on
rear ofwasher 2
drain hose reten-
tion clamp on rear
of washer 2
D gas supply
pipe on rear of
gas unit
]
power cord
,_; attachment
L i location on
o rear ofunib
'"i ", exhaust vent on
' 4 in, (102 mm)
i:: 12"
: i (30.5 cm)
1Power supply cord length on gas unit approximately 60 inches (t52.5 cm).
2Hot and cold inlet hose length approximately 48 inches (122 cm),
3Loosedrain hose length beyond damp approximately 52 inches (132 cm).
76"
9.4" (193 cm)
(24 cm)
5.5"
(14 cm)
44"
(112 cm)
47.5" (120,5 cm)
D
54.75"
(139 cm)
37 l/
(94 cm)
"_ 31.5" (80 cm)
center line height
for 4 in. (102 mm)
exhaust outlet
42.5"
(108 cm)
To Next Page
