'2255(029$/5(9(56$/,16758&7,216
Í
NOTE
The direction in which
your refrigerator doors
open (door swing) can
be reversed, from left to
right or right to left, by
moving the door hinges
from one side to the other.
Reversing the door swing
should be performed by a
TXDOL¿HGSHUVRQ
IMPORTANT
Before you begin, turn the
refrigerator temperature
control to 0 and remove
the electrical power cord
from the wall outlet.
Remove any food from
door shelves.
Top Hinge
Cover Front
Screw
Top Hinge
Cover Rear
Screw
Bottom
Hinge
Screw
Top
Hinge
Screw
Adjustable
Wrench
Socket
Wrench Set
3/8" (10mm)
Fixed
Wrench
Tools Necessary:
Phillips
TM
Head
RU
RU
'RRUUHPRYDODQGUHYHUVDO
LQVWUXFWLRQV

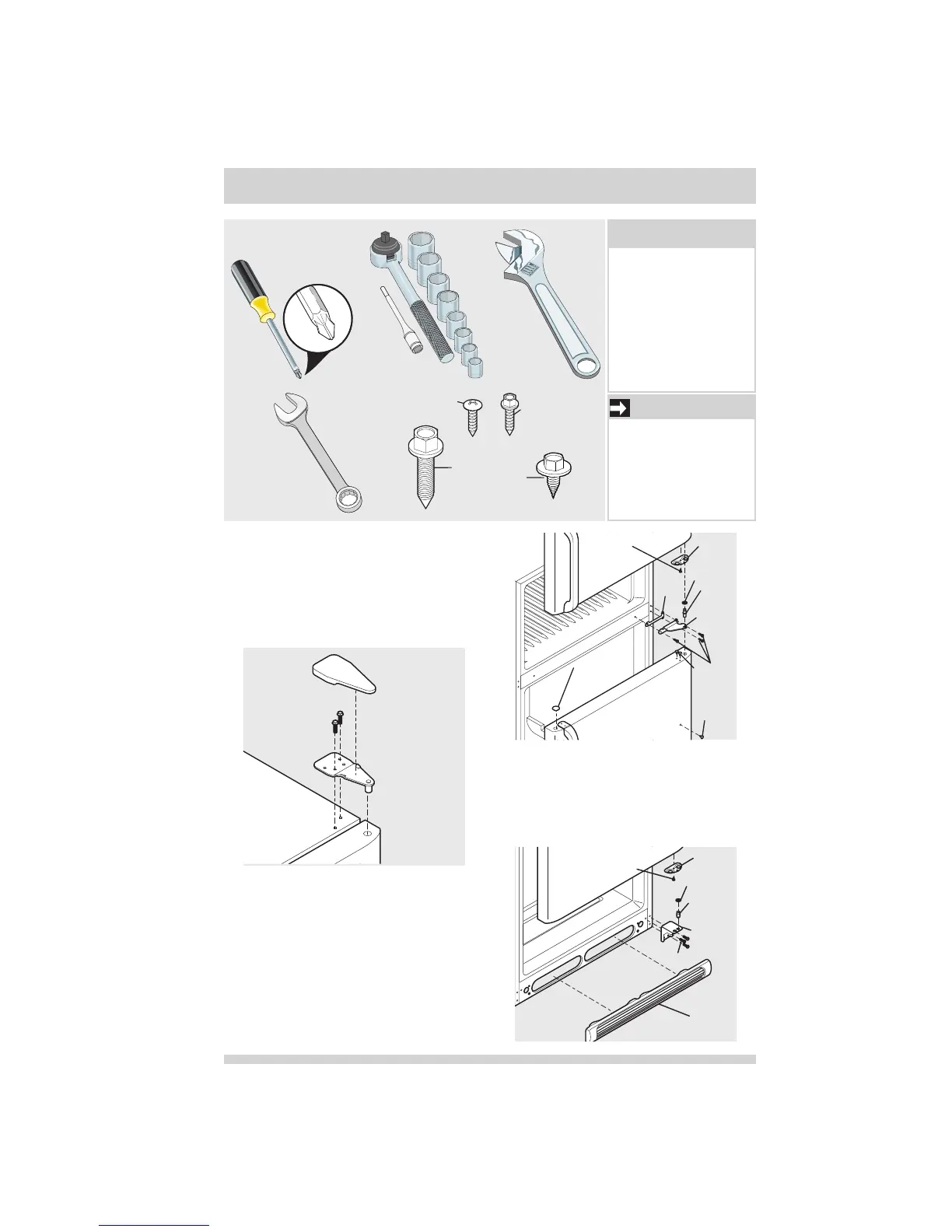

1. Remove toe grille.
2. Remove top hinge cover. Trace around the
hinge with a soft lead pencil. This makes
reinstallation easier. Remove top hinge and
lift door off center hinge pin. Set door aside.
Door
Stop
Shim
Washer
Hinge
Pin
Center
Hinge
Screws
Hinge
Hole
Plug
Handle
Hole
Plug
Door
Stop
Screw
Washer
Hinge
Pin
Bottom
Hinge
Screws
Toe
Grille
Door Stop
Screw
Door
Stop
Top
Hinge
Cover
Top
Hinge
  5HPRYHWZRVFUHZVRQERWWRPKLQJHZLWKƘ´
socket wrench.
8. Install bottom hinge on opposite side with
the two screws removed from step 7.
3. Unscrew center hinge pin using adjustable
wrench and save for reassembly. Ensure
plastic washer stays on hinge pin.
4. Lift refrigerator door off of bottom hinge
and set aside.
5. Remove center hinge and shim by
removing inside screw and loosening two
outside screws enough to allow hinge and
shim to slide out. Tighten screws.
6. Loosen two outside screws on opposite
side of refrigerator, remove inside screw
and install center hinge.
