Ice Maker Installation Instructions (without access cover)

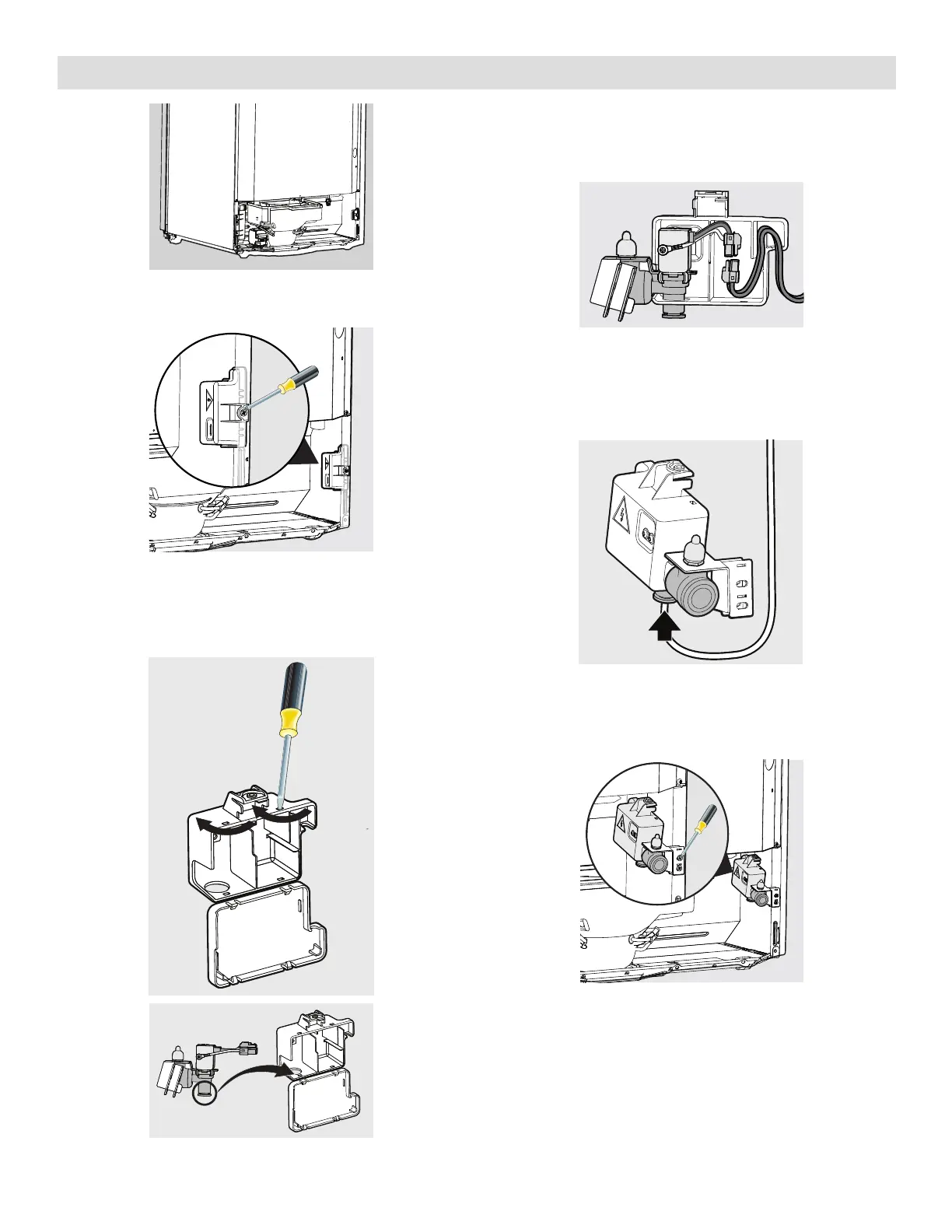

19. Remove the connector box from the unit with a
Philips screwdriver. Discard screw. See Figure 15.
20. Open the connector box using a flat head
screwdriver. Insert at the notched point and turn.
Insert the water valve in the hole in the box.
See Figure 16.
21. Connect the valve wire harness with the white
connector from the unit. Insert the wiring in the
box as shown. Close the box cover completely,
ensuring all wiring is inside. See Figure 17.
22. Plug the green water tube from the icemaker into
the bottom outlet of the water valve. The tube
should be pushed into the valve up to the black
line marked on the tube. See Figure 18.
23. Attach the water valve bracket to the unit at the
2 pre-made holes using the 2 screws included in
the kit. See Figure 19.
24. Connect the household water line to the water
valve fitting (pointed up). Follow instructions in
Connecting Ice Maker to Water Supply.
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19

Frigidaire FFTR1835VW Specifications

General

Type	freestanding
Style	top freezer
Color	white
Number of Doors	2
Total Capacity	18.3 cubic feet
Refrigerator Capacity	13.4 cubic feet
Freezer Capacity	4.9 cubic feet
Humidity Controlled Crispers	yes
Minimum Refrigerator Temperature	45 degrees fahrenheit
Maximum Refrigerator Temperature	110 degrees fahrenheit
Defrost System	automatic
Number of Refrigerator Shelves	3
Temperature Control	electromechanical
Interior Light	led
Dispenser	none
Ice Maker	optional
Water Filter	no
Smart Home	no
Annual Energy Consumption	410 kilowatt hours
Voltage	120 volts
Current	3 amperes

Weight and Dimensions

Depth	30.375 inches
Height	66.375 inches
Width	30 inches
Net Weight	155.8 pounds
