Frigidaire FFTR2045VS User Manual

2

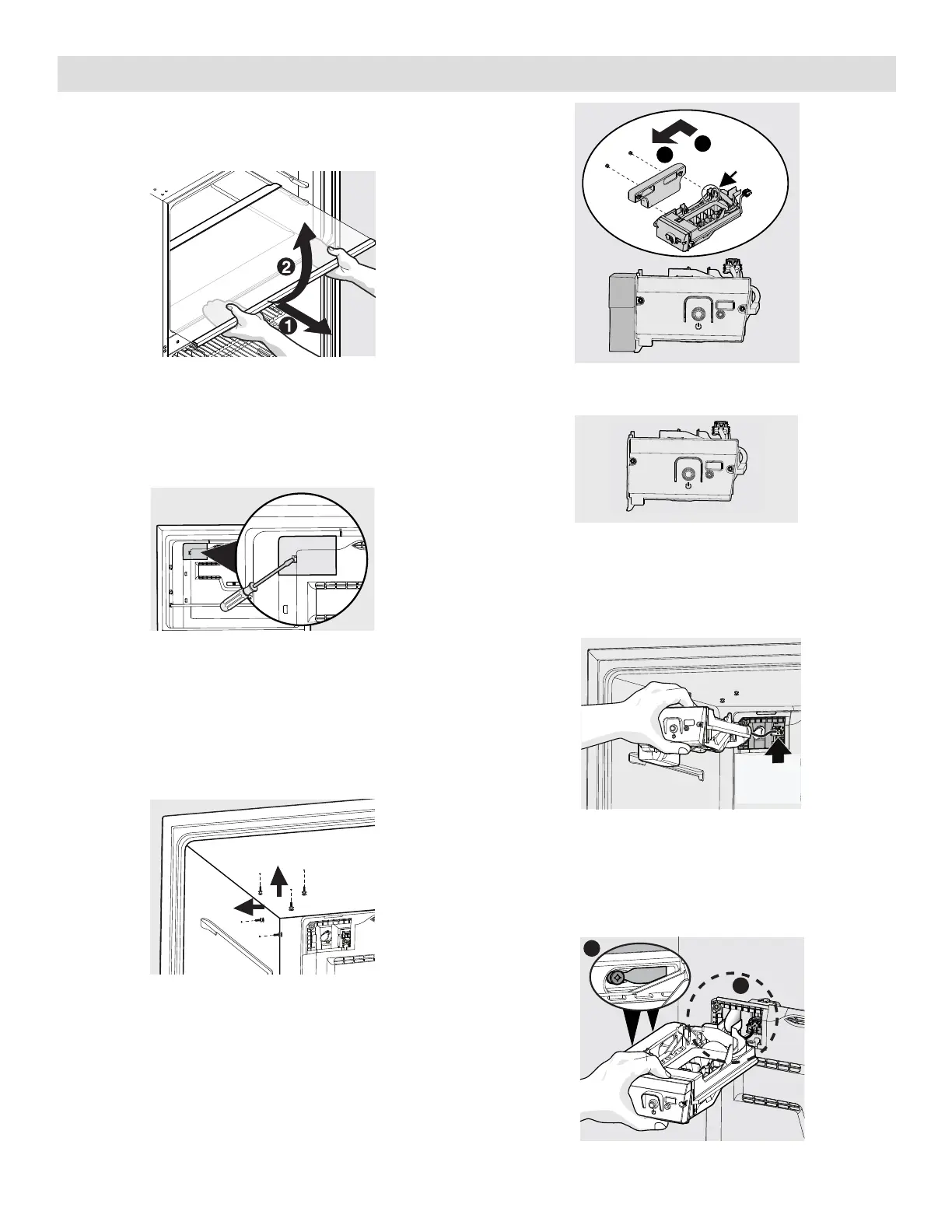

Ice Maker Installation Instructions
1. Unplug refrigerator from electrical outlet.
2. Lift the freezer shelf up and out. Set aside.
See Figure 1.
3. Remove water inlet and electrical cover, located
on the inside of the unit, by inserting a flathead
screwdriver on left side of opening in the small
cover. Push to the right to disengage the snap.
See Figure 2.
4. Locate dimples in the freezer liner for screw
placement (a flashlight may help). Align the
shoulder screws with the dimples. Push the
screws to penetrate the freezer liner and drive the
screws in until they are tight against the liner. Use
2 screws on the left side wall, and 3 on the top of
the liner. See Figure 3.
5. For a 30" wide refrigerator install the bracket
onto the ice maker. The Ice maker will slide onto
the mounting features on the bracket and snap
into place. The locking feature is located on the
rear of the ice maker.
6. Plug the ice maker in the electrical connector on
the back wall. Once connected, do not allow the
ice maker to hang unsupported. See Figure 4.
7. Slide the ice maker onto the 2 side wall shoulder
screws. See Figure 5A.
Make sure the ice maker water channel is under
the water fill tube, continue to slide until the ice
maker snaps into place. See Figure 5B.
28" wide refrigerator
Use the ice maker only
Locking
Feature
1
2
30" wide refrigerator
Use the bracket with the ice maker
Figure 1
Figure 2
To Ceiling
To Wall
Install 5
Shoulder
Screws
Figure 3
Plug
Electrical
Connector
Figure 4
Figure 5
A
B

Frigidaire FFTR2045VS Specifications

General

Type	freestanding
Style	one door; top freezer
Color	stainless steel; black
Total Capacity	20 cu. ft.
Refrigerator Capacity	14.6 cu. ft.
Freezer Capacity	yes; 5.4 cu. ft.
Humidity Controlled Crispers	2
Defrost System	automatic; frost-free
Cooling System	eventemp cooling
Number of Refrigerator Shelves	2
Number of Refrigerator Door Bins	3 fixed full-width
Number of Refrigerator Adjustable Shelves	2
Number of Refrigerator Drawers	2 humidity-controlled crisper, full-width deli drawer
Number of Freezer Shelves	1 adjustable full-width glass shelf
Number of Freezer Door Bins	2 fixed full-width
Temperature Control	no
Wine Rack	no
Interior Light	led
Dispenser	no
Ice Maker	optional
Control Type	electronic touch/rotary knobs
Smart Home	no
Remote Control	no
Wi-Fi	no
Voltage	115 volts
Current	15

Weight and Dimensions

Depth	32 inch
Height	66 3/8 inch
Width	30 inch
Net Weight	220 lbs.
