Ice Maker Installation Instructions (without access cover)

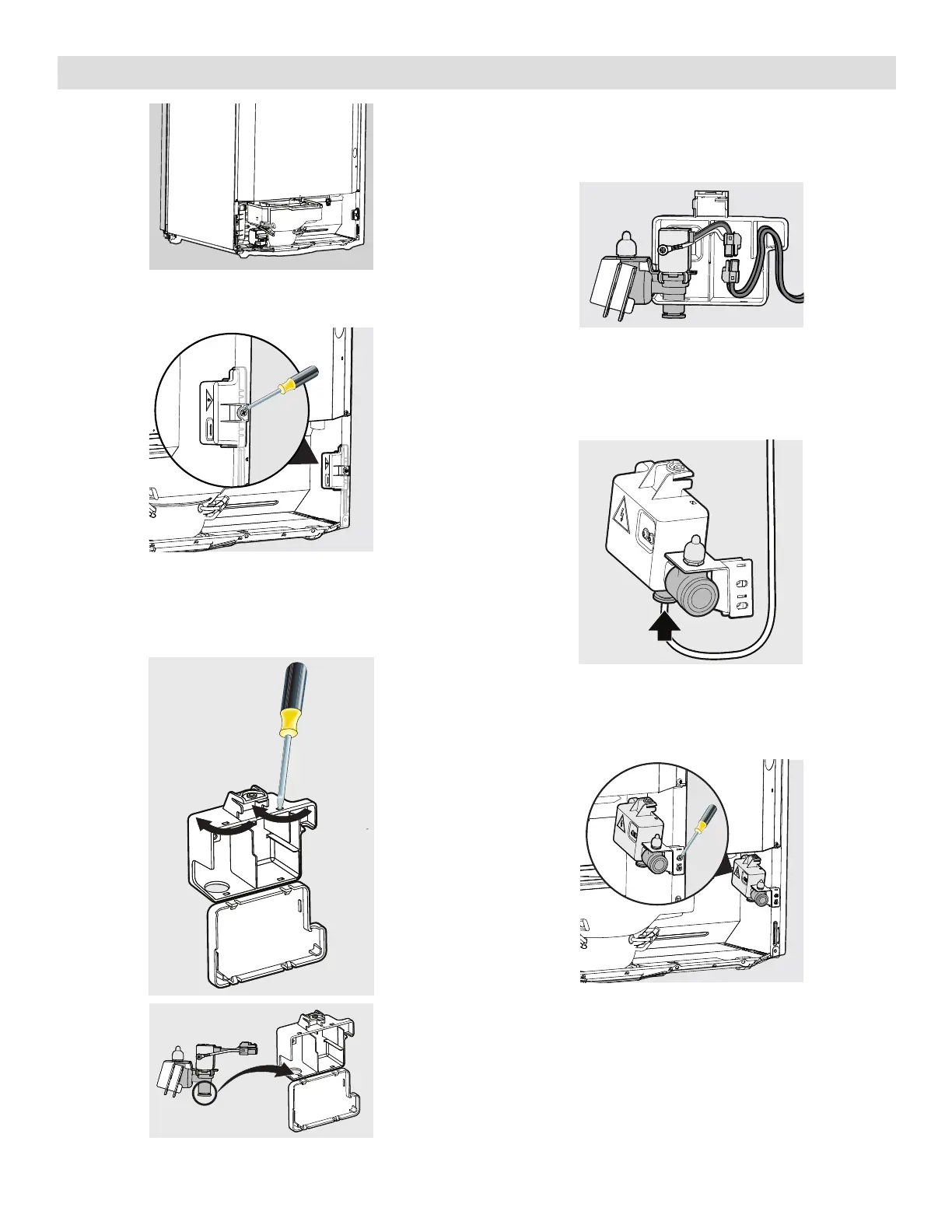

19. Remove the connector box from the unit with a
Philips screwdriver. Discard screw. See Figure 15.
20. Open the connector box using a flat head
screwdriver. Insert at the notched point and turn.
Insert the water valve in the hole in the box.
See Figure 16.
21. Connect the valve wire harness with the white
connector from the unit. Insert the wiring in the
box as shown. Close the box cover completely,
ensuring all wiring is inside. See Figure 17.
22. Plug the green water tube from the icemaker into
the bottom outlet of the water valve. The tube
should be pushed into the valve up to the black
line marked on the tube. See Figure 18.
23. Attach the water valve bracket to the unit at the
2 pre-made holes using the 2 screws included in
the kit. See Figure 19.
24. Connect the household water line to the water
valve fitting (pointed up). Follow instructions in
Connecting Ice Maker to Water Supply.
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19

Frigidaire FFTR2045VS Specifications

General

Type	freestanding
Style	one door; top freezer
Color	stainless steel; black
Total Capacity	20 cu. ft.
Refrigerator Capacity	14.6 cu. ft.
Freezer Capacity	yes; 5.4 cu. ft.
Humidity Controlled Crispers	2
Defrost System	automatic; frost-free
Cooling System	eventemp cooling
Number of Refrigerator Shelves	2
Number of Refrigerator Door Bins	3 fixed full-width
Number of Refrigerator Adjustable Shelves	2
Number of Refrigerator Drawers	2 humidity-controlled crisper, full-width deli drawer
Number of Freezer Shelves	1 adjustable full-width glass shelf
Number of Freezer Door Bins	2 fixed full-width
Temperature Control	no
Wine Rack	no
Interior Light	led
Dispenser	no
Ice Maker	optional
Control Type	electronic touch/rotary knobs
Smart Home	no
Remote Control	no
Wi-Fi	no
Voltage	115 volts
Current	15

Weight and Dimensions

Depth	32 inch
Height	66 3/8 inch
Width	30 inch
Net Weight	220 lbs.
