C,

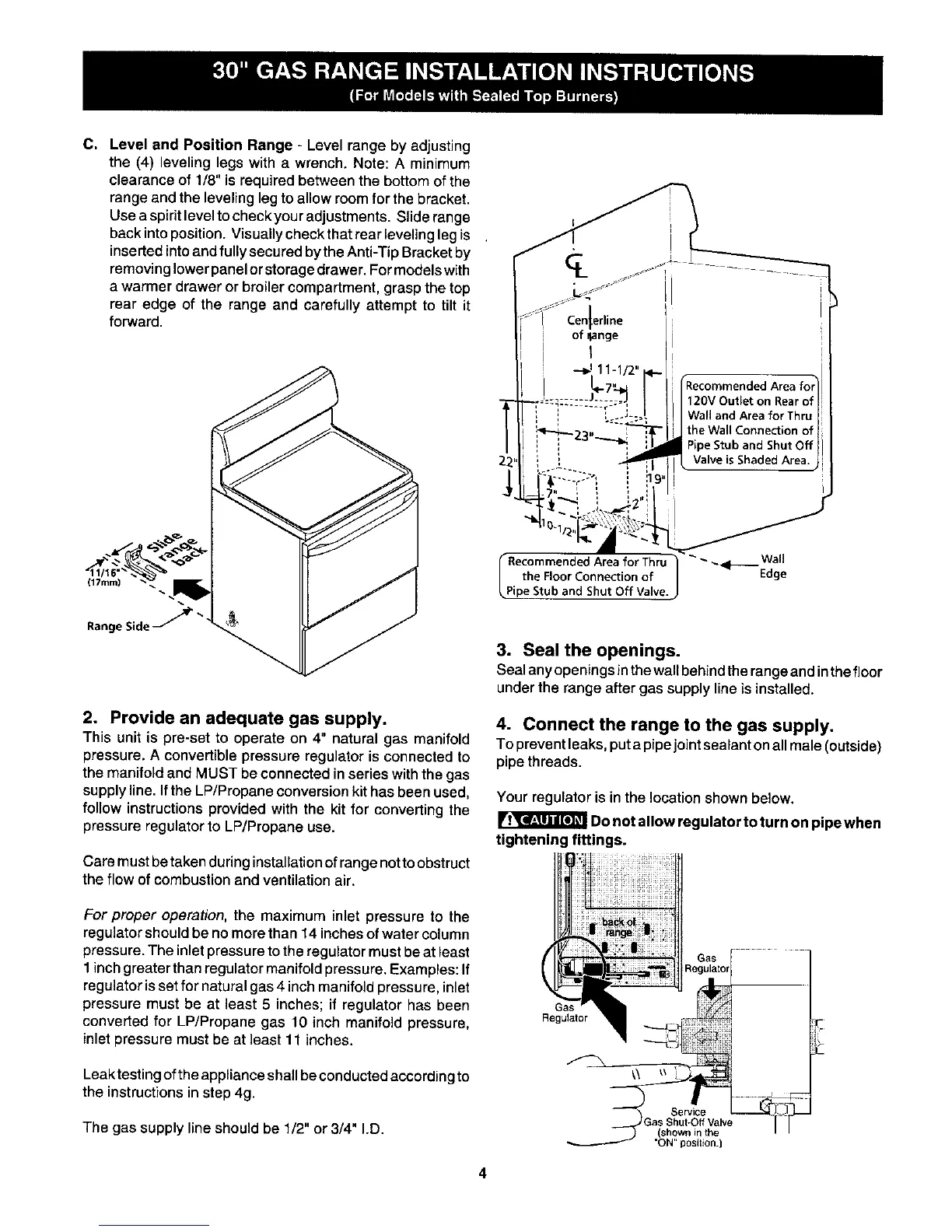

Level and Position Range - Level range by adjusting
the (4) levelinglegs with a wrench. Note: A minimum
clearance of 1/8" isrequired between the bottom of the
rangeand thelevelinglegtoallow roomfor the bracket.
Usea spiritleveltocheck youradjustments. Sliderange
back intoposition.Visuallycheckthat rearleveling legis
insertedintoand fully secured bytheAnti-TipBracketby
removinglowerpanelorstoragedrawer. Formodelswith
a warmer drawer or broilercompartment,graspthe top
rear edge of the range and carefully attempt to tilt it
forward.
(17ram)
Range Side J'_ ""
2. Provide an adequate gas supply.
This unit is pre-set to operate on 4" natural gas manifold
pressure. A convertible pressure regulator is connected to
the manifold and MUST be connected in series with the gas
supply line. Ifthe LP/Propane conversion kit has been used,
follow instructions provided with the kit for converting the
pressure regulator to LP/Propane use.
Care mustbe taken during installationof rangenotto obstruct
the flow of combustion and ventilation air.
For proper operation, the maximum inlet pressure to the
regulator should be no more than 14 inches ofwater column
pressure. The inlet pressure tothe regulator mustbe at least
1inch greater than regulator manifold pressure. Examples: If
regulator isset for natural gas4 inch manifold pressure, inlet
pressure must be at least 5 inches; if regulator has been
converted for LP/Propane gas 10 inch manifold pressure,
inletpressure must be at least 11 inches.
Leaktesting of the appliance shall beconducted according to
the instructions in step 4g.
The gas supply line should be 1/2" or 3/4" I.D,
120V Outlet on Rear of
Wall and Area for Thru
the Wall Connection of
Pipe Stub and Shut Off
Valve is Shaded Area.
"u - _ .__,__ Wall
the Floor Connection of Edge
3. Seal the openings.
Sealanyopeningsin thewallbehindthe rangeand inthefloor
underthe range aftergas supplyline is installed.
4. Connect the range to the gas supply.
To prevent leaks, puta pipejointsealanton allmale (outside)
pipethreads,
Your regulator is in the location shown below.
Donot allow regulator to turn on pipewhen
tightening fittings.
Gas
Regulator
ii
4
