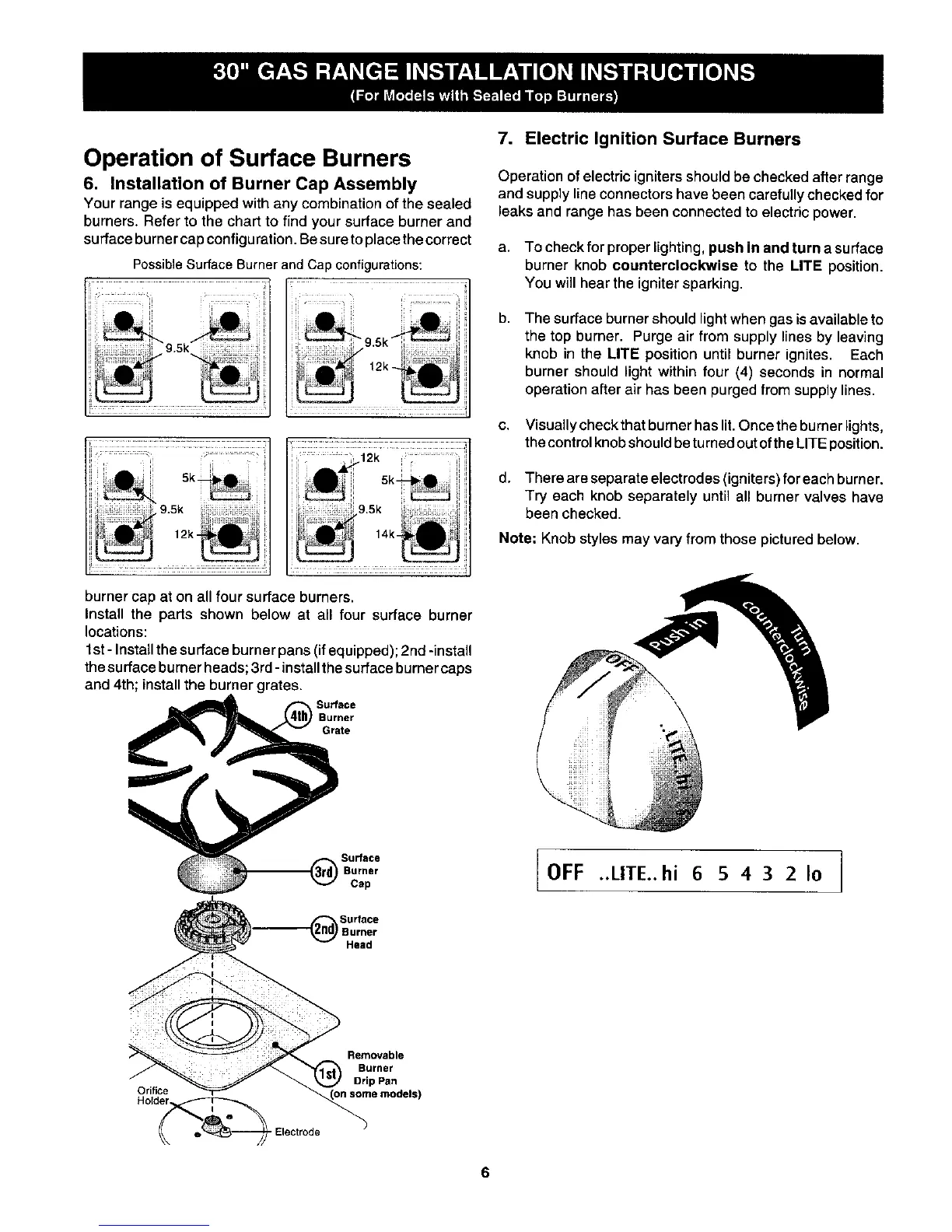

Operation of Surface Burners
6, Installation of Burner Cap Assembly
Your rangeis equipped with any combinationof the sealed
burners. Refer to the chart to find your surface burner and
surface burner cap configu ration. Be sure to place thecorrect
Possible Surface Burner and Cap configurations:
iii_.....................!_ii_........_i i!i_ _ _t2k !_i i¸
Sk_ t
9 5k 9.5k
t2k ii 14k
burner cap at on all four surface burners.
Install the parts shown below at all four surface burner
locations:
1st - Install the surface burner pans (if equipped); 2nd -install
the surface burner heads; 3rd - install the surface burner caps
and 4th; install the burner grates.
Surface
Burner
Grate
7. Electric Ignition Surface Burners
Operation of electric igniters should be checked after range
and supply line connectors have been carefully checked for
leaks and range has been connected to electric power.
a, To check for proper lighting, push in and turn a surface
burner knob counterclockwise to the LITE position.
You will hear the igniter sparking.
b,
The surface burner should light when gas is available to
the top burner. Purge air from supply lines by leaving
knob in the LITE position until burner ignites. Each
burner should light within four (4) seconds in normal
operation after air has been purged from supply lines.
c. Visually check that burner has lit. Once the burner lights,
thecontrol knobshould beturned out ofthe LITE position.
d. There are separate electrodes (igniters) foreach burner.
Try each knob separately until all burner valves have
been checked.
Note: Knob styles may vary from those pictured below.
Sudace
Burner
Cap
Su_ace
)Burner
Head
OFF ..LITE..hi 6 5 4 3 2 Io ]
Orifice
Holde_ Electrode
Removable
Burner
Drip Pan
(_n some models)
