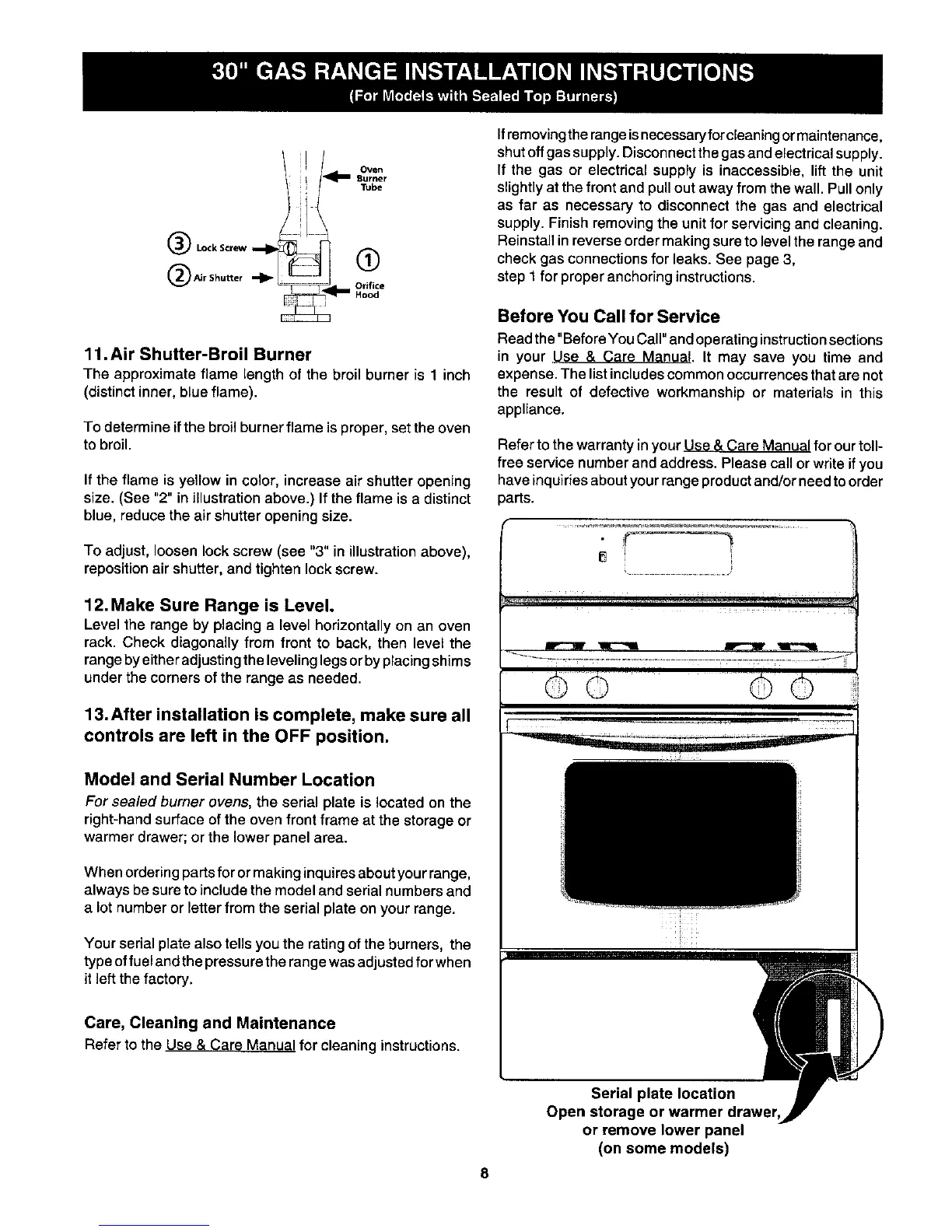

Oven
Bumer
Tube
11. Air Shutter-Broil Burner
The approximate flame lengthof the broilburner is 1 inch
(distinctinner,blue flame).
To determine if the broil burner flame is proper, set the oven
to broil.
If the flame is yellow in color, increase air shutter opening
size. (See "2" in illustration above.) If the flame is a distinct
blue, reduce the air shutter opening size.
To adjust, loosen lock screw (see "3" in illustration above),
reposition air shutter, and tighten lock screw.
12.Make Sure Range is Level.
Level the range by placinga level horizontallyon an oven
rack. Check diagonally from front to back, then level the
rangebyeitheradjustingthe levelinglegsorbyplacingshims
under the corners of the range as needed.
13.After installation is complete, make sure all
controls are left in the OFF position.
Model and Serial Number Location
For sealed burner ovens, the serial plate is located on the
right-hand surface of the oven front frame at the storage or
warmer drawer; or the lower panel area.
When ordering parts for or making inquires about your range,
always be sureto include the model and serial numbers and
a lot number or letter from the serial plate on your range.
Your serial plate also tells you the rating of the burners, the
type offueland the pressure the range was adjusted forwhen
it left the factory.
Care, Cleaning and Maintenance
Refer to the Use & Care Manual for cleaning instructions.
Ifremoving the range isnecessaryforcleaningor maintenance,
shut off gas supply. Disconnect thegas and electrical supply.
If the gas or electrical supply is inaccessible, lift the unit
slightly at the front and pull out away from the wall. Pull only
as far as necessary to disconnect the gas and electrical
supply. Finish removing the unit for servicing and cleaning.
Reinstall in reverse order making sure to level the range and
check gas connections for leaks. See page 3,
step I for proper anchoring instructions.
Before You Call for Service
Read the "Before You Call"and operating instruction sections
in your Use & Care Manual. It may save you time and
expense. The list includes common occurrencesthat are not
the result of defective workmanship or materials in this
appliance.
Refer to the warrantyin your Use & Care Manual for our toll-
free service number and address. Please call or write if you
have inquiries about your range product and/or need toorder
parts.
,. ..........................,)
n n,,rr _
©© ,
8
Serial plate location
Open storage or warmer drawer,
or remove lower panel
(on some models)
