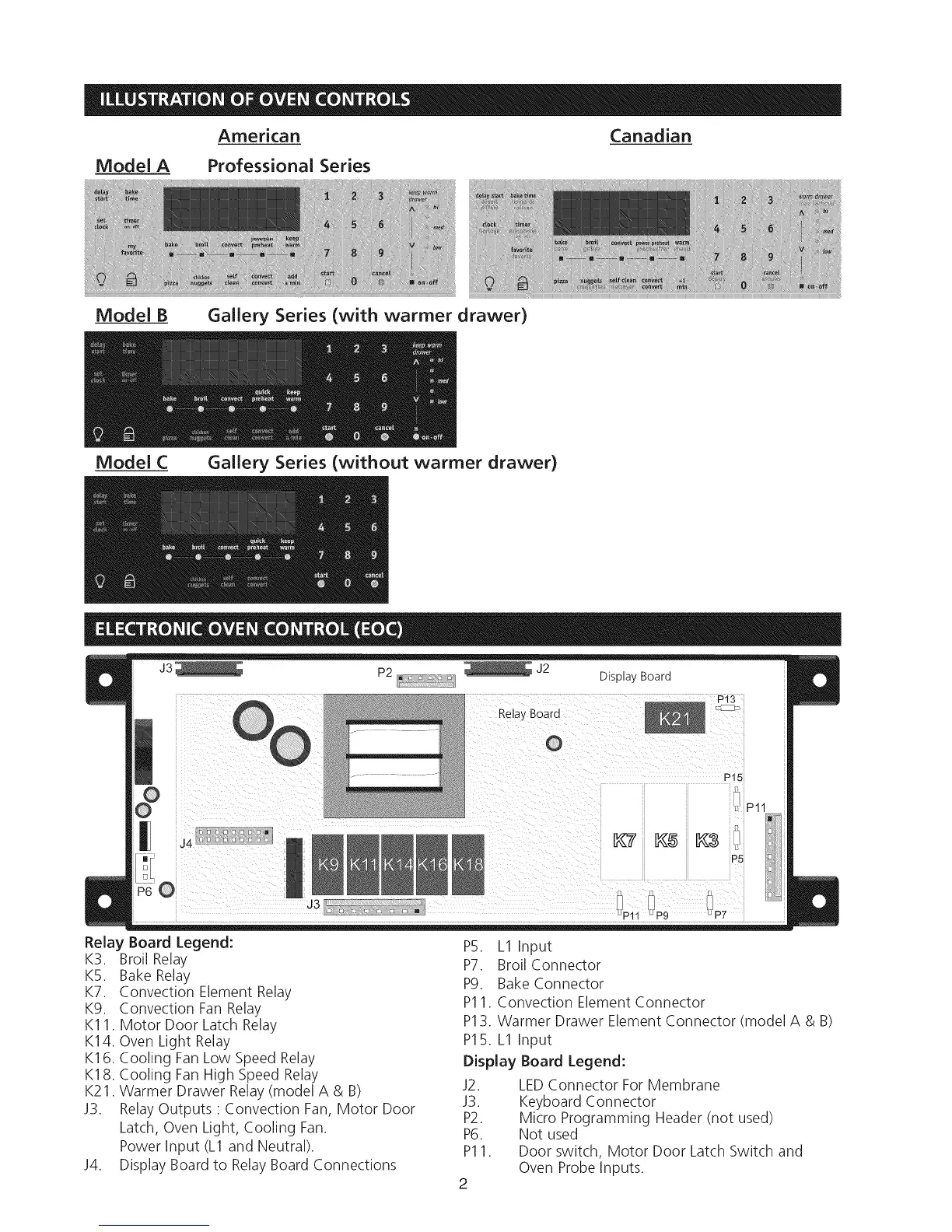

American Canadian
Model A Professional Series
Model B
Model C
Gallery Series (with warmer drawer)
Gallery Series (without warmer drawer)
J3_ _ J2
Display Board
J4 :/
Relay Board
P13
P15
Relay Board Legend:
K3. Broil Relay
K5. Bake Relay
K7. Convection Element Relay
Kg. Convection Fan Relay
K11. Motor Door Latch Relay
K14. Oven Light Relay
K16. Cooling Fan Low Speed Relay
K18. Cooling Fan High Speed Relay
K21. Warmer Drawer Relay(model A & B)
J3. Relay Outputs : Convection Fan, Motor Door
Latch, Oven Light, Cooling Fan.
Power Input (L1 and Neutral).
J4. Display Board to Relay Board Connections
P5. L1 Input
P7. Broil Connector
P9. Bake Connector
P11. Convection Element Connector
P13. Warmer Drawer Element Connector (model A & B)
P15. L1 Input
Display Board Legend:
J2.
J3.
P2.
P6.
Pll.
2
LEDConnector For Membrane
Keyboard Connector
Micro Programming Header (not used)
Not used
Door switch, Motor Door Latch Switch and
Oven Probe Inputs.
