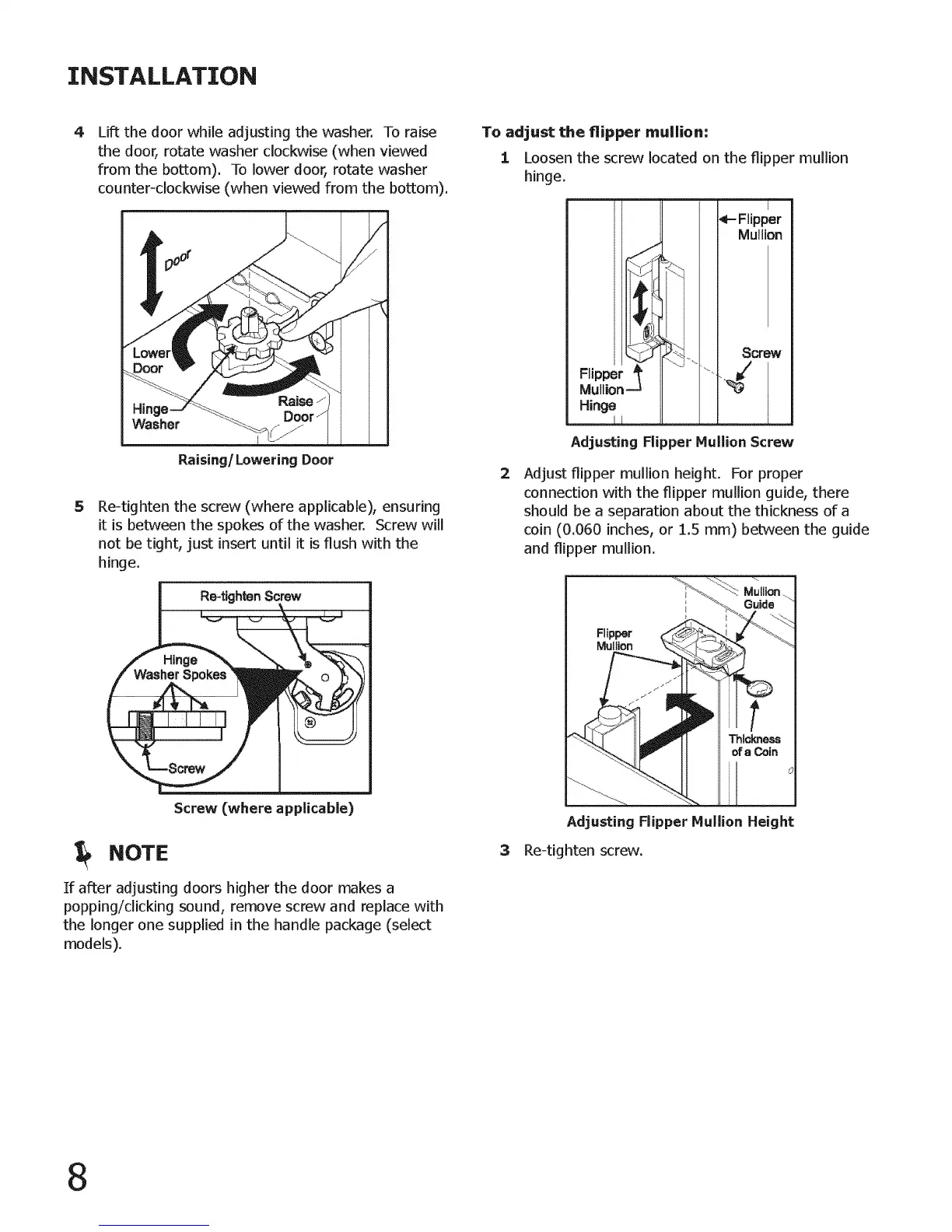

INSTALLATION
4
Lift the door while adjusting the washer. To raise
the door, rotate washer clockwise (when viewed
from the bottom). To lower door, rotate washer
counter-clockwise (when viewed from the bottom).
Raising/Lowering Door
5
Re-tighten the screw (where applicable), ensuring
it is between the spokes of the washer. Screw will
not be tight, just insert until it is flush with the
hinge.
Re-tighten Screw
Screw (where applicable)
NOTE
If after adjusting doors higher the door makes a
popping/clicking sound, remove screw and replace with
the longer one supplied in the handle package (select
models).
To adjust the flipper mullion:
:L Loosen the screw located on the flipper mullion
hinge.
I
Flipper
Mullion-
Hinge
-- i
_- Flipper
Mullion
Screw
_ m
Adjusting Flipper Mullion Screw
2
Adjust flipper mullion height. For proper
connection with the flipper mullion guide, there
should be a separation about the thickness of a
coin (0.060 inches, or 1.5 ram) between the guide
and flipper mullion.
Flipper
Mullion
3
Thickness
of a Coin
!
Adjusting Flipper Mullion Height
Re-tighten screw.
8
