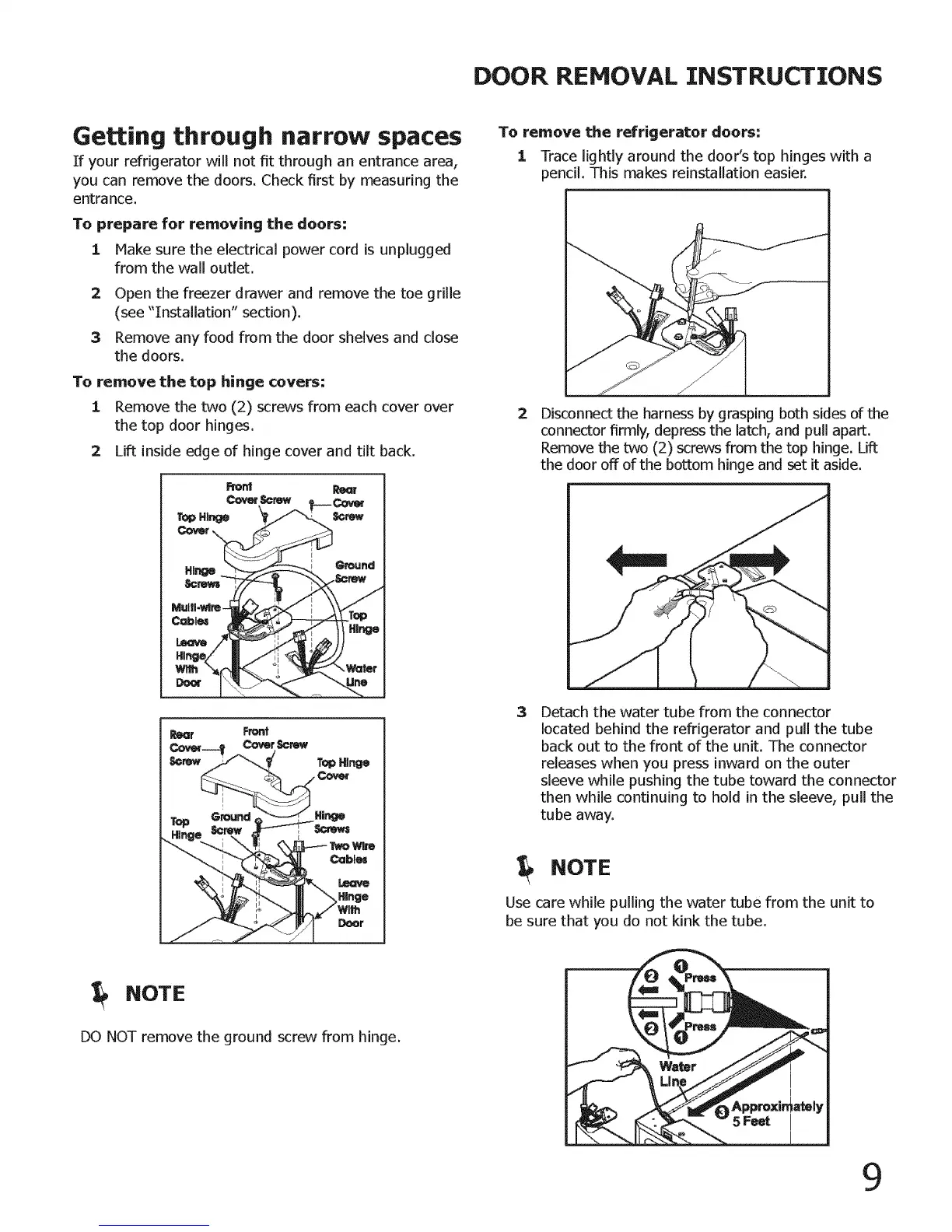

DOOR REMOVAL INSTRUCTIONS
Getting through narrow spaces
If your refrigerator will not fit through an entrance area,
you can remove the doors. Check first by measuring the
entrance,
To prepare for removing the doors:
1 lake sure the electrical power cord is unplugged
from the wall outlet.
2 Open the freezer drawer and remove the toe grille
(see "Installation" section).
3 Remove any food from the door shelves and close
the doors.
To remove the top hinge covers:
I Remove thetwo (2)screwsfrom each coverover
thetop door hinges.
2 Liftinsideedge ofhingecoverand tiltback.
Fiord _r
TopHim _/J"-.i_..._Sc_
-_ . "-.. _-_---_.. i Ground
Cover o Cover Screw
Scmw_//_-----._ TopHp_lng.
W _ _----_Ill "->Hln_e
To remove the refrigerator doors:
1 Trace lightly around the door's top hinges with a
pencil. This makes reinstallation easier.
2
Disconnect the harness by grasping both sides of the
connector firmly, depress the latch, and pull apart.
Remove the two (2) screws from the top hinge. Lift
the door off of the bottom hinge and set it aside.
3
Detach the water tube from the connector
located behind the refrigerator and pull the tube
back out to the front of the unit. The connector
releases when you press inward on the outer
sleeve while pushing the tube toward the connector
then while continuing to hold in the sleeve, pull the
tube away.
NOTE
Use care while pulling the water tube from the unit to
be sure that you do not kink the tube.
NOTE
DO NOT remove the ground screw from hinge.
Approxir_ately
5 Feet ]
9
