4

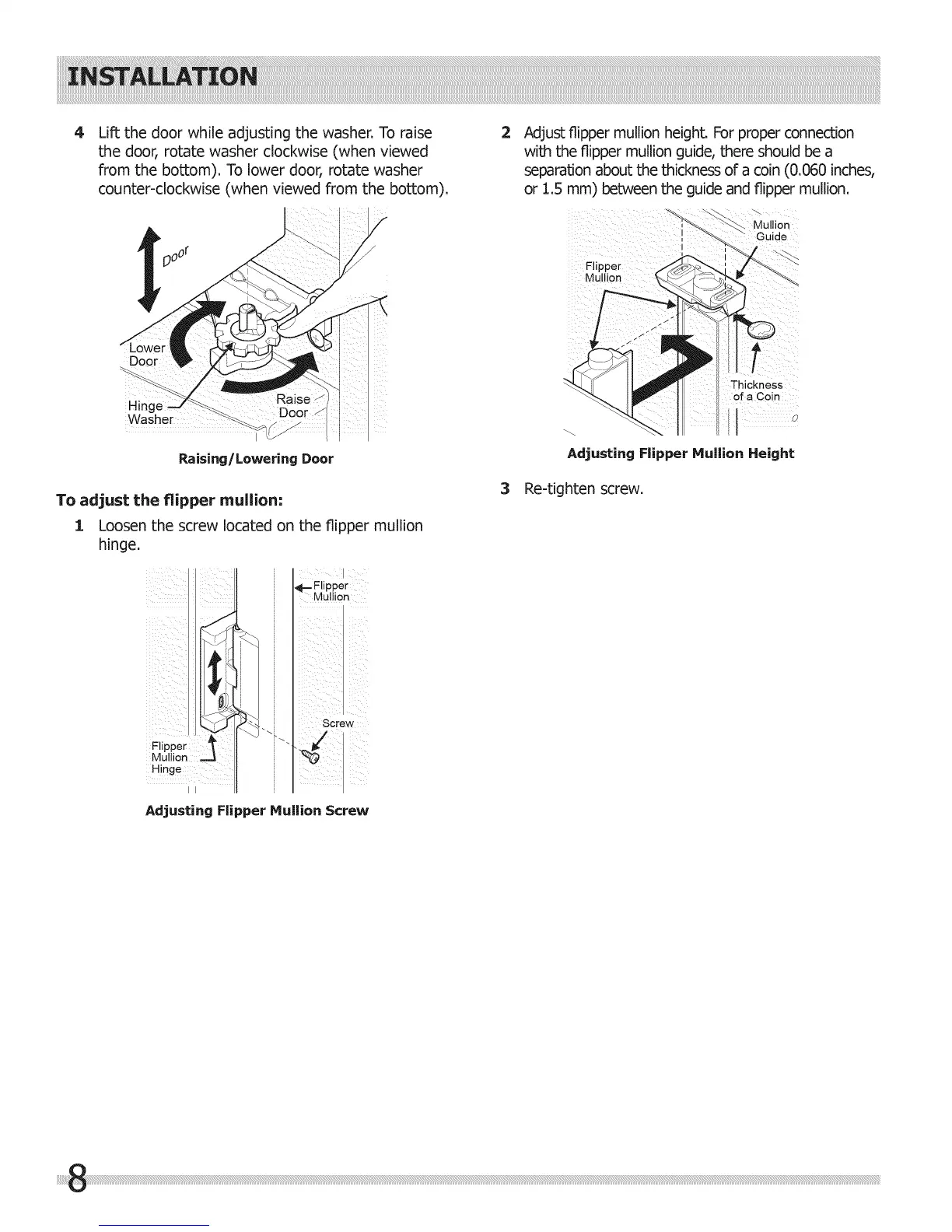

Lift the door while adjusting the washer. To raise
the door, rotate washer clockwise (when viewed
from the bottom). To lower door, rotate washer
counter-clockwise (when viewed from the bottom).
Door
Hin
Washer
I
RaisinglLowering Door
To adjust the flipper mullion:
1 Loosen the screw located on the flipper
hinge.
Mullion ,
Hinge
_1==Flipper
Mullion
Screw
Adjusting Flipper Hullion Screw
mullion
2
Adjust flipper mullion height. For proper connection
with the flipper mullion guide, there should be a
separation about the thickness of a coin (0.060 inches,
or 1.5 mm) between the guide and flipper mullion.
Flipper
Mulli,
I
ofa Coin
0
Adjusting Flipper Hullion Height
3 Re-tighten screw.
