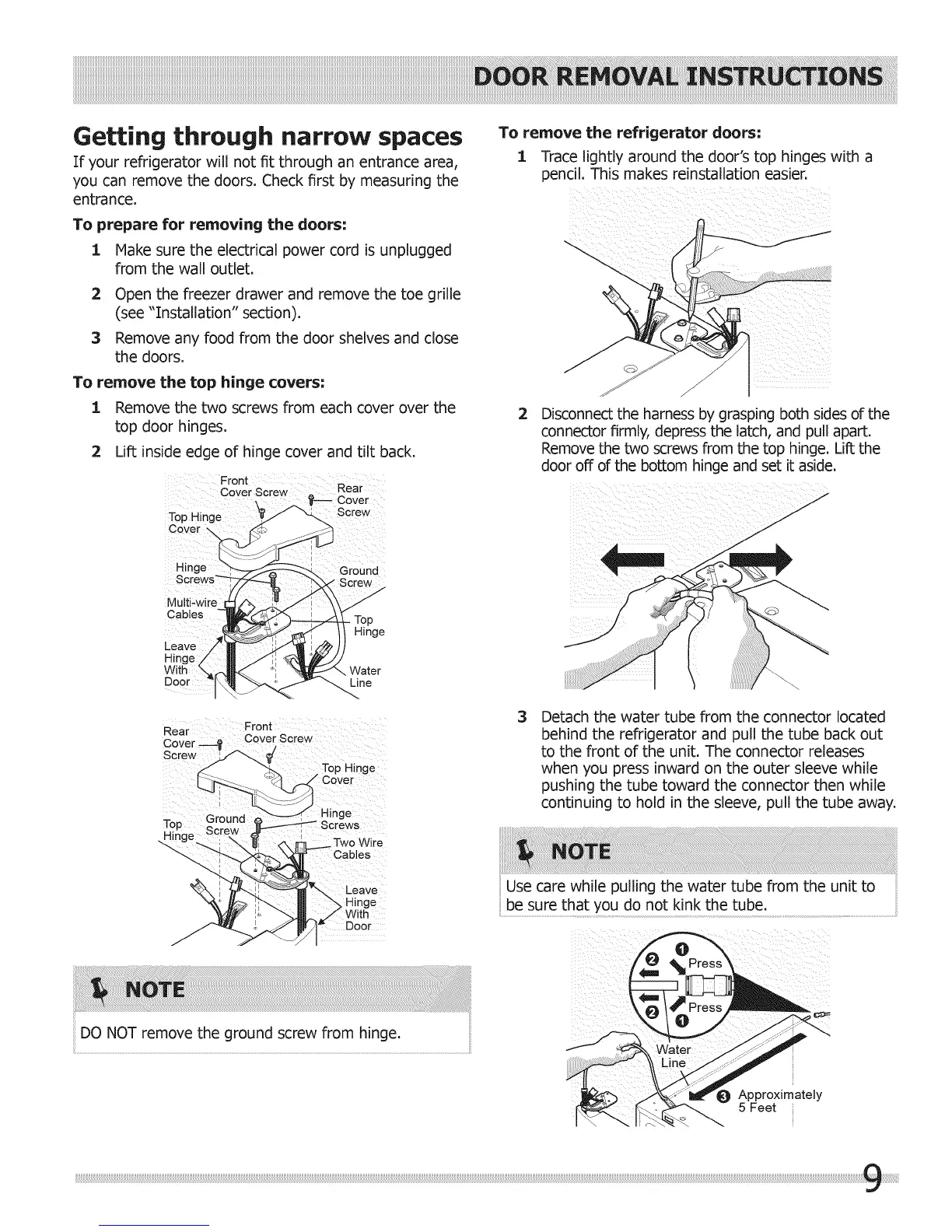

Getting through narrow spaces
If your refrigerator will not fit through an entrance area,
you can remove the doors. Check first by measuring the
entrance.
To prepare for removing the doors:
Make sure the electrica! power cord is unplugged
from the wall outlet.
1
2 Open the freezer drawer and remove the toe grille
(see "Installation" section).
3 Remove any food from the door shelves and close
the doors.
To remove the top hinge covers:
1 Remove the two screws from each cover over the
top door hinges.
2 Lift inside edge of hinge cover and tilt back.
Front
Cover Screw : Rear
\ _ Cover
Top Hinge P/-_-_:--._ screw
Cover -\ _ _ ........
_,_ .........
Hinge_ Ground
Screwo 7 So,ew
Mu,ti:wire _'_/_;.._ _ _"
cab!as Top
_S- J_ _ .r_d" // Hinge
Leave //_" _,'_ ,_ )]
Hinge/ |11 J/ _// ..
With "-,4¢41K _ _r-_Water
Rear Front
Cover -e__ _CoverScrew
Screw--_-_._ _/
,_ __ Top Hinge
C°yer
Hinge
Top U _Sc ew
Hint i
Two Wire
Leave :
Hinge
With
Door
DO NOT remove the ground screw from hinge.
To remove the refrigerator doors:
Trace lightly around the door's top hinges with a
pencil. This makes reinstallation easier.
2
Disconnect the harness by grasping both sides of the
connector firmly, depress the latch, and pull apart.
Remove the two screws from the top hinge. Lift the
door off of the bottom hinge and set it aside.
3 Detach the water tube from the connector located
behind the refrigerator and pull the tube back out
to the front of the unit. The connector releases
when you press inward on the outer sleeve while
pushing the tube toward the connector then while
continuing to hold in the sleeve, pull the tube away.
Use care while pulling the water tube from the unit to
be sure that you do not kink the tube.
i
i
Approximately
5 Feet
