HANDLE INSTALLATION
IMPORTANT
To ensure proper installation of
handles, please review these
instructions and illustrations thoroughly
prior to installing the handles.
CAUTION
Wear gloves and safety goggles and
use extreme CAUTION when installing
these handles. The rounded end of the
handles may be sharp (some models).
Ensure Handle Set Screws
are Facing Each Other
with Doors Closed
Freezer Upper
End Cap
Refrigerator Lower
End Cap
Refrigerator Upper
End Cap
Freezer Lower
End Cap

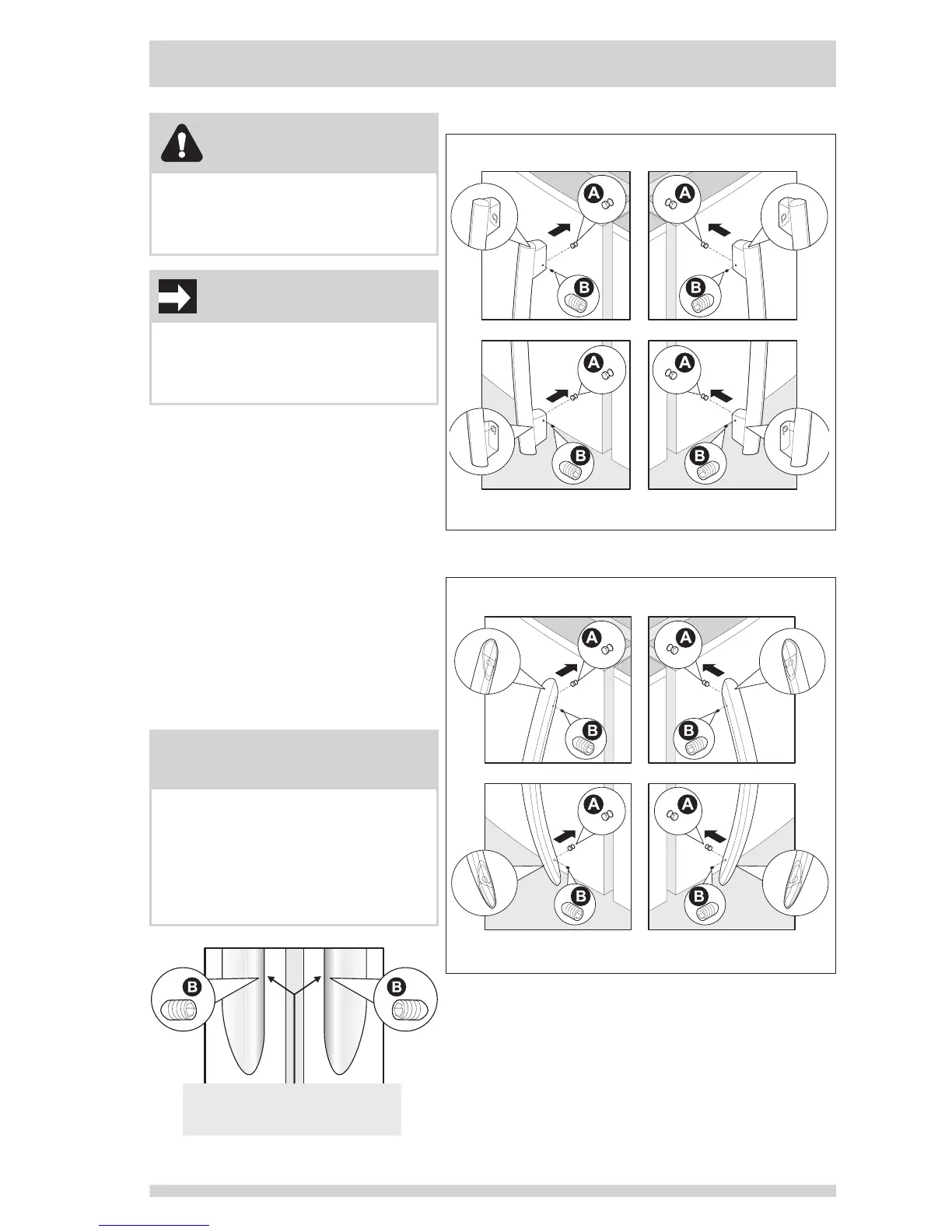

Frigidaire Professional
®
1 Remove handles from carton and
any other protective packaging.
2 Position freezer handle end caps
over upper and lower pre-installed
shoulder bolts (A) that are fastened
into door, ensuring the holes for the
set screws are facing towards the
refrigerator door.
3 Whileholdinghandlermlyagainst
door, fasten upper and lower Allen set
screws (B) with supplied Allen wrench.
4 Repeat steps 2 and 3 to install
refrigerator handle. Ensure the
holes for the set screws are facing
towards the freezer door.

NOTE
All set screws should be tightened
andsub-ush(Allensetscrewshould
be seated just below the surface of
the end cap) of handle end cap. The
end caps should be drawn tight to
freezer and refrigerator doors with
no gaps.
Freezer Upper
End Cap
Refrigerator Upper
End Cap
Frigidaire Gallery
®
Refrigerator Lower
End Cap
Freezer Lower
End Cap
