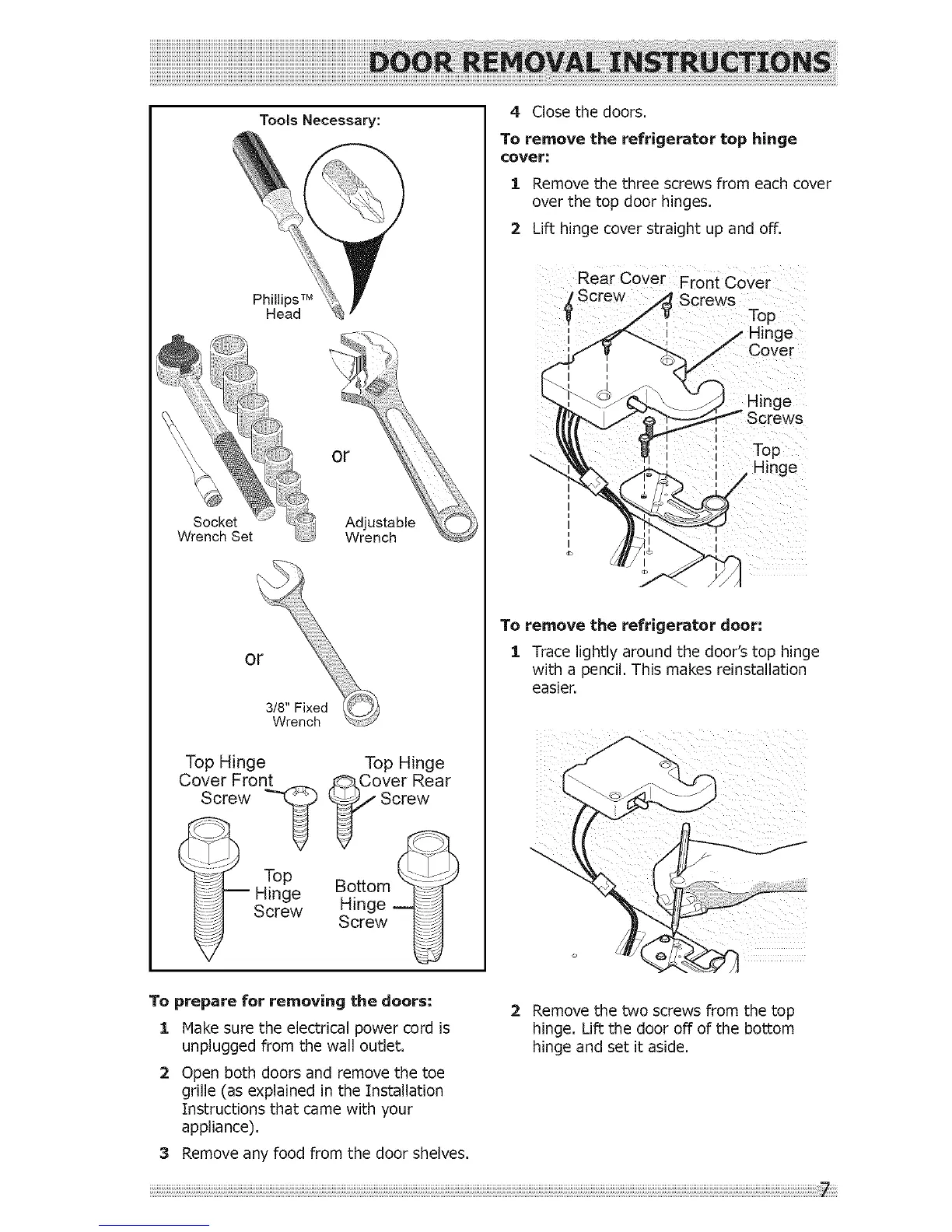

Tools Necessary:
Phillips TM
Head
Socket
Wrench Set
Top Hinge Top Hinge
COVs_rrFrwOn_ ,_-d_Cover Rear
_ _ Screw
Top
_ Hinge Bottom
_ Screw Hinge
4 Close the doors.
To remove the refrigerator top hinge
cover:
1 Remove the three screws from each cover
over the top door hinges.
2 Lift hinge cover straight up and off.
Rear Cover Float cover
Screw Screws
Top
I
i
Cover
i
I
I
I
Hinge
Screws
Top
,Hinge
To remove the refrigerator doer:
1 Trace lightly around the door's top hinge
with a pencil. This makes reinstallation
easier.
To prepare for removing the doors:
1 Make sure the electrical power cord is
unplugged from the wall outlet.
Open both doors and remove the toe
grille (as explained in the Installation
Instructions that came with your
appliance).
3 Remove any food from the door shelves.
Remove the two screws from the top
hinge. Lift the door off of the bottom
hinge and set it aside.
