Glass Canopy Island Hood
FHPC4260L S 42" Stainless Steel
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FHPC4260L 02/12 © 2012 Electrolux Home Products, Inc.
Specifications
subject to change.
Glass Canopy Island Hood Specifications
•
Product Shipping Weight (approx.) – 92 Lbs.
•
Island / Peninsula Ceiling-Mount Installation
•
Ventilation system is preset to exhaust air outside. If outside
ducting is not possible, optional Duct-Free Recirculation Kit
(PN # FHPRKT60LS) is available to convert ventilation to allow air
to recirculate inside. (Refer to Ducted Option Specifications for
outside ventilation.)
•
Sones Rating – 6.5
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = 0.52 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120 Volts = 4 Amps
•
Always consult local and national electric codes. Check local building
codes for installation requirements, as they may vary per locale.
•
Minimum installation height allowed from bottom of hood to standard
36"-high electric or gas cooking surface is 24" - 36". (NOT more than
32" recommended.) For detailed instructions regarding install heights
in 8', 9' and 10' ceiling applications, refer to installation guide on web.
•
To prepare mounting surface, adequate structure and support must
be provided, capable of supporting 150 lbs.
Ducted Option Specifications
•
For outside ventilation.
•
Exhaust Duct Required – 6" round
•
For most efficient airflow exhaust, use a straight run or as few
elbows as possible.
•
Use metallic flex ducting only to connect rigid duct directly to
transitions (if allowed by code).
•
Thermal breaks such as short section of nonmetallic duct, should
be used in areas of extreme cold.
•
Cold weather installations should have additional backdraft damper
installed.
•
Refer to installation instructions on web for detailed exhaust duct
preparation and converting vent blower system for recirculating inside.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.

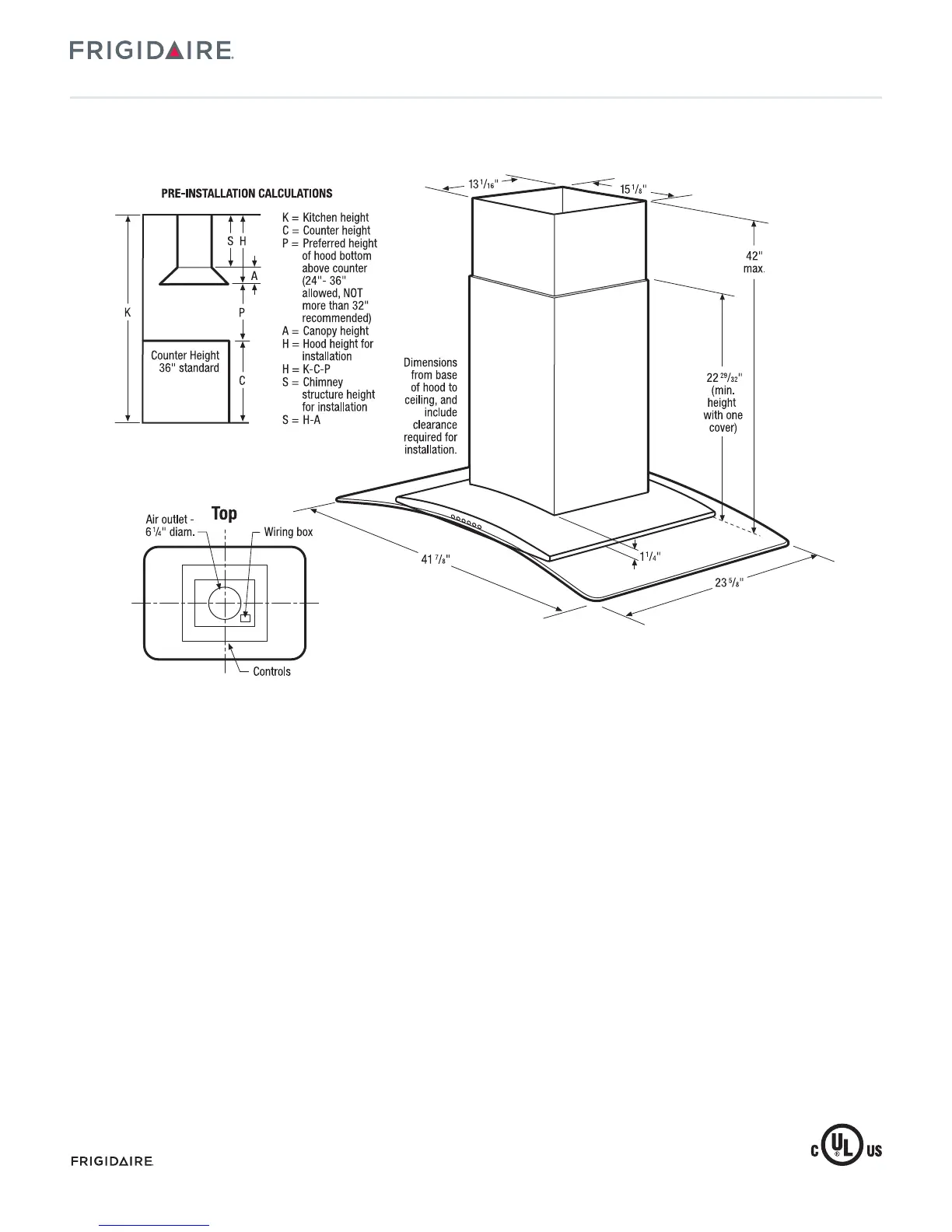

Pre-Installation Calculations
•
Select hood preference height (P) that is comfortable for user
(24" - 36" minimum allowed, NOT more than 32" recommended).
•
Calculate hood height (H) for installation (H = K-C-P).
•
Confirm that (H) is within minimum to maximum range for hood. If
not, adjust installation.
•
Calculate chimney structure height (S). Use formulas, check
dimensions of hood. Save calculation for use later in installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Duct-Free Recirculation Kit – (PN # FHPRKT60LS).
•
10' Flue Extension Kit – (PN # FHP10X60LS).
