Frigidaire FPEC3685KS User Manual

Electric Cooktop Installation
Over 30"/27" Electric Single Wall Oven
Combination Frigidaire Electric Cooktop/
27" & 30" Electric Wall Oven Under-Counter Installation
FRIGIDAIRE
USA
•
Electrolux Major Appliances, North America
•
250 Bobby Jones Expressway
•
Martinez, GA 30907
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
Electrolux Canada Corporation
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
EC_EW INST FR 04/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.
30"/ 27" Electric Single Wall Oven
Under-Counter Installation Specifications
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
For detailed electrical requirements, refer to model-specific product
page and installation guide on web.
•
Always consult local and national electric codes.
•
Minimum 21" clearance for oven door depth when open.
•
Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•
Full oven base of solid plywood or similar material required,
capable of supporting 200 Lbs. Install over two runners and flush
with toe plate.
•
Base must be level and cabinet front must be square.
•
Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.

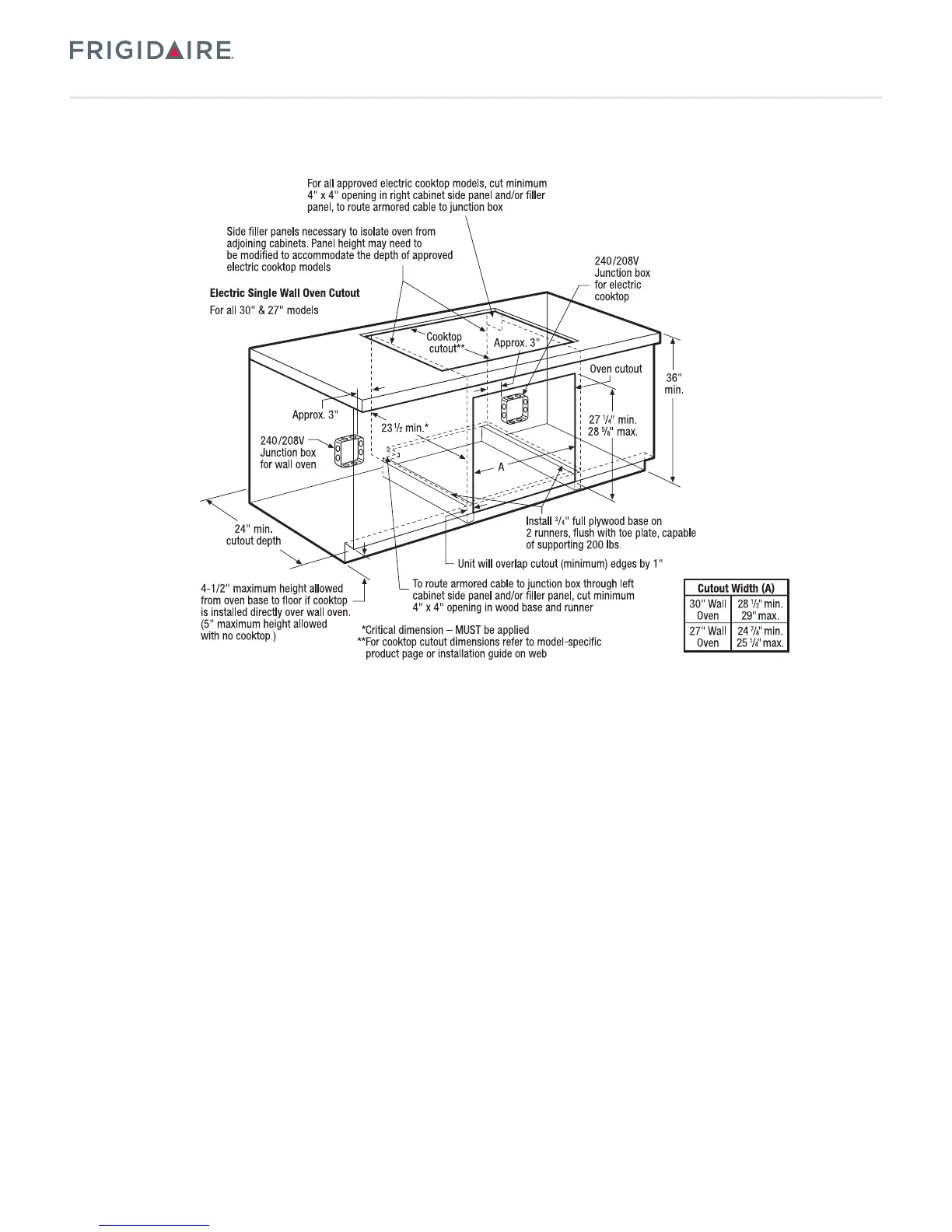

Electric Cooktop Installation Over
30"/ 27" Electric Single Wall Oven Specifications
All Frigidaire® Electric Single Wall Ovens are approved to be used
beneath any approved Frigidaire® Electric Cooktop.
For detailed Electric Cooktop installation, refer to model-specific
product page and installation guide on web.
•
Side filler panels necessary to isolate oven from adjoining cabinets.
Panel height may need to be modified to accommodate the depth
of approved electric cooktop models.
•
To route armored cable to junction box, cut minimum 4" x 4" opening
in right cabinet side panel.
•
Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
