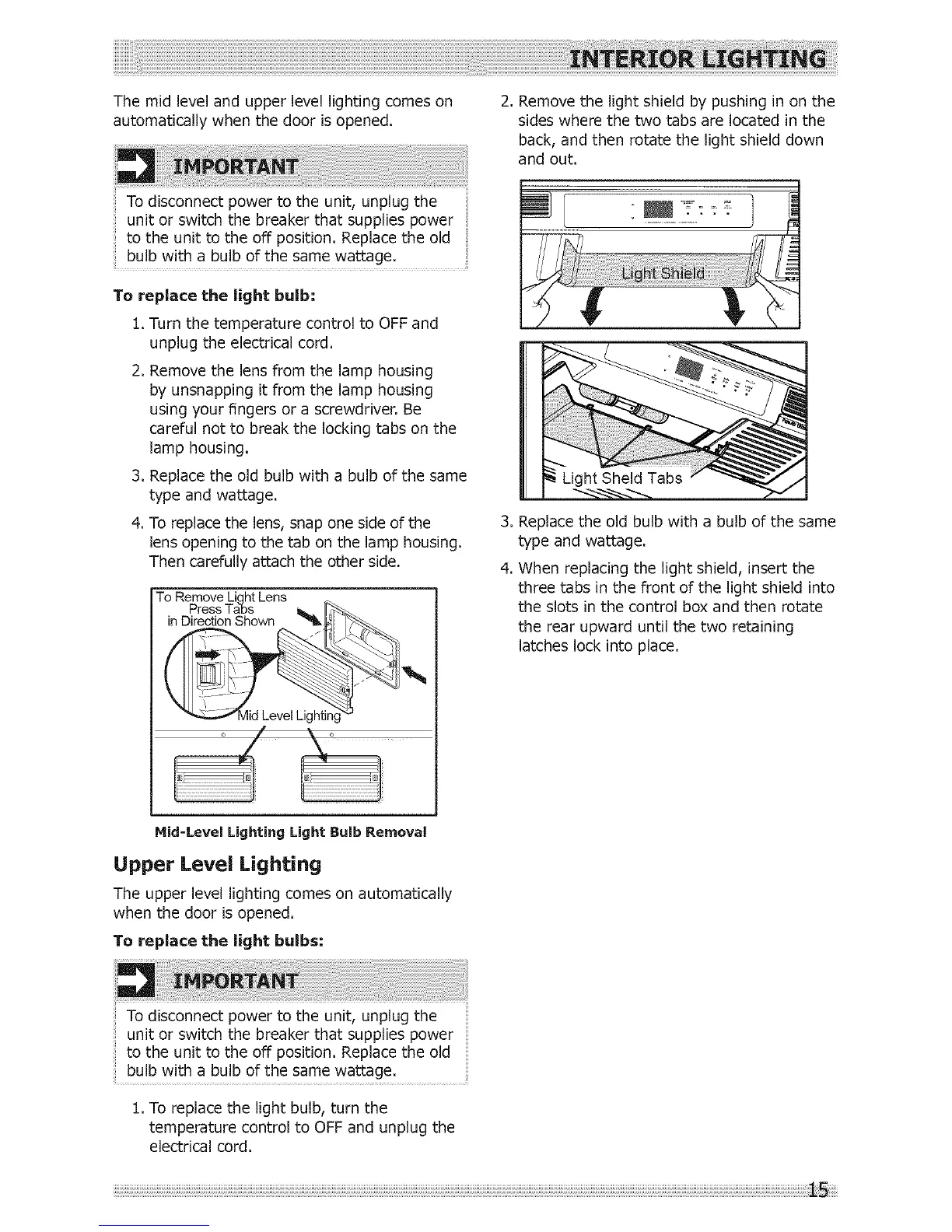

Themidlevelandupperlevellightingcomeson
automaticallywhenthedoorisopened.
Todisconnectpowertotheunit,unplugthe
unitorswitchthebreakerthatsuppliespower
totheunittotheoffposition.Replacetheold
bulbwithabulbofthesamewattage.
To replace the light bulb:
1. Turn the temperature control to OFF and
unplug the electrical cord.
2. Remove the lens from the lamp housing
by unsnapping it from the lamp housing
using your fingers or a screwdriver. Be
careful not to break the locking tabs on the
lamp housing.
3. Replace the old bulb with a bulb of the same
type and wattage.
4. To replace the lens, snap one side of the
lens opening to the tab on the lamp housing.
Then carefully attach the other side.
2. Remove the light shield by pushing in on the
sides where the two tabs are located in the
back, and then rotate the light shield down
and out.
3. Replace the old bulb with a bulb of the same
type and wattage.
4. When replacing the light shield, insert the
three tabs in the front of the light shield into
the slots in the control box and then rotate
the rear upward until the two retaining
latches lock into place.
Hid=Level Lighting Light Bulb Remova|
Upper Level Lighting
The upper level lighting comes on automatically
when the door is opened.
To replace the light bulbs:
To disconnect power to the unit, unplug the
unit or switch the breaker that supplies power
to the unit to the off position. Replace the old
.......bu!b w!th a bu!b of the same wattage: ...............................................
1. To replace the light bulb, turn the
temperature control to OFF and unplug the
electrical cord.
.........................................
