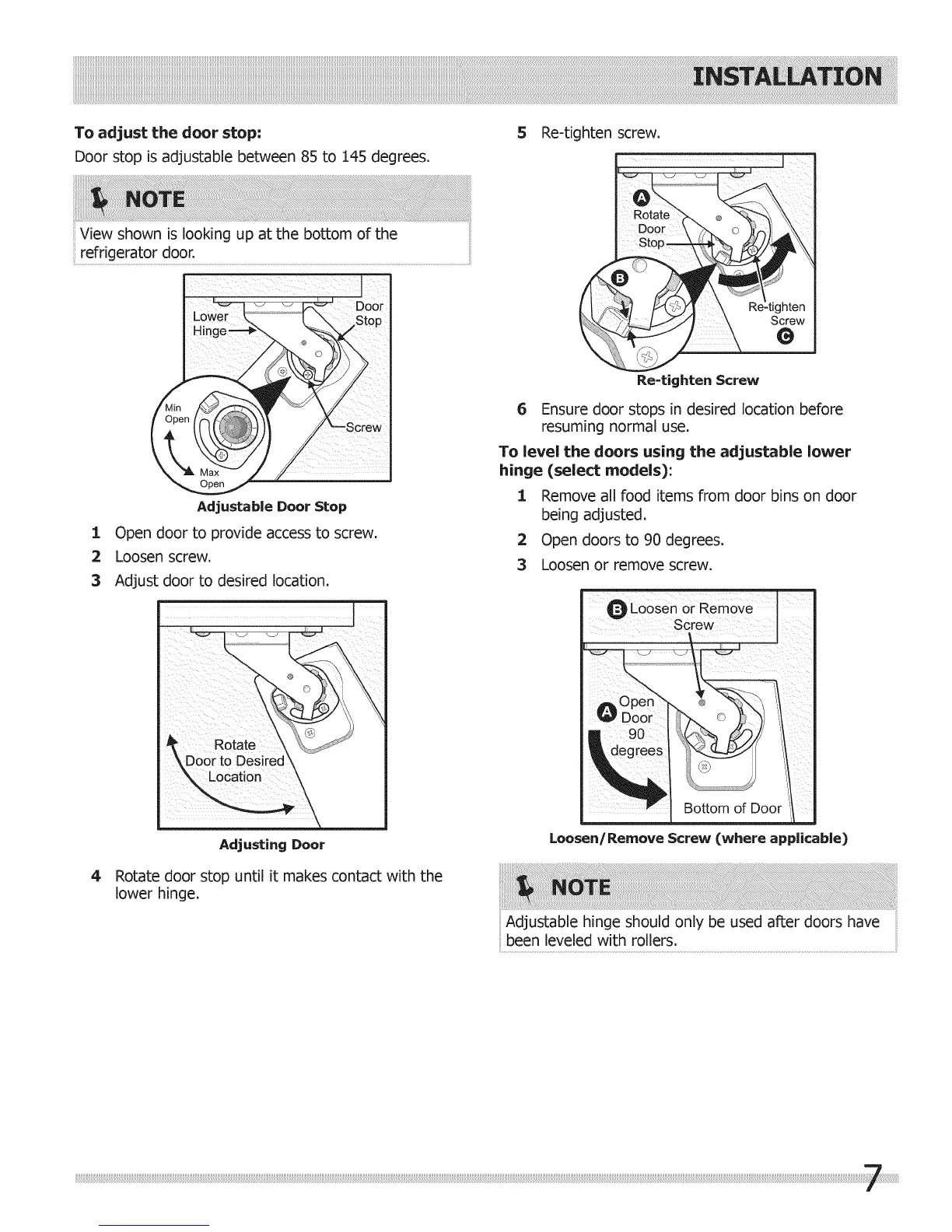

To adjust the door stop:
Door stop is adjustable between 85 to 145 degrees.
View shown is looking up at the bottom of the
Adjustable Door Stop
I Open door to provide access to screw.
2 Loosen screw.
3 Adjust door to desired location.
5 Re-tighten screw.
Re-tighten Screw
Screw
0
6 Ensure door stops in desired location before
resuming normal use.
To level the doors using the adjustable lower
hinge (select models):
1 Remove all food items from door bins on door
being adjusted.
2 Open doors to 90 degrees.
3 Loosen or remove screw.
O Loosen or Remove
sCrew
©
4
Adjusting Door
Rotate door stop until it makes contact with the
lower hinge.
Bottom of Door
Loosen/Remove Screw (where applicable)
Adjustable hinge should only be used after doors have
been leveled with rollers,
